• Model NO.：COLO-2447
• Condition：New
• Model No.：FF-3127
• temperature：180-250 Degree
• Outer Case：Baking Paint for Metal
• Controlling Mode：Mechanical Timer Control
• Usar：Pintura Electrostatica
• Voltaje：220V,380V
• Power Supply：Electric
• Size：W1.2*H1.7*L3.2m
• Warm Board：Thinkness:100-150mm
• Usage：Bake
• Transport Package：Bulk
• Specification：1200width x 1700 height x3200 depth
• Trademark：F&F
• Origin：Zhejiang Hangzhou
• HS Code：8417809090
• Production Capacity：50sets,Months

Basic Info.

Model NO. COLO-2447 Condition New Model No. FF-3127 temperature 180-250 Degree Outer Case Baking Paint for Metal Controlling Mode Mechanical Timer Control Usar Pintura Electrostatica Voltaje 220V/380V Power Supply Electric Size W1.2*H1.7*L3.2m Warm Board Thinkness:100-150mm Usage Bake Transport Package Bulk Specification 1200width x 1700 height x3200 depth Trademark F&F Origin Zhejiang Hangzhou HS Code 8417809090 Production Capacity 50sets/Months

Product Description

Electric Manual Powder Coating Painting Oven

Application for powder coating process, used to heat the metal work-piece after powder sprayed.
Model: COLO-2447
Working size(mm): 1200width x 1700 height x 3200 depth
Heating by electricity

Features
1 with front and back doors, top conveyor system, easy to loading objects
2 Heat spreads equally in the oven thanks to the circulation fan motor
3 Control Panel to set heating temperature and heating time.


Technical Data of the Powder Coating Oven:

Model	Colo-3127
Worksize dimensions	1200width x 1700 height x 3200 depth
Overall dimensions	1400 width  x 2200 height x 3400 depth
Power supply	Electric/ kw
Voltage/Frequency	380V/220v(50-60hz)
Warm-up time	15-30 min. (180° C)
Temperature stability	< ± 1-3°C
Temperature max.	250° C
Ventilation performance	m3/h
Motor power	2.2kw
Warranty	12 months

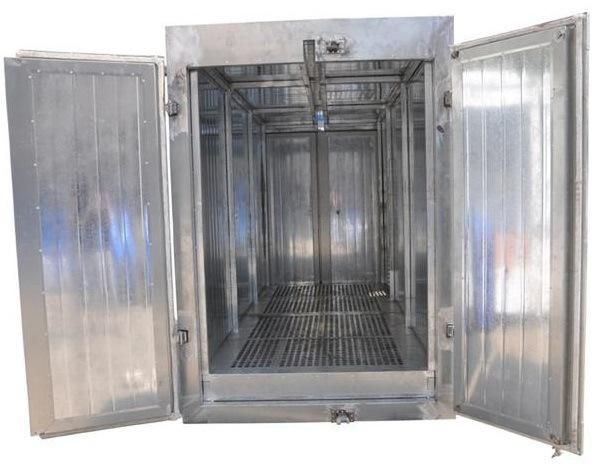

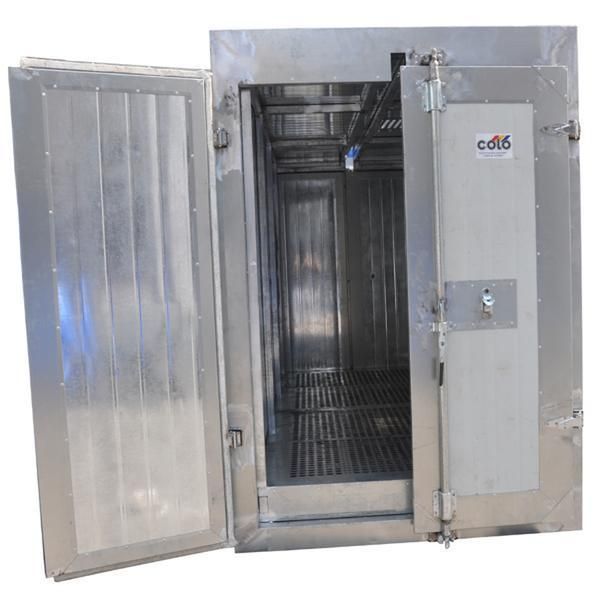

More pictures of Electric Manual Powder Coating Oven with Top Conveyor

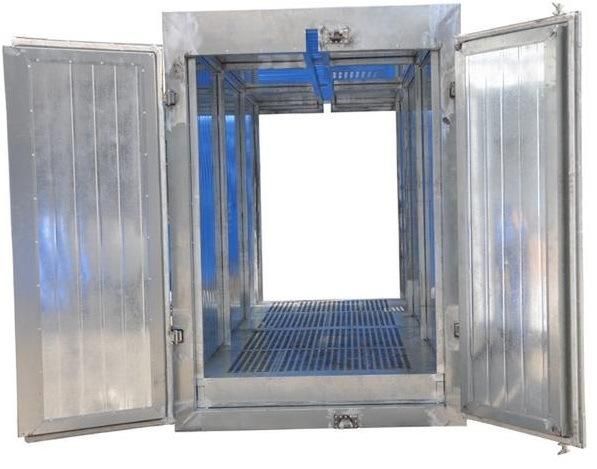

Inner View :with high quality rock wool board thickness=100mm, and top track rail to load the objects

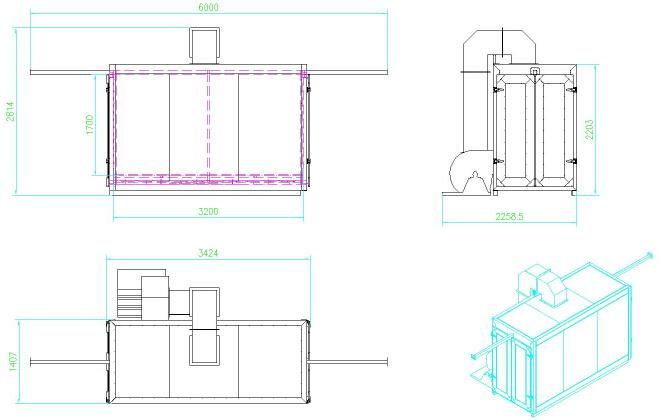

The Drawing for COLO-2447


Why choose us:
1.   More than 10 years manufacturing experience in whole powder coating and powder painting line
2.   Afford one-stop service :reseach ,development design ,production,abroad installation, after  sale  service.
3.   Customed as you want.
4.   Competitive price: we are factory.Design, produced ,installed all by ourself-save cost
5.   One year of warranty period and life long technical support.
6.   Market share in Global: about 90%, is a leading factory in this filed.

Contact us for more product detail
