Colo 191d Electrostatic Powder Coating Equipment with Spray Gun
Hangzhou Feifu Import and Export Co., Ltd.- After-sales Service：12 Moths
- Warranty：12 Moths
- Type：Powder Coating Machine
- Coating：Powder Coating
- Substrate：Iron
- Certification：CE, ISO
Base Info
- Model NO.：COLO-191S
- Condition：New
- Brand：Colo
- Packaging：Carton,Wood Case
- Dilivery：2days After Depoist
- After Sales Services Provided：Engineer Ia Available
- Power Range：220V
- Frequency：50Hz
- Operational Method：Manual
- Packing Dimension：690mmw*800mmh*1135mmd
- Packing Weight：45kg
- Transport Package：Carton
- Specification：CE ISO
- Trademark：COLO
- Origin：Zhejiang Hangzhou
- HS Code：8424899990
- Production Capacity：100sets,Month
Description
Basic Info.
Model NO. COLO-191S Condition New Brand Colo Packaging Carton/Wood Case Dilivery 2days After Depoist After Sales Services Provided Engineer Ia Available Power Range 220V Frequency 50Hz Operational Method Manual Packing Dimension 690mmw*800mmh*1135mmd Packing Weight 45kg Transport Package Carton Specification CE ISO Trademark COLO Origin Zhejiang Hangzhou HS Code 8424899990 Production Capacity 100sets/MonthProduct Description

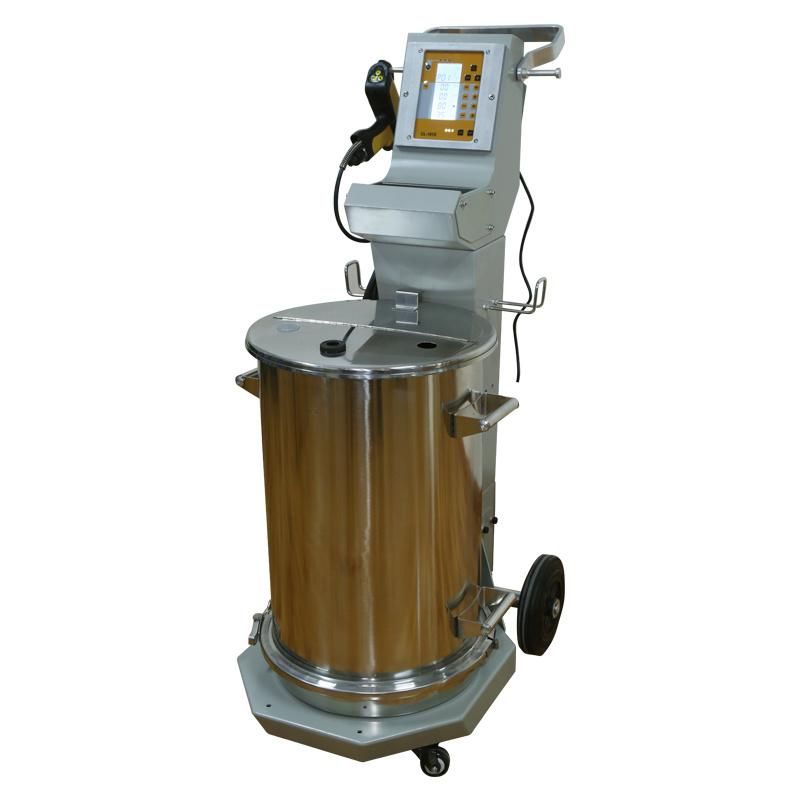

Electrostatic Powder Coating Equipment for Alloy WheelModel: COLO-191S HOPPER TYPE
Application: coating car wheels and other car accessories
Delivery: 3 working days
Warranty: 1 year
Excellent features of Powder Coating1.Tought and Durable 2. Environmental protection, not cause pollution3. High usage of coating material4. Corrosion resistence, aging resistance.5.High efficiency and perfect coating effect.

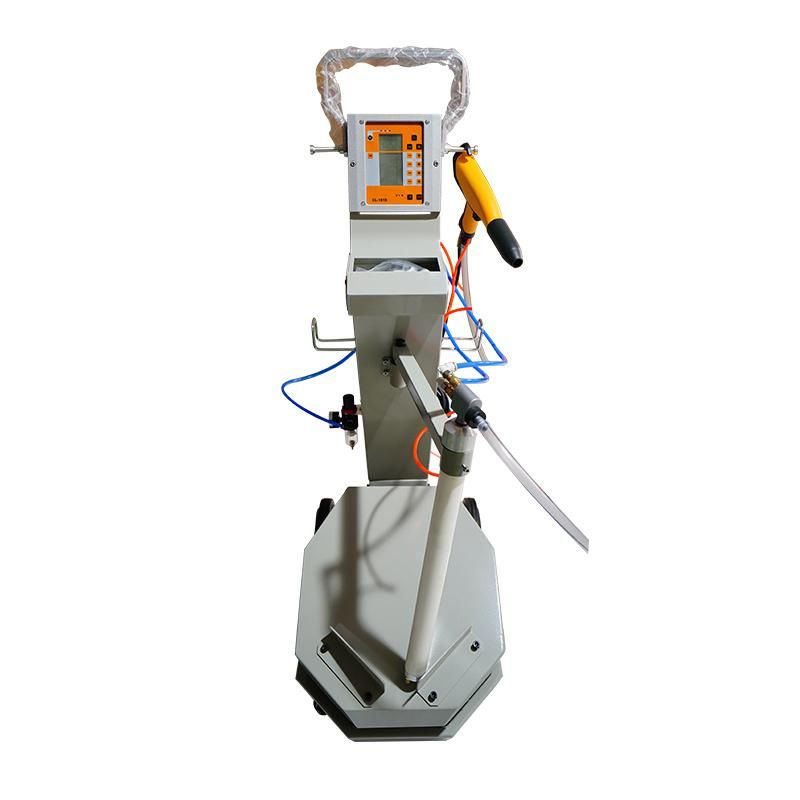

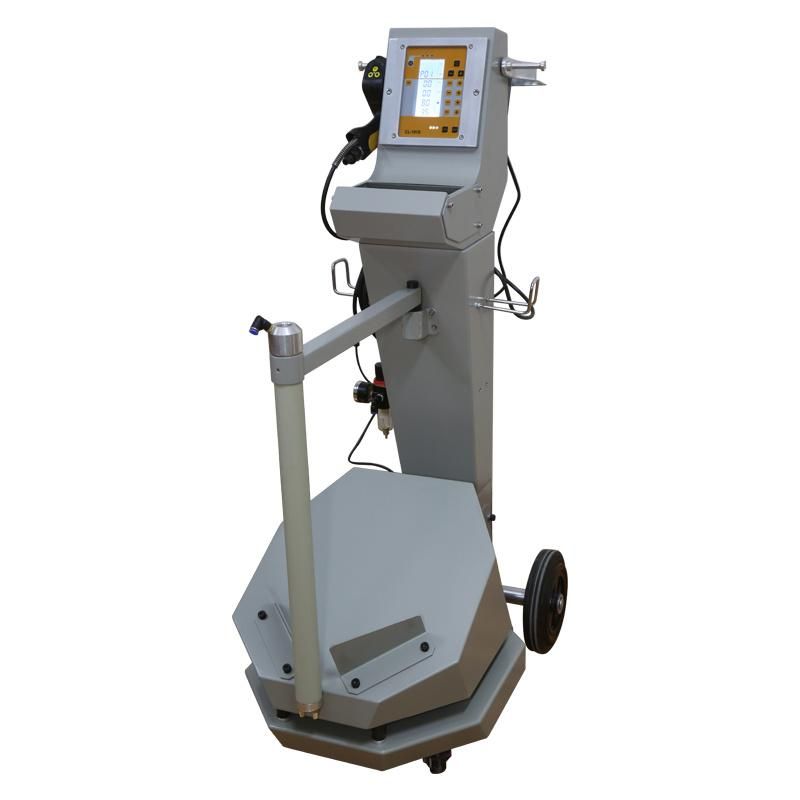

COLO-191S -structure
1 control unit 2 Manual powder gun
3 injector 4 Mobile frame with hand rail
5 Fluidized powder hopper 6 Powder filler flap
7 Swivel wheel 8 Filter unit
9 Gun holder 10 Shelf
11 Hose holder 12 Hose holder
13 Rubber wheel

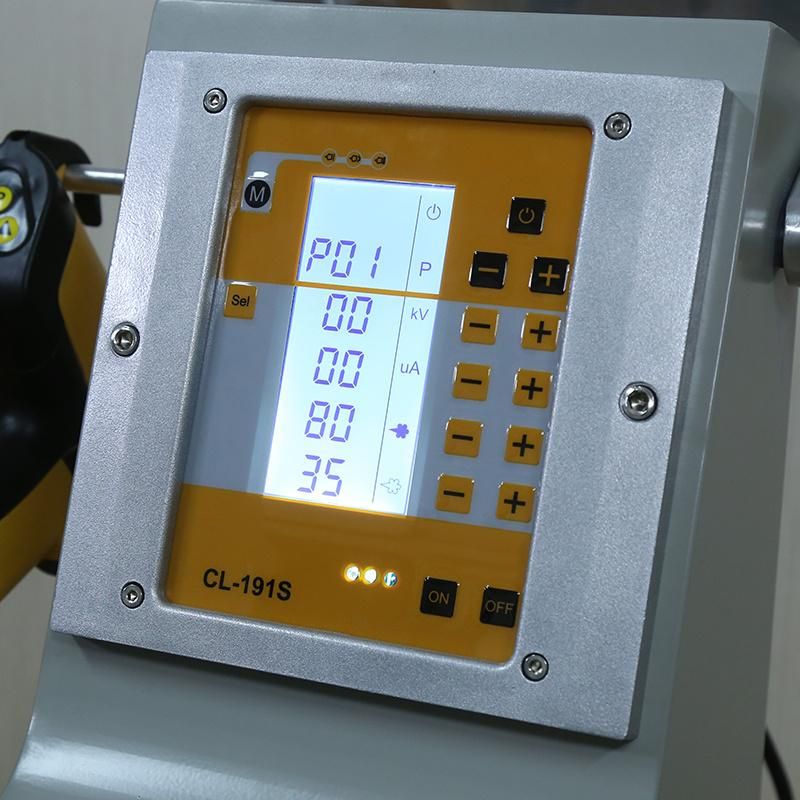

Control Unit: with preset function: 1 repeat coating. 2.Corner Coating 3.Flat Coating.
Technical Specifications
Electrical Data
| MODEL | FF-191SD |
| Gun Weight | 500G |
| Rated output voltage | 24VDC |
| Input voltage | -200KV |
| Maximum output current | 180Ua(max) |
| Maximum output voltage | 0-100K(adjustable) |
| Maximum powder injection | 600g/min |
| Polarity | negative |
| Maximum input-air pressure | 10kg/cm |
| Optimum input-air pressure | 6kg/cm |
| Optimum input-air pressure | 4kg/cm |
| Maximum water vapor content or compressed air | 1.4g/N m3 |
| Maximum oil vapor content of compressed air | 0.1ppm |
| Maximum compressed-air consumption | 13.2 m3/h |
| Temperature range in use | -10 ºC+50 ºC |
Direct Box Feed type or Electrostatic Powder Coating Equipment for Choice
COLO-191S-B
More details, contact with us
