• CNC System：Hypertherm
• Core Components：Bearing, Pump, Gear, Motor, Gearbox
• Effective Cutting Width：6.2 Meter
• Lead Time：20 Days
• Transport Package：Export Standards
• Specification：7x35 meter , 23x115 feet
• Trademark：Fengwei
• Origin：China
• HS Code：84569090
• Production Capacity：30 Sets,Month

Basic Info.

CNC System Hypertherm Core Components Bearing, Pump, Gear, Motor, Gearbox Effective Cutting Width 6.2 Meter Lead Time 20 Days Transport Package Export Standards Specification 7x35 meter / 23x115 feet Trademark Fengwei Origin China HS Code 84569090 Production Capacity 30 Sets/Month

Product Description

Product Description

CNC Flame & Plasma Cutting Machine, also known as Gantry-type Flame & Plasma Cutting Machine, is effectively used to cut Metal Work Pieces into random shape with over 6-mm thickness

The machine consists following features:

1. Both driving end and cross beams adopt box-beam welding structure whose stress has been relieved, it features compact structure, light weight, good rigidity, small deformation and artistic appearance.

2. The driving of the main longitudinal end beam and moving of transverse torch adopts Japan Panasonic servo driver and motor which drives Japan SHIMPO reducer through rack-and-pinion gearing.

3. The side of driving end beam equipped with horizontal guiding wheels which can make the guiding wheel press rail tightly by adjusting its eccentric shaft to ensure the stability and accuracy.

4. The longitudinal guide rails are all made by high intensity track, all the contact surface of track has
precision machining and accurate grinding racks are installed outside the guide way.

5. The longitudinal guide rails are firmed by pressing plate backing board and connecting sleeve, which can ensure the longitudinal straightness and parallelism of rail.

6. Automatic igniter and height controller of torch can be chosen according to customer's requirement,
with convenient operation.

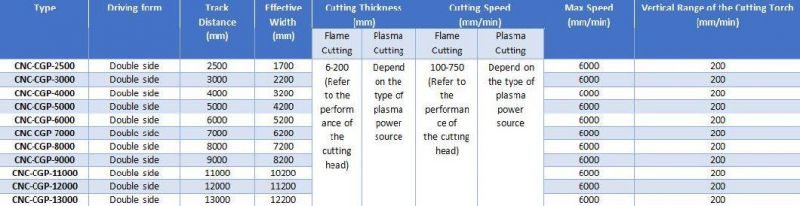

Technical Parametre
