Compression Spring Making Machine with 2 Axis Lkx230
Guang Dong LI KE XING Spring Machinery Technology Co., Ltd.- Control Type：Automatic
- Axis Count：2 Axis
- Warranty：1 Year
- Servo Motor：SANYO
- Certification：Ce & ISO 9001
- Transport Package：Wooden Case
Base Info
- Model NO.：LKX230
- Specification：1300*1300*1600MM
- Trademark：LIKEXING
- Origin：Made in China
- HS Code：8463300000
- Production Capacity：500sets,Year
Description
Basic Info.
Model NO. LKX230 Specification 1300*1300*1600MM Trademark LIKEXING Origin Made in China HS Code 8463300000 Production Capacity 500sets/YearProduct Description
PRODUCT DESCRIPTION

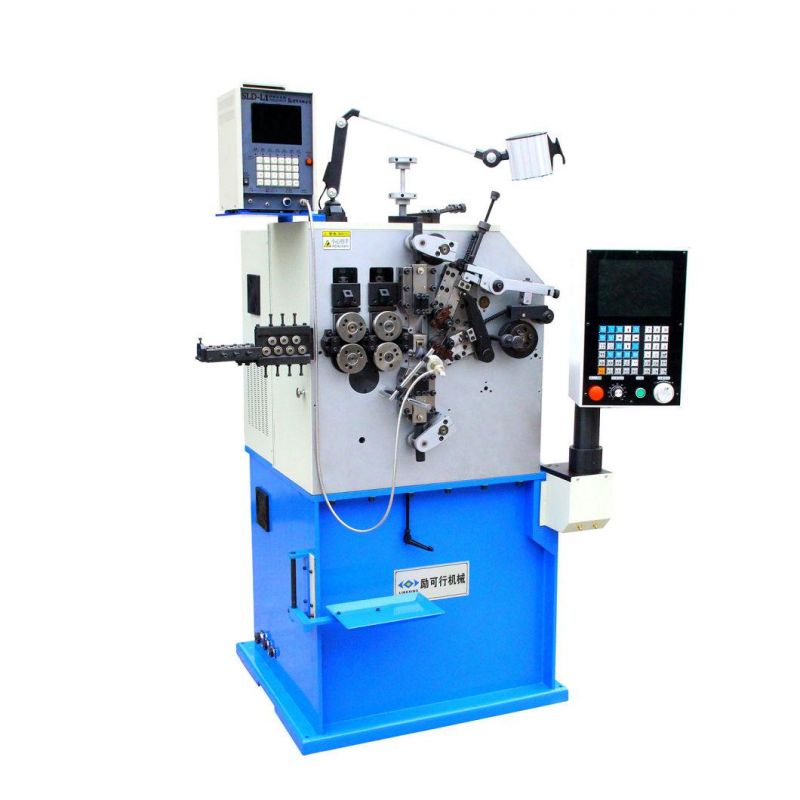

LKX230 Computer Compressing Spring Machine is equipped with imported Japanese Servo Motor, including cam axis and feeder axis.High synchronization accuracy, Power-full and precise in wire feeding.
Suitable for producing Compression spring
8inch digital touch screen with touch buttons, easy to use.
In High speed processing, when the motor is voerheating, the cumputer can detect and slow down to protect the motor itself automatically.
Can reduce or increase the production capacity at any time.
TECHNICAL PARAMETER
| Model | LKX230 |
| Wire diameter (mm) | Ø1.0~Ø3.0 |
| Axis Count | 2Axis |
| Max feeding Length | unlimited |
| Servo motor of wire feed (kw) | 4.5 |
| Servo motor of cam (kw) | 2.7 |
| The Fastest Speed | 250pcs/min |
| The Feeding Wire Speed | 6000m/min |
| Max Outside Diameter | 70mm |
| Machine size(mm) | 1300×1300×1600 |
| Weight (Kg) | 1200 |
| Power | 200V 3-Phase |
