• X Y Drive System：Rack and Pinion Drive, Hiwin Linear Rails
• Z Drive System：Ball Screw, Hiwin Linear Rails
• Drive Mode：Stepper or Servo
• Working Voltage：AC380V,50Hz
• Positioning Accuracy：0.03,300mm
• Connecting Way：USB Interface
• Plasma Power Source：Hypertherm, Huayuan
• Cutting Thickness：1-50 mm
• Plasma Table：Knief Table Surface
• Control System：Starfire Control System
• Software：Starcam
• Power Supply：63A,100A,120A,160A,200A
• Key Words：Plasma Cutting Machine

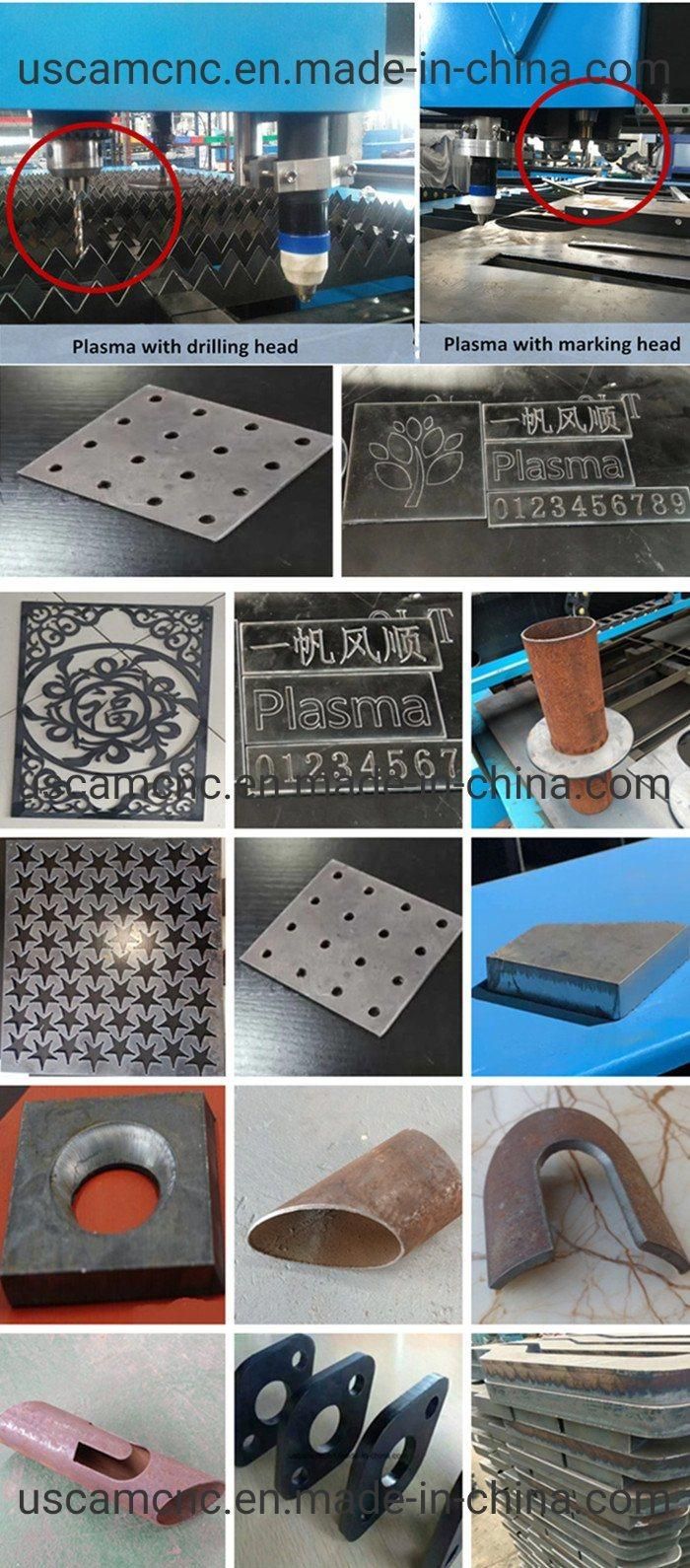

• Function：Cutting, Marking, Drilling
• Materials：Metal Carbon,Mild,Stainless Steel, Aluminium
• Transport Package：Plywood Package
• Specification：Depend On plasma type
• Trademark：USCAM
• Origin：Jinan City
• HS Code：8456901000
• Production Capacity：500,Month

ItemUnitModelsLGK-63IGBTLGK-100IGBTLGK-120IGBTLGK-200IGBTLGK-300IGBTLGK-400IGBTInput  PowerV/Hz3~  380V± 15%    50/60  HzRated  Input  capacityKVA9.517.822.238.870.193.5Rated  Input  CurrentA14.5273471100138Rated  Open  Circuit  VoltageV300300300315380380Rated  Cutting  CurrentA63100120200300400Rated  Cutting  VoltageV106120128160200200Current  Adj  RangeA30~6330~10030~12040~20060~30060~400Max  Cut  Thickness(Steel)mm254045658090Quality  Cutting  Thickness
(Steel,  hand-held)mm0.3~120.3~220.3~251~451~501~50Quality  Cutting  Thickness
(Steel,   machine)mm61215253540Plasma  gas-Compressed  AirAir  PressureMpa0.3~0.50.45~0.60.45~0.6Output  Signal  of  Arc  Voltage-1: 1  /  1: 20  1: 50  /  1: 100 Arc  VoltageCutting  Torch  Cooling  Mode-Air  coolingAir  cooling/Water  coolingRated  Duty  Cycle%60/40° C100/40° CInsulation  Grade-FProtection  Grade-IP21SDimensions(L× W× H)mm585x280x485695× 320× 580800× 380× 810890× 420× 900Power  Source  N. W.Kg26515282140145

1. Lead time: Within 7-12 working days after receiving payment.

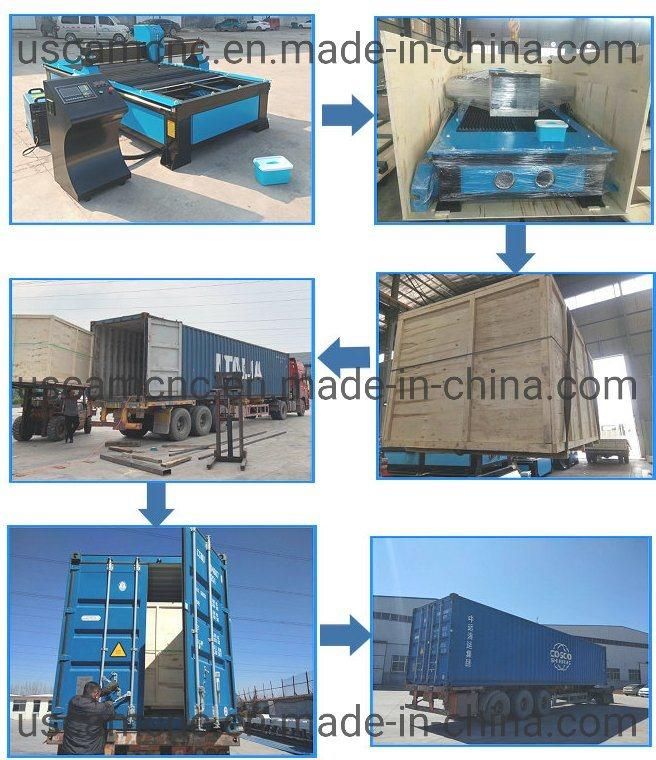

2. Packing: All machines are packed with standard inner plastic wrap and outer plywood case.

The inner package would be helping to tight all the small parts in the package. And the plywood is firm enough to protect the cnc router during shipping.


                                            After-sales Services
1. 12months-quality guarantythe machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period without human damage.
2. Free training course at our plant.
3. We will provide the consumable parts at an agency price when you need replacement.
4. 24 hours on line service each day, free technical support.
5. Our staff can be sent to your company to install or adjust if necessary.
6. User-friendly English manual and video CD for machine using and maintaining
7. My company English software can do all kinds of pattern recognition,software upgrading and updating free
