• Model NO.：4040
• Certification：CCC, CE
• Warranty：12 Months
• Customized：Customized
• Condition：New
• Drive Mode：Servo
• Transport Package：Standard Exported Plywood Case
• Specification：CE
• Trademark：GJH
• Origin：Shandong China
• HS Code：84609090
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. 4040 Certification CCC, CE Warranty 12 Months Customized Customized Condition New Drive Mode Servo Transport Package Standard Exported Plywood Case Specification CE Trademark GJH Origin Shandong China HS Code 84609090 Production Capacity 50 Sets Per Month

Product Description

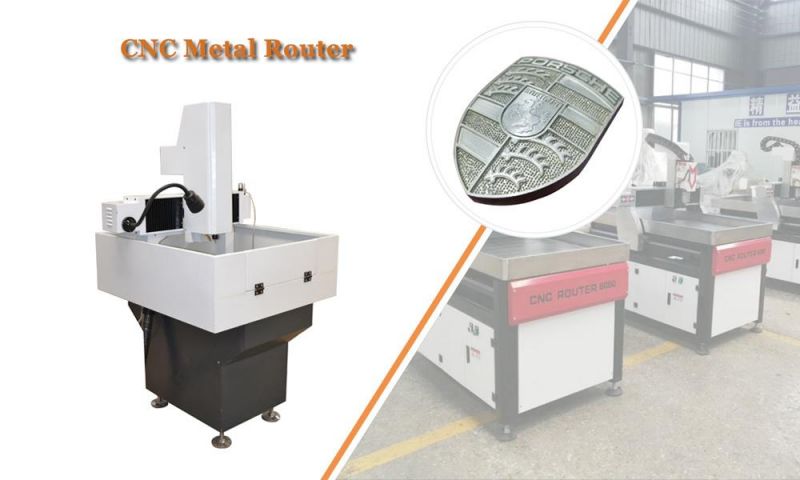

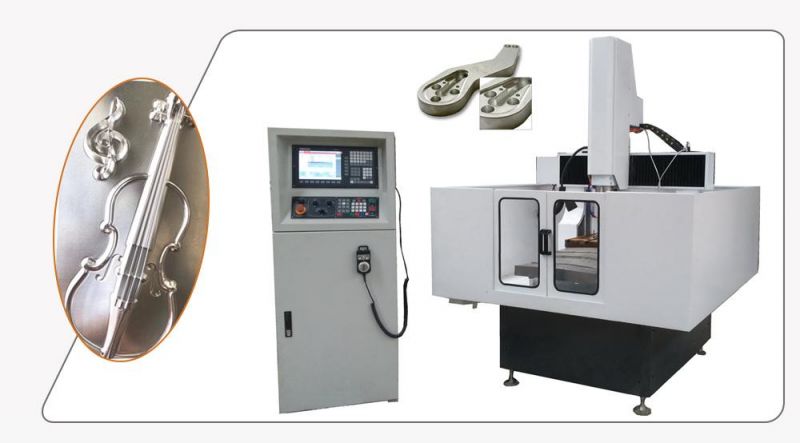

CNC Router 6060/4040

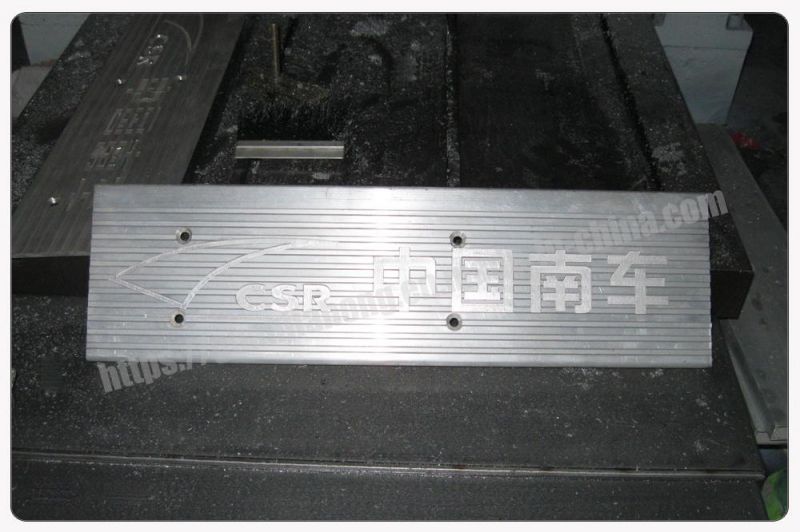

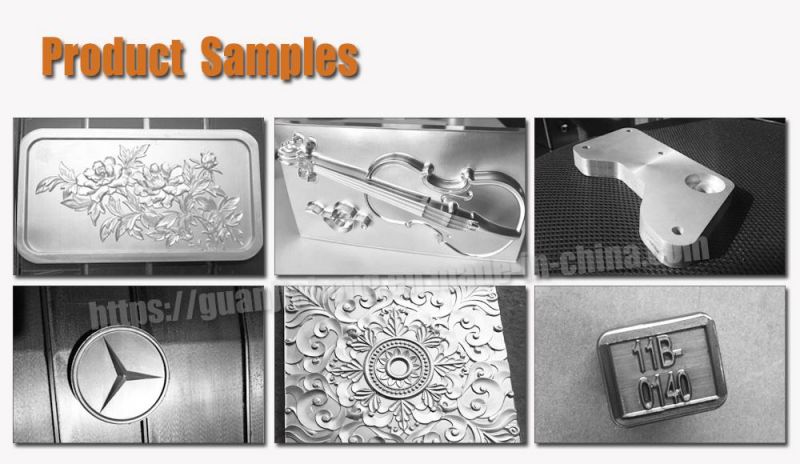

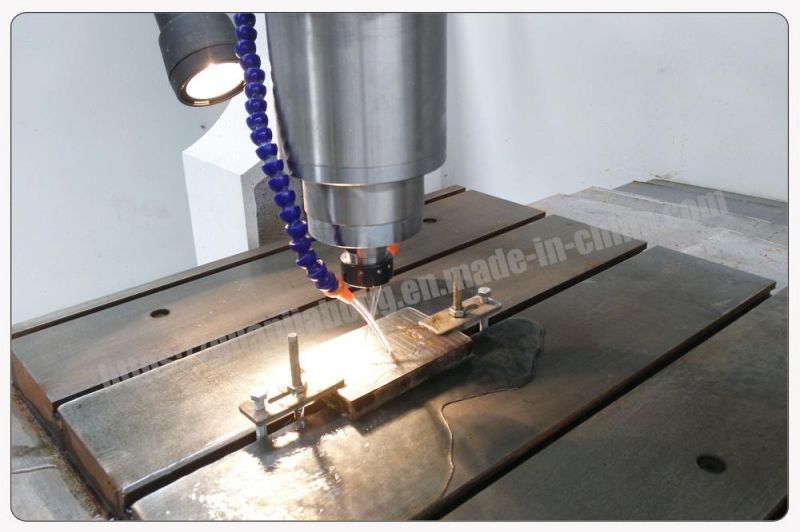

Metal CNC Engraving Machine for Aluminum, copper, iron and other metal materials

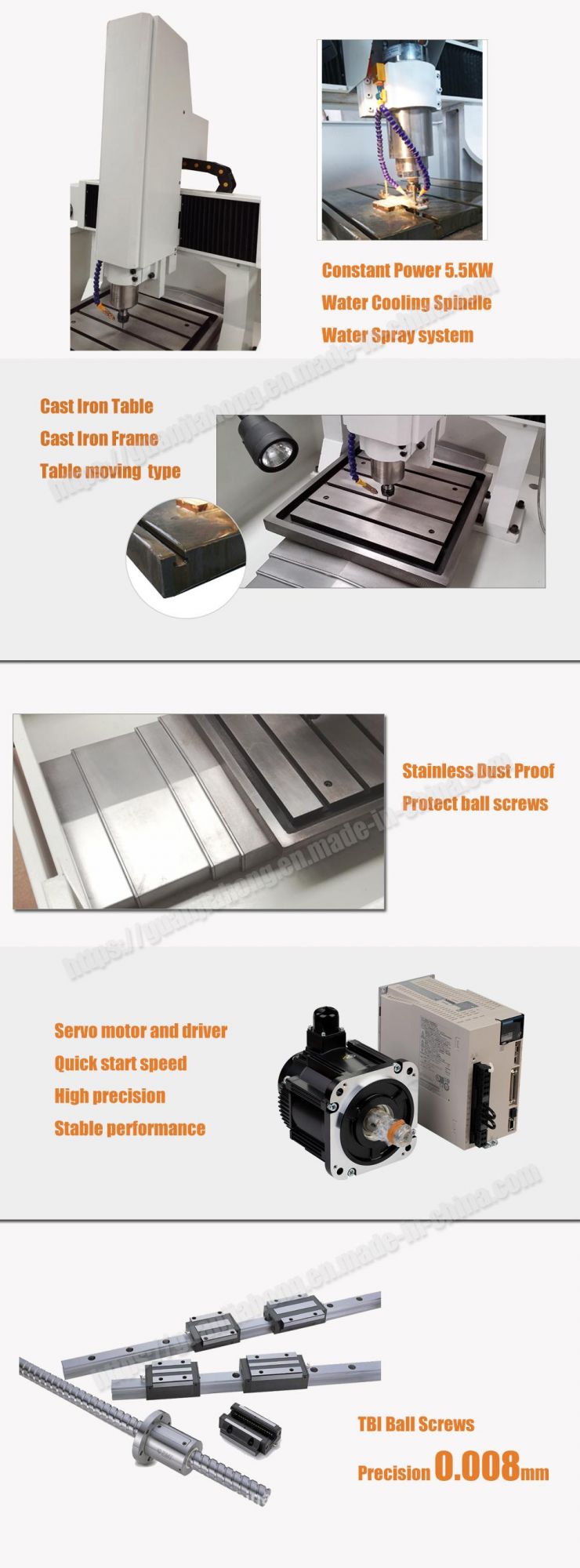

  Feature
1.Iron cast body and table with high accuracy.
2.XYZ driver system is servo motor and driver, the best driver system in the world.
3.XYZ use ball screw and linear square rails, positioning accuracy is 0.01mm.
4.Gantry fixed and table moving design, make machine faster and more precise.
5.High speed constant power spindle, make produce fine more detail.
6.Automatic oil feeding system make the machine keep precise and long life
7.NC studio or SYNTEC CNC controller, more performance, more stable.
















  Technical Parameter

	Performance	Performance	Parameter
1	Working area	X axis	400mm
		Y axis	400mm
		Z axis	200mm
2	Table size		450mm*450mm
3	Accuracy	Working accuracy	0.008mm
		Re-positioning accuracy	0.005mm
4	Drive	X axis	Ball Screws
		Y axis	Ball Screws
		Z axis	Ball Screws
5	Speed	Max travel speed	8000mm/min
		Max engraving speed	5000mm/min
6	Spindle(water-cooling)	Spindle power	5.5KW (as your request)
		Spindle speed	0_24000r/min
7	Running mode		Servo
8	Working voltage		AC220V/50HZ
9	Command code		G code
10	Operating system		NC STUDIO

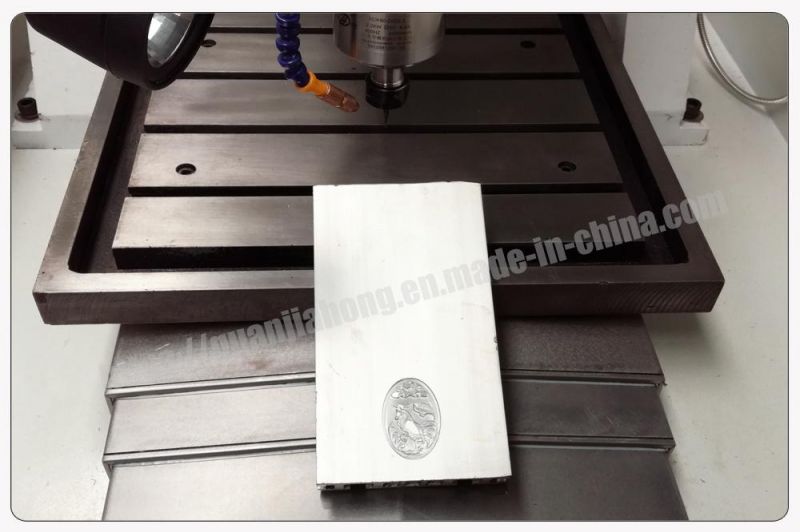

11	Table		T-slot Cast Iron Table
12	Dustproof		XYZ axis
13	Machine weight		1000KGS
14	Machine size		1400*1300*2000mm

      Model 6060
















1.Technical support by call, email or whats app
2. Friendly English version manual.
3. Engineer available to service machine overseas. Buyer should pay the fee.
4. Warranty period: 1 year for the whole machine and 6 months for spindle
5. Machine will be adjusted before dispatch.
6. Free training course in our factory.
7. Free suggestion and consulting, lifetime technical support .

6060/4040 Metal engraving machine, Metal CNC router
If you have specific request about metal mold cnc router machine,please contact with us.
Customization is available.
