• Model NO.：QC12K,Y 8*3200mm
• Dimension(L*W*H)：3860*1700*1700
• Weight：7200kg
• Warranty：12 Momthes
• Main Motor( Kw)：7.5
• Place of Origin：Anhui, China (Mainland)
• Voltage：380V,220V,415V
• Rated Power(Kw)：15
• After Sale Service Provided：Overseas Third-Party Support Available
• Product Name：Hydraulic Metal Sheet Cutter Machine
• Color：Optional
• Transport Package：with Plasic Bag or According to The Customers′ Req
• Specification：3860*1700*1700
• Trademark：Hydraulic Metal Sheet Cutter Machine , Hydraulic G
• Origin：China
• HS Code：8462399000
• Production Capacity：50sets, Monthes

Basic Info.

Model NO. QC12K/Y 8*3200mm Dimension(L*W*H) 3860*1700*1700 Weight 7200kg Warranty 12 Momthes Main Motor( Kw) 7.5 Place of Origin Anhui, China (Mainland) Voltage 380V/220V/415V Rated Power(Kw) 15 After Sale Service Provided Overseas Third-Party Support Available Product Name Hydraulic Metal Sheet Cutter Machine Color Optional Transport Package with Plasic Bag or According to The Customers′ Req Specification 3860*1700*1700 Trademark Hydraulic Metal Sheet Cutter Machine / Hydraulic G Origin China HS Code 8462399000 Production Capacity 50sets/ Monthes

Product Description

QC12K Series CNC Swing Beam Hydraulic Sheet Metal Shearing Machine for Sale

Optional Controllers:
China ESTUN E21S,E200S
Holland DELEM DAC310
German ELGO P40
Italy HT071

QC12Y Series Digital swing Beam Shear
Standard system: Shenzhen Sanyuan E18(MD11)
Optional Digital System: China ESTUN E10S

Equipments for QC12Y&QC12K
China Taifeng Hydraulics
German BOSCH Hydraulics
Oil Pump
Pipe Connectors
China Gear Pump
BOSCH Pump
Manual Blades gap Adjust Wheel
Angle Measure
Electrics
Light Guards
Ball Screw Linear Guide
Backgauge Pneumatic Support
QC12Y Features
The machine is metal plate welded structure, with hydraulic transmission and accumulator return, typical of an easy operation, reliable performance, and nice appearance, fitted with digital controller.
Indication by indicator is provided for adjustment of blades clearance, for a handy and prompt adjustment.
Alignment device with lighting and control device for shearing stroke are set.
Worktable with balls for material feeding convenient, to minimize fish tail with sheet bar and to reduce frictional resistance.


QC 12K Features
The machine is fitted with CNC controller special for shearing machines.
The position of rear stopper is displayed in real-time manner.
Multi-step programming function is available and the rear stopper is able for automatic operation and continuous positioning, to achieve an automatic adjustment for position of rear stopper.
It is provided with counting function for shearing, to display the shearing numbers in a real-time manner, able for power-failure memory of position of rear stopper, procedures, and parameters.
Backgauge with precision ball screw and linear guide, to ensure the positioning precision, so that bring the higher precision prcsessing.

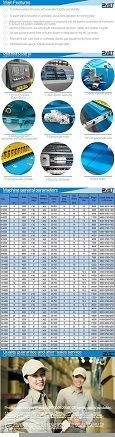

QC12K Series Technical Parameters

Controller System
DAC310
Bright LCD 128×64 display
Backguage control, Gap control, Stroke length limitation.
Actual and programmed position visualization, Stock counter,
Programmable up to 100 steps.
Panel-based housing;
Servo control/unipolar/AC two-speed control;
mm/inch transmission;

E200S
Backguage control, bus mode control servo system;
Stroke length limitation, double pragrammable digital output;
Pragram memory of up to 40 program, up to 25 steps per program;
One side positioning, retract of function.
mm/inch transmission, Chinese/English transmission;
240×128 pixels LCD display.

E21S
Backguage control, control for general AC motor, frequency inverter;
Intelligent positioning, double programmable digital output;
Stock counter, program memory of up to 40 programs, up to 25 steps per program;
One side positioning, retract of function.
One key backup, restore of parameters;
mm/inch transmission, Chinese /English Transmission; LCD display.

P40
Analog or digital outputs for 1-3 speed operation 16 free programmable digital in-/outputs
Program memory(1000 sets)
Angle control/gap control/backguage
Limitation of the cutting length
Material List for angle and gap control

HT071
Regulated power supply for encoder or push pull/o.c.
optional line 12 Vdc±5% 120 mA
Optoisolated inputs
High luminosity led display having 6 digits plus sign for position,
2 digits fpr cycles and for programs.
Possibility to save up to 99 programs composed of 20 cycles.
Each cycle can count 65000 repetitions at maximum
Data and programs are saved in a flash memory without floating battery Ip 65, polycarbonate, water and abrasion-proof keyboard with tactile sensitivity.

China ESTUN E10S
X axis and Y axis position display;
Resolution:0.1mm or 0.0001 inch;
Stock counter, 2 timer integrated;
One side positioning indication;
Sofware limitation;
Power-off memorization.

QC12K Series CNC Swing Beam Shear

Optional Controllers:
China ESTUN E21S,E200S
Holland DELEM DAC310
German ELGO P40
Italy HT071

QC12Y Series Digital swing Beam Shear
Standard system: Shenzhen Sanyuan E18(MD11)
Optional Digital System: China ESTUN E10S

Equipments for QC12Y&QC12K
China Taifeng Hydraulics
German BOSCH Hydraulics
Oil Pump
Pipe Connectors
China Gear Pump
BOSCH Pump
Manual Blades gap Adjust Wheel
Angle Measure
Electrics
Light Guards
Ball Screw Linear Guide
Backgauge Pneumatic Support
QC12Y Features
The machine is metal plate welded structure, with hydraulic transmission and accumulator return, typical of an easy operation, reliable performance, and nice appearance, fitted with digital controller.
Indication by indicator is provided for adjustment of blades clearance, for a handy and prompt adjustment.
Alignment device with lighting and control device for shearing stroke are set.
Worktable with balls for material feeding convenient, to minimize fish tail with sheet bar and to reduce frictional resistance.


QC 12K Features
The machine is fitted with CNC controller special for shearing machines.
The position of rear stopper is displayed in real-time manner.
Multi-step programming function is available and the rear stopper is able for automatic operation and continuous positioning, to achieve an automatic adjustment for position of rear stopper.
It is provided with counting function for shearing, to display the shearing numbers in a real-time manner, able for power-failure memory of position of rear stopper, procedures, and parameters.
Backgauge with precision ball screw and linear guide, to ensure the positioning precision, so that bring the higher precision prcsessing.

QC12K Series Technical Parameters

Controller System
DAC310
Bright LCD 128×64 display
Backguage control, Gap control, Stroke length limitation.
Actual and programmed position visualization, Stock counter,
Programmable up to 100 steps.
Panel-based housing;
Servo control/unipolar/AC two-speed control;
mm/inch transmission;

E200S
Backguage control, bus mode control servo system;
Stroke length limitation, double pragrammable digital output;
Pragram memory of up to 40 program, up to 25 steps per program;
One side positioning, retract of function.
mm/inch transmission, Chinese/English transmission;
240×128 pixels LCD display.

E21S
Backguage control, control for general AC motor, frequency inverter;
Intelligent positioning, double programmable digital output;
Stock counter, program memory of up to 40 programs, up to 25 steps per program;
One side positioning, retract of function.
One key backup, restore of parameters;
mm/inch transmission, Chinese /English Transmission; LCD display;


P40
Analog or digital outputs for 1-3 speed operation 16 free programmable digital in-/outputs
Program memory(1000 sets)
Angle control/gap control/backguage
Limitation of the cutting length
Material List for angle and gap control

HT071
Regulated power supply for encoder or push pull/o.c.
optional line 12 Vdc±5% 120 mA
Optoisolated inputs
High luminosity led display having 6 digits plus sign for position,
2 digits fpr cycles and for programs.
Possibility to save up to 99 programs composed of 20 cycles.
Each cycle can count 65000 repetitions at maximum
Data and programs are saved in a flash memory without floating battery Ip 65, polycarbonate, water and abrasion-proof keyboard with tactile sensitivity.

China ESTUN E10S
X axis and Y axis position display;
Resolution:0.1mm or 0.0001 inch;
Stock counter, 2 timer integrated;
One side positioning indication;
Sofware limitation;
Power-off memorization.

Packaging & Shipping
(1)Before packing, the machine tool will be testing for 48 hours to ensure all the equipment is 100% qualitied.
(2)Before loading, stable package, professional and skilled loader reduce damage of product during transport.
(3)After loading, our professional documentary staff will follow the order till the product departs from port.

Our Services
1. Shearing blades and accessories-Customized to your specifications. In our shearing blades, our focus is on first-class, practical, well-thought-out upper and lower tools. Our tools offer solutions to your application cases-even for complex technical ones.

2. Service package
Basic: we offer you rapid trouble shooting through telephone support and costs for on-site missions are reduced.
Special: Engineers available to service machinery overseas for the necessary maintenance.
Partner: Our located dealers or customers who sell or use our machines are fully behind you, they are our friendly partner and supply good advice to you.

3. Technical Service(After-sale service)
Installation and start-up(Available for complex and big machines or if you have demand.
