Forming Spring Wire Bending 3 Axis CNC High Speed Spring Making
Guang Dong LI KE XING Spring Machinery Technology Co., Ltd.- Control Type：CNC
- Axis Count：3 Axis
- Servo Motor：Japan SANYO
- Air Cylinders：Four
- Other：Can Use Probe to Control The Torsion Angle
- Operation：Easily to Learn and Control
Base Info
- Model NO.：LKX835
- Transport Package：Wooden Case
- Specification：1400*1000*1600MM
- Trademark：LIKEXING
- Origin：Made in China
- HS Code：8463300000
- Production Capacity：500sets,Year
Description
Basic Info.
Model NO. LKX835 Transport Package Wooden Case Specification 1400*1000*1600MM Trademark LIKEXING Origin Made in China HS Code 8463300000 Production Capacity 500sets/YearProduct Description
PRODUCT DESCRIPTION

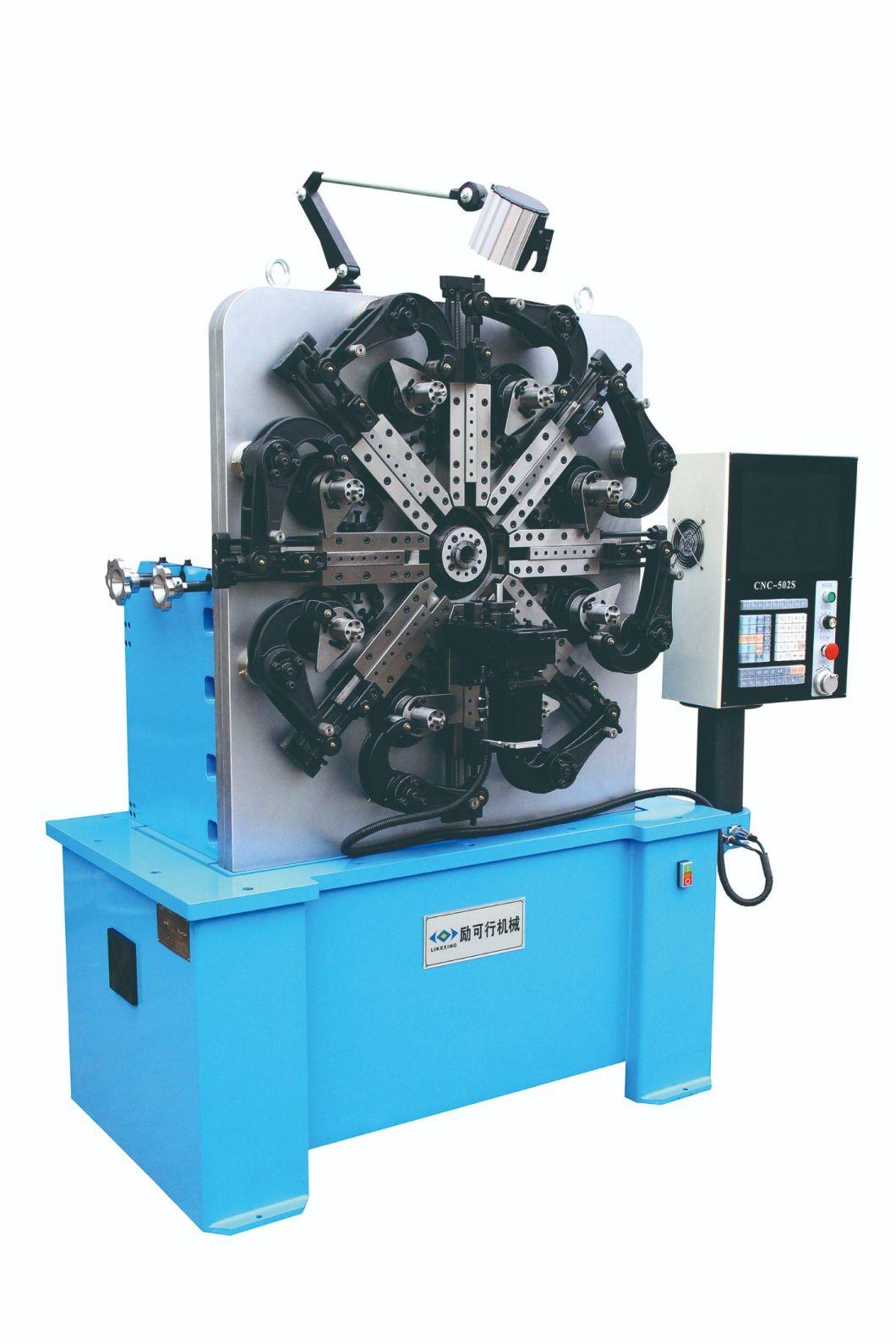

LKX835 Computer Spring Machine is equipped with imported Japanese Servo Motor, also equipped with eight processing sliders , thus can finish all kinds of actions in spring former processing. (e.g: curing, spacing,forming etc.)Suitable for producing Compression, Torsion, Extension, Rectangular Spring Special-shaped or customized spring etc.
10inch human-computer inferface, 502computer,universal operation panel, easy to learn and use.
High synchronization accuracy, Power-full and precise in wire feeding.
Spring former assisted by four air cylinders, also can use the probes to control the angles of the torsion spring.Otherwise,the fully automotic intermittent electronic pump system can ensure the gears' lubrication and maintenance.
TECHINICAL PARAMETER
| Model | LKX835 |
| Wire diameter (mm) | Ø1.0~Ø3.8 |
| Axis Count | 3 Axis |
| Max feeding Length | 999999 |
| Instruction value of wire feed | ±0.01~±9999.99mm |
| Instruction value of cam | ±0.10~±359.90 |
| Servo motor of wire feed (kw) | 1 |
| Servo motor of cam (kw) | 1 |
| Servo motor of Quill Z-axis (kw) | 1 |
| Machine size(mm) | 1400×1000×1600 |
| Weight (Kg) | 1500 |
| Power | 380V 3-Phase |
