• Model NO.：LKX502
• Special Function：Control The Torsion Spring Angle
• Axis：4
• Certificate：Ce
• Transport Package：Wooden Case
• Specification：1200*800*1600MM
• Trademark：LIKEXING
• Origin：Made in China
• HS Code：84633000
• Production Capacity：500sets,Year

Basic Info.

Model NO. LKX502 Special Function Control The Torsion Spring Angle Axis 4 Certificate Ce Transport Package Wooden Case Specification 1200*800*1600MM Trademark LIKEXING Origin Made in China HS Code 84633000 Production Capacity 500sets/Year

Product Description

PRODUCT DESCRIPTION

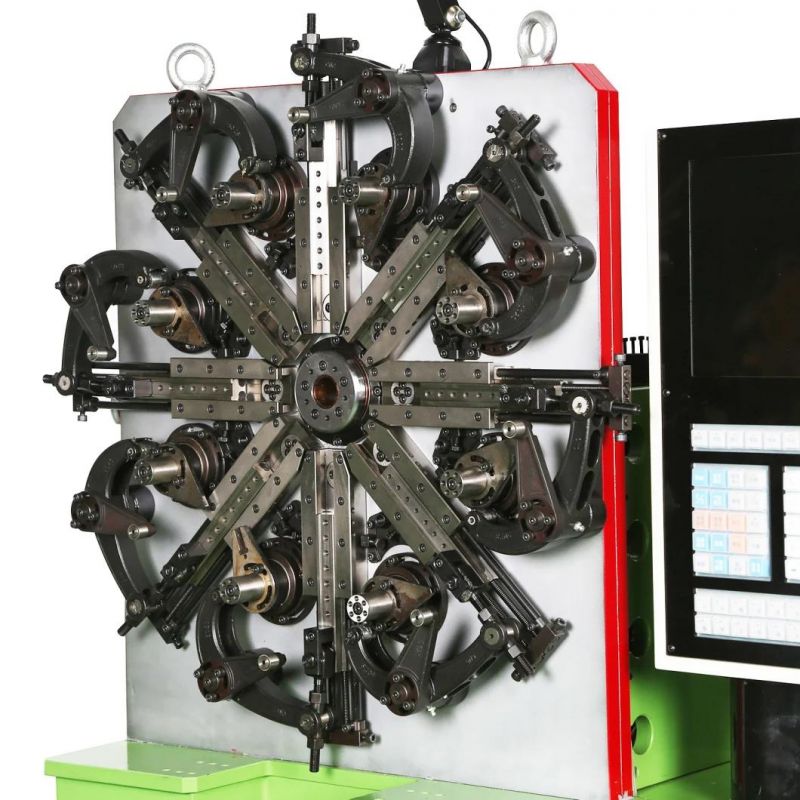

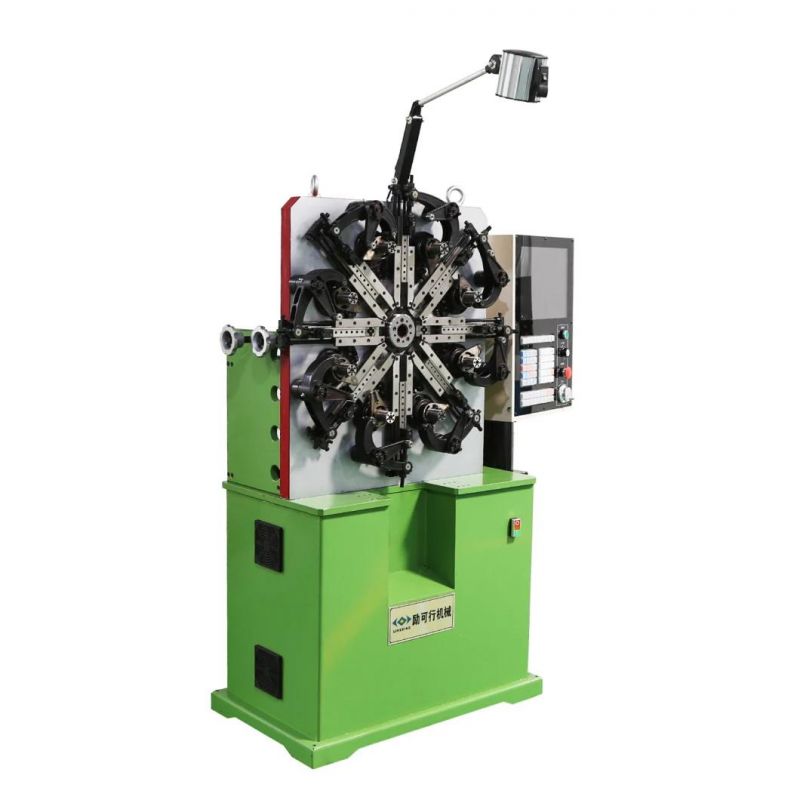

LKX502S  Computer Spring Machine is equipped with  imported Japanese Servo Motor, also equipped with eight  processing sliders , thus can finish all kinds of actions  in spring former processing. (e.g: curing, spacing,forming etc.)
Suitable for producing Compression, Torsion,  Extension, Rectangular Spring Special-shaped or customized spring etc.
10inch human-computer inferface, 502computer,universal operation panel, easy to learn and use.
High synchronization accuracy, Power-full and precise in wire feeding.
Spring former assisted by four air cylinders, also can use the probes to control the angles of the torsion spring.Otherwise,the fully automotic intermittent electronic pump system can ensure the gears' lubrication and maintenance.

TECHINICAL PARAMETER

Model	LKX502
Wire diameter (mm)	Ø0.2~Ø2.3
Axis Count	4Axis
Max feeding Length	999999
Instruction value of wire feed	±0.01~±9999.99mm
Instruction value of cam	±0.10~±359.90
Servo motor of wire feed (kw)	2.7
Servo motor of cam (kw)	2.7
Servo motor of Quill Z-axis (kw)	1
Machine size(mm)	1200×800×1600
Weight (Kg)	800
Power	380V 3-Phase
