• Model NO.：HYJ
• Warranty：24 Months
• Customized：Customized
• Condition：New
• Color：Standard Blue
• Special：as Per Customers′ Requirements
• Delivery Time：Timely
• Transport Package：Container
• Specification：Standard
• Trademark：Datang
• Origin：China
• HS Code：84622910
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. HYJ Warranty 24 Months Customized Customized Condition New Color Standard Blue Special as Per Customers′ Requirements Delivery Time Timely Transport Package Container Specification Standard Trademark Datang Origin China HS Code 84622910 Production Capacity 50 Sets Per Month

Product Description

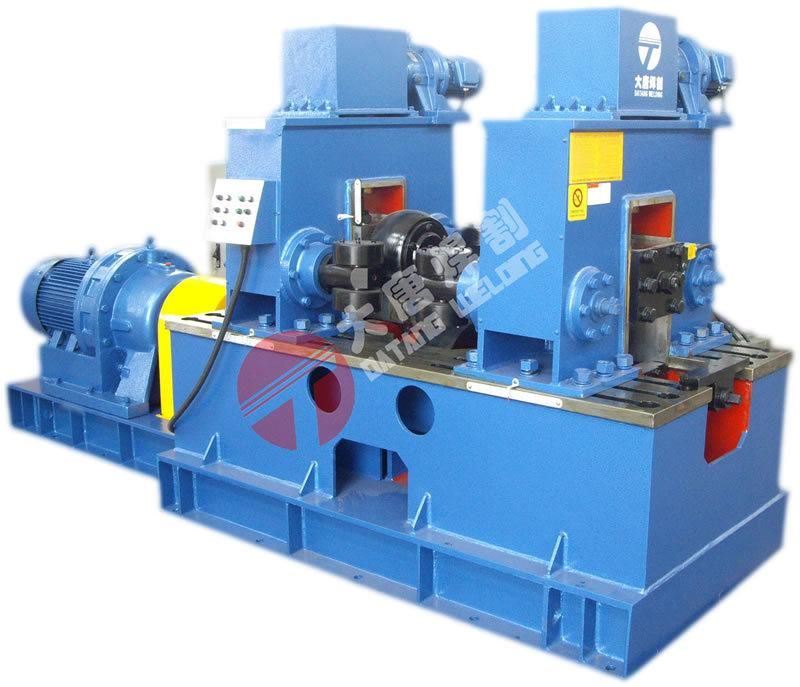

HYJ800 H beam straightening machine

This Straightening Machine  is the special equipment, which is mainly used for the flange plate distorion straightening. It includes mechanical and hydraulic two series for the customers' selection. Mechanical type straightening machine (HYJ-800) with simple structure, covenience operation and reliable ability; Hydraulic type straightening machine (DZYJ-60ADZYJ-60B) with the large straightening capability, wide straightening range, high automatic degree, which is the first developed in domestic market. The straightening roller and powered roller is adopted good alloy steel with advanced heattreatment technology to ensure the long term runing.



H-beam production line
Cutting-Assembling-Welding-Straightening



Model	HYJ-800
Flange width(mm)	200-800
Flange thickness (mm)	≤40
Web plate minimum height (mm)	350
Material	Q235A
Straightening speed (m/min)	18
Power(Kw)	25
Size (mm)	3500*1500*1700
