• Model NO.：colo-d-02
• Condition：New
• Powder Coating Line：Automatic
• Fan Motor：7.5kw
• Warm Board：Thickness 100mm
• Burner of Drying：200, 000 Kcal
• Polarity：Tons One Day
• Power：220V,110V,380V
• Edge：Spgcc T=1.5mm
• Body Plate Material：304# Stainless Steel
• Curing Oven Heating：Diesel Burner
• Pre-Treaments：Spraying
• Transport Package：Negotation
• Specification：can be ordered
• Trademark：COLO
• Origin：Hangzhou. China
• HS Code：8424899990
• Production Capacity：1 Line for One Month

Basic Info.

Model NO. colo-d-02 Condition New Powder Coating Line Automatic Fan Motor 7.5kw Warm Board Thickness 100mm Burner of Drying 200, 000 Kcal Polarity Tons One Day Power 220V/110V/380V Edge Spgcc T=1.5mm Body Plate Material 304# Stainless Steel Curing Oven Heating Diesel Burner Pre-Treaments Spraying Transport Package Negotation Specification can be ordered Trademark COLO Origin Hangzhou. China HS Code 8424899990 Production Capacity 1 Line for One Month

Product Description

 High Production Powder Coating Plant For Aluminum Alloy Door

1.Description:
Powder coating line spacialized design for painting mental doors. free design, overhead conveyor system,
speed adjustable. high output and automatic.
All the size and data can be designed by the requirements by the customer
Following data is one type line as a conference for customers:

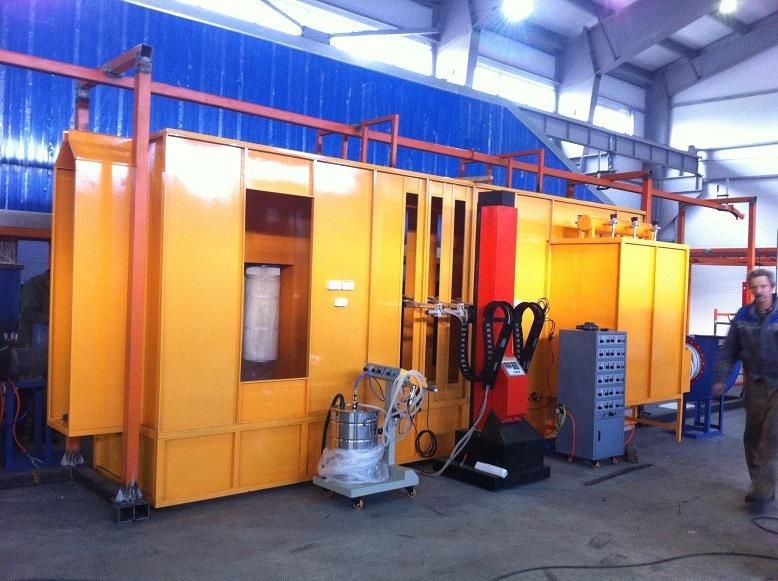

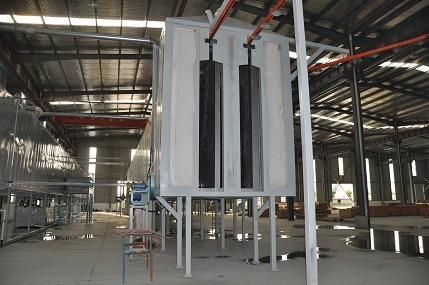

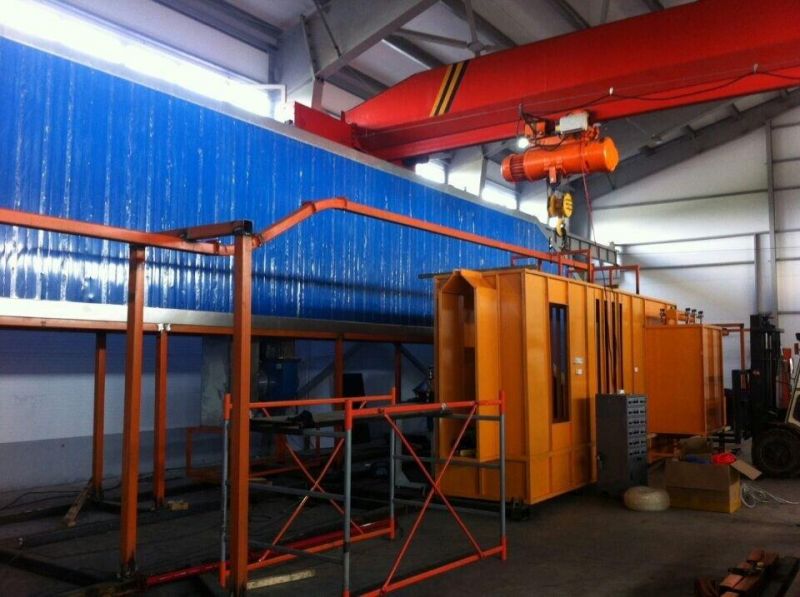

2.Powder Coating line Components

1	Top-open Water Dry Oven	1 set
2	Powder Coating Curing Oven Tunnel	1 set
3	Curing Oven Heating - Diesel Burner with Heat Exchanger	1 set
4	Stainless Steel Powder Coating Booth	1 set
5	Recycle filter & cyclone	1 set
6	Auto Guns Powder Coating System ( 8 Guns)	1 set
7	CL-2000D Reciprocators	1 set
8	PLC Touch Screen Control	1 set


3. Design basis of LPG tank powder coating line

1. Name of workpiece	Iron plate for security door
2. Max hanging size on each hanger	L1500mm×W100mm×H2300mm
3. Loading capacity on hanging hook	≤70kg
4. Suggested interval between 2 hangers	500mm
5. Conveying speed	1.5m/min (Adjustable control)
6. Output	35-45pcs per hour
7. Spraying method	4 auto spray guns (match on 2 reciprocators) & 2 manual spray guns
8. Heating source	natural gas (Other choices are available: electricity, oil or coal)
9. Pretreatment system	Vertical shower type

4.Process flow for safety door powder coating line
If above parameters cannot meet with your strict coating need, please contact us for more detail.
We can make some adjustments or even improvements to suit your actual production conditions.


Pre-degreasing stage	(50-65 Celsuis for 1 min)
Degreasing stage	(50-65 Celsuis for 2 mins)
Rinsing stage	(Room temperature for 1-2 mins)
Surface conditioning stage	(Room temperature for 1 min)
Phosphating stage	(35-45 Celsuis for 3 mins)
Rinsing stage	(Room temperature for 1-2 mins)
Drying off oven to remove surface moisture	(100-120 Celsuis for 10 mins)
Powder curing	(180-200 Celsuis for 20 mins)

5.Related keywords for burglary-resisting door
Security door powder coating line, Security door powder painting line, Security door powder spraying line,
Semi-automatic powder coating line for security door, Burglary-resisting door powder coating line, Antitheft door
Powder coating line, Safe-guard door powder coating line, Interior door powder coating line, Exterior door
Powder coating line, Decorative door powder coating line.

6.Process
powder coating Production  Procedure:Pretreatment→Work Piece Loading→Drying→Automatic + Manual
Powder Coating → Powder Curing (25minutes, 180~200ºC) → Unloading

7.please provide more details
In order to provide with advanced, practical, reliability, economy Powder coating line,


1.      The max weight and size of the workpiece (L x W x H)?

2.      The spraying process requirement of the workpiece?

3.      The max production output per month or per year?

4.      The size of the production area (L x W x H)? Does it have the flat floor?

5.      The heating type you need: gas, oil, electric, biomass particle or coal?

6.      How many colors to be changed to spray per day?

7.      The powder spraying type: automatic, semi-automatic, or manual?

8.      The recovery mode: automatic, semi-automatic, or manual?

9 .    The pretreatment mode: groove, spray or sand blasting?

10.    The local electric voltage (V/P/Hz)?

11.    If you have the designated brand spare parts please let us know.
