• Model NO.：FF-191S-V
• Condition：New
• Application：Any Metal Surface
• Coating Color：All
• Output Voltage(to The Gun)：0-100kv (Adjustable)
• Frequency：50-60Hz
• Voltage：220V,110V
• Dimension：123cmx80cmx49cm(L*W*H)
• Gross Weight：55kg
• Packaging：Standard Export Packaging
• Shipping：5-7 Work Days After Received The Deposit
• Payment：100% T,T in Advance
• Transport Package：Carton
• Specification：123cmx80cmx49cm
• Trademark：FF
• Origin：Zhejiang Hangzhou
• HS Code：8424899990
• Production Capacity：1000sets,Year

Basic Info.

Model NO. FF-191S-V Condition New Application Any Metal Surface Coating Color All Output Voltage(to The Gun) 0-100kv (Adjustable) Frequency 50-60Hz Voltage 220V/110V Dimension 123cmx80cmx49cm(L*W*H) Gross Weight 55kg Packaging Standard Export Packaging Shipping 5-7 Work Days After Received The Deposit Payment 100% T/T in Advance Transport Package Carton Specification 123cmx80cmx49cm Trademark FF Origin Zhejiang Hangzhou HS Code 8424899990 Production Capacity 1000sets/Year

Product Description

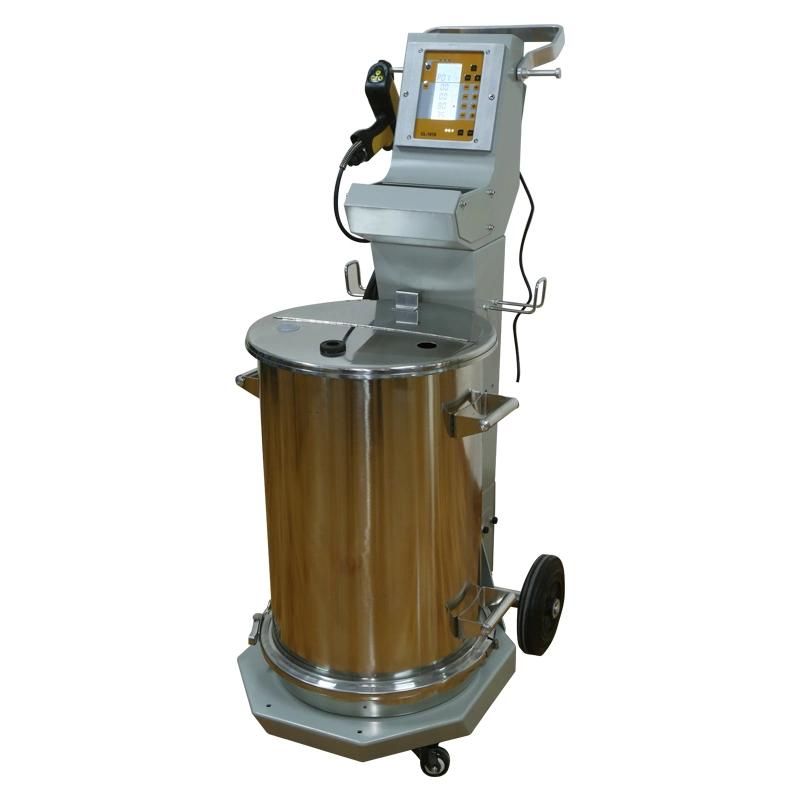

Vibration Powder Coating Machine for Quick Color Change
The Vibrational manual coating equipment is built exclusively for electrostatic coating with organic powders

The electrostatic powder manual coating equipment with the FF08 manual powder coating gun
the powder gun through the powder hose . The powder is electrostatically charged at the nozzle of the gun. In addition, an electrostatic field is created between the gun nozzle and the grounded object. The charged powder spray remains adhered to the surface of the object.

The powder is fluidized by air forced through a porous plastic plate from below. The powder acquires, thereby, fluid-like characteristics.

The conveying air, supplementary air, and rinsing air are set on the control

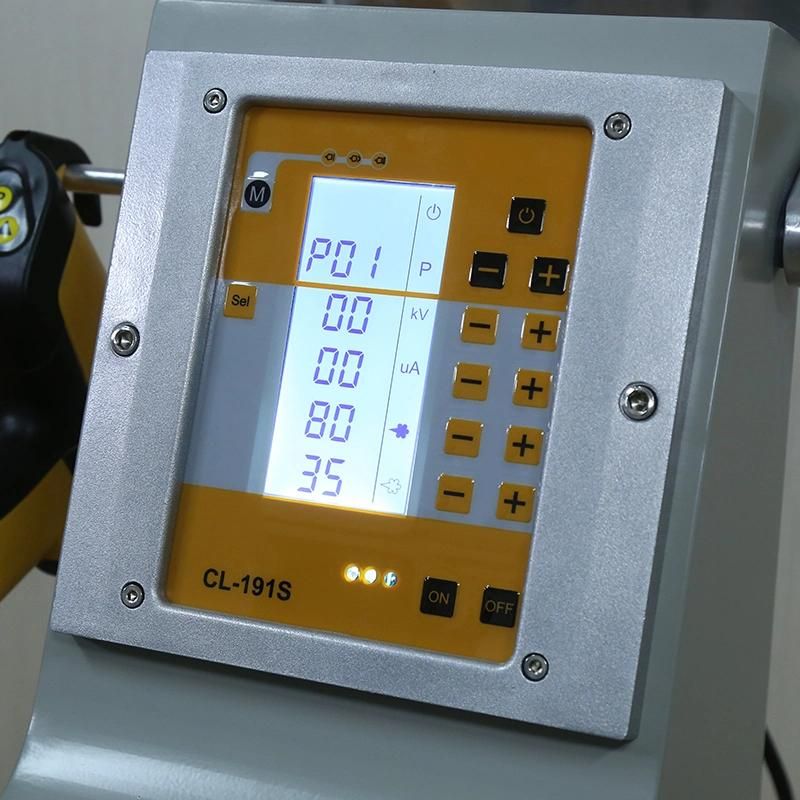

Special features of the new FF-191S -V digital control model

1 New design ,more compact ,save space and more flexble

2 superior performance in coating job ,especially for deep corner

3 optimium coating resualt

4 digital air flow technology

5 powder is more stable

6 More uniform

7 wide range for all kinds of work-piece

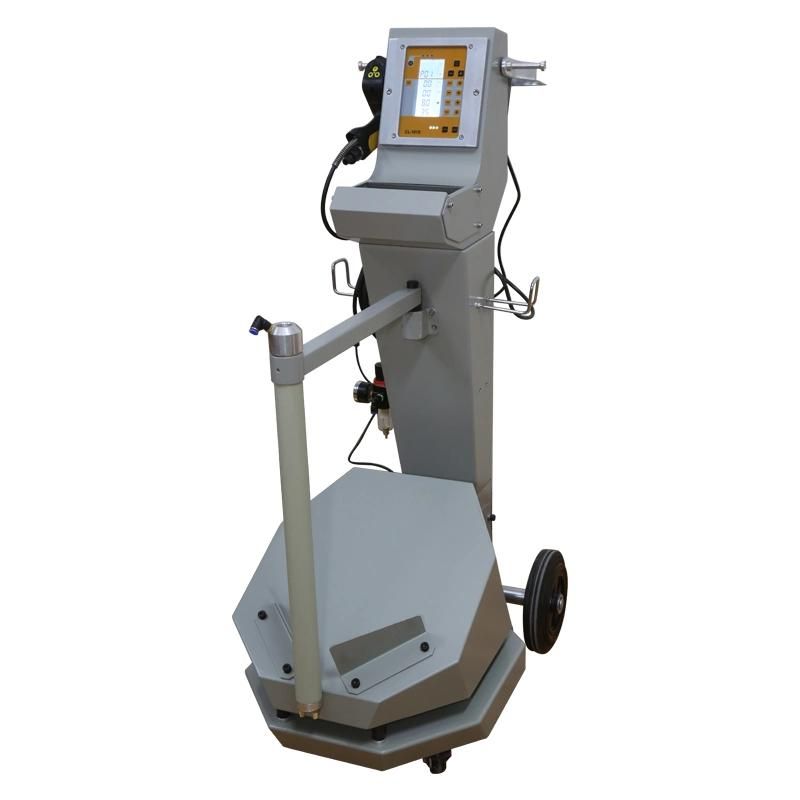

Manual coating equipment-structure
1 control unit                        2 Manual powder gun
3 injector                              4 Mobile frame with hand rail
5 carton box                         6 Powder filler flap
7 Swivel wheel                      8 Filter unit
9 Gun holder                        10 Shelf
11 Hose holder                     12 Hose holder
13 Rubber wheel

FF-191S-V is applied to any diiferent shape -work-piece, it owns a superior coating quality .


The parmater

MODEL	FF-191s-v
Gun Weight	500G
Rated output voltage	24VDC
Input voltage	-200KV
Maximum output current	180Ua(max)
Maximum output voltage	0-100K(adjustable)

Pneumatic data


Maximum powder injection	600g/min
Polarity	negative
Maximum input-air pressure	10kg/cm
Optimum input-air pressure	6kg/cm
Optimum input-air pressure	4kg/cm
Maximum water vapor content or compressed air	1.4g/N m3
Maximum oil vapor content of compressed air	0.1ppm
Maximum compressed-air consumption	13.2 m3/h
Temperature range in use	-10 ºC+50 ºC

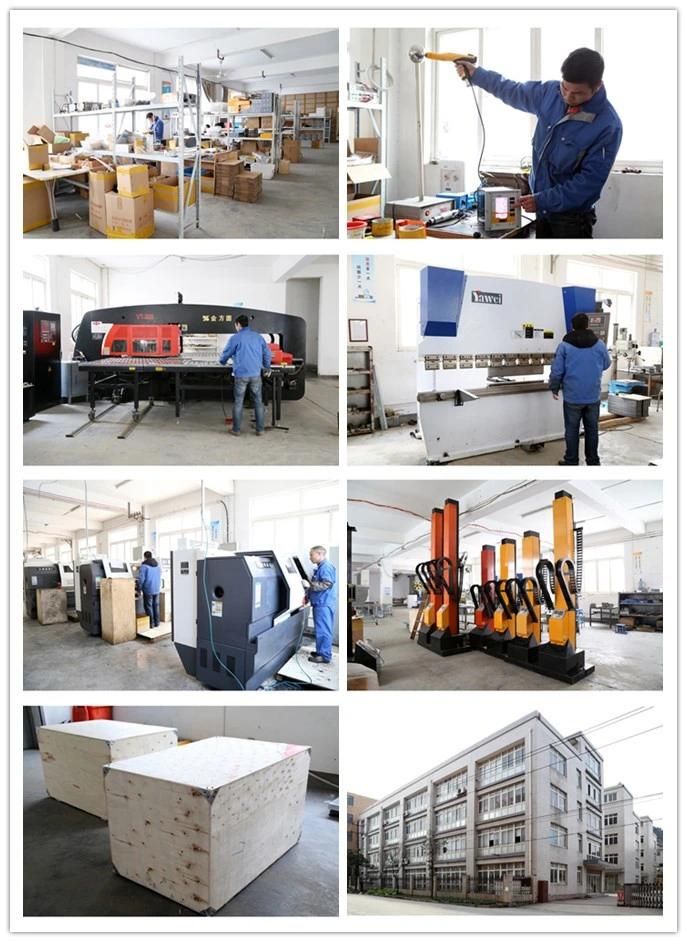

  Virtual Production view
