• Model NO.：M192
• Customized：Customized
• Advantage：Use Widely
• Condition：New
• Color：Blue and Yellow

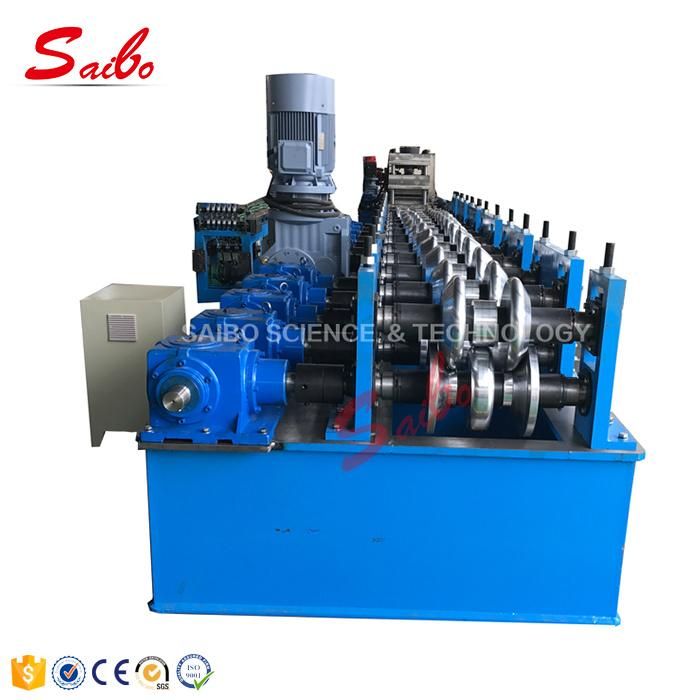

• Machine Name：Two Waves Guard Rail Roll Forming Machine
• Main Power：45kw
• Roll Station：17stations
• Transport Package：No Packing
• Specification：CE SGS
• Trademark：SAIBO
• Origin：Jiangsu. China
• HS Code：84552210
• Production Capacity：300sets,Year

Basic Info.

Model NO. M192 Customized Customized Advantage Use Widely Condition New Color Blue and Yellow Machine Name Two Waves Guard Rail Roll Forming Machine Main Power 45kw Roll Station 17stations Transport Package No Packing Specification CE SGS Trademark SAIBO Origin Jiangsu. China HS Code 84552210 Production Capacity 300sets/Year

Product Description

Product name: Guard rail roll forming machine
Description:
1. Brief introduction:
A. Simple structure and beautiful outlook;
B. Easy to setting and operation
C. Little noise and high working efficiency.

2. Main technology parameter:
The structure of equipment
1. Hydraulic decoiler
Single unrolling machine, one side can put material
Adopt automatic hydraulic system
Coil weight (Max): 7000kg
Coil dia (Max): 1600mm
Oil cylinder dia: 1200mm working pressure: 10mpa
Coil Width(Max. ): 500mm

2. Feeding, leveling
Feed into unit oriented wheel(can right and left adjust)
Into feeding roller, dia is ¢ 180mm, material 45# steel, quenched 48-52, chromed
Leveling is three roller above and four roller below, quenched and chromed

3. Punching (can right and left adjust)
Using hydraulic punching
Oil cylinder dia: 140mm
Working pressure: 20mpa
Mould material: Cr12 quenched 58-62
Hydraulic power: 7.5kw
Size: 1.5m long*1.1m wide*1.2m high

4. Roll forming
Main motor power: 45kw
Decelerating motor: BWD14-43-37kw, made in Shanghai or
Changzhou
Drive: Gimbal driving, 120*500
Main shaft dia: 100mm material: 45#forge steel
Roller material: GCR15 quenched 58-62, chromed
Roll station: 17stations
Timing by transducer: 5m--20m/min(not including punching)
Transducer: Panasonic made in Japan. 380V 50Hz
Computer: PLC
Computer operating panel: Touching screen

5. Cutting
Hydraulic cut
Knife material: Cr12, quenched 58-62
Oil cylinder dia: 250mm
Working pressure: 30mpa
Working journey: 80mm

6. Run out table
Jointed by 60mm*40mm tube (can be adjusted to up and down)
Size: 1.5mlong*0.8mwide*0.6-1mhigh(can be adjusted)

7. The production flow of equipment
Decoiling-Feeding(take the sheet to the first station)-leveling-Punching of the sheet -roll forming-hydraulic cut to length-product packing manual.
