All-in-One Pipe Cutting & Beveling Machine
Nanjing Auto Electric Co., Ltd.- Applicable Industries：Oil&Gas, Refinery Facilities, Offshore&Shipbuildin
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
- Input Voltage：3pH AC380V, 50Hz
- Input Power：9.6kw
- Available Pipe Diameter Range：Dn50~Dn200 mm
- Max.Thickness of Suitable Pipe：16mm
Base Info
- Model NO.：AUTO PCBM
- Min. Length of Translating Pipe：1000mm
- Pipe Running Linear Velocity：0.1 mm,Zhuan
- Type：Cutting&Beveling All-in-One Machine
- Application：Machinery & Hardware
- Type for Cutting Machine：Cutting&Beveling All-in-One Machine
- Type for Fold-Bending Machine：Automatic Cutting and Beveling The Same Time
- Certification：ISO 9001:2008, Ce, CS
- Automation：Automatic
- Condition：New
- Transport Package：Packed in Container
- Specification：SGS
- Trademark：NAEC
- Origin：China
- HS Code：85153190
- Production Capacity：200 Sets,Year
Description

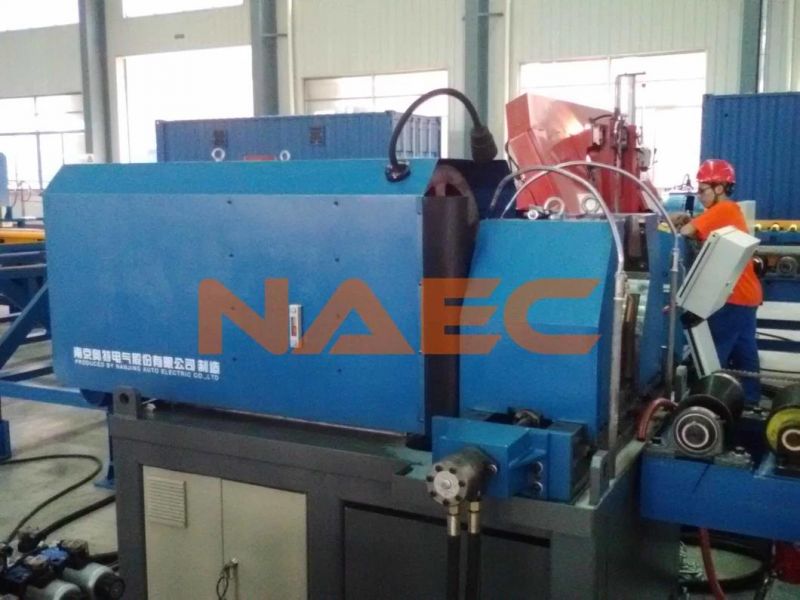

Pipe Cutting& Beveling All-in-one Machine
>Suitable for pipes not larger than 8",max.thickness:20mm
>Cutting efficiency:100times/8hrs
>PLC control with automatic measuring to guarantee the same processing cycle
>Widely used for small bore C.S/S.S production lines

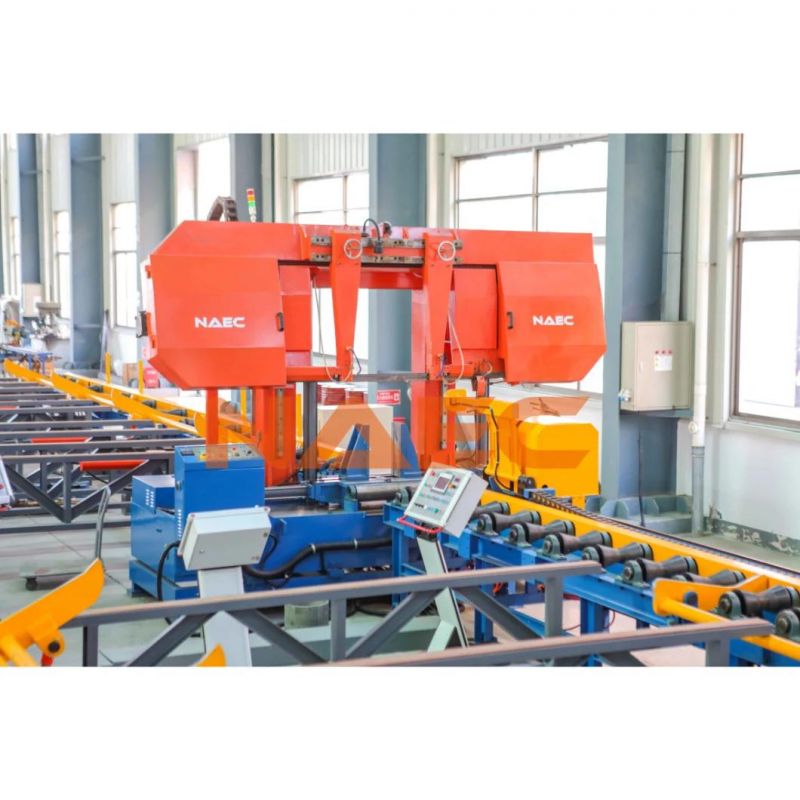

High Speed Band-saw Cutting Machine
>Three models available(16"type,24"type",48"type)
>PLC system control;self-measuring function with precision:±0.5mm
>Using hydraulic self-centering chuck
>It only takes 6 minutes to cut a 24" pipe of 25mm thickness
>Widely used for C.S/S.S production lines.

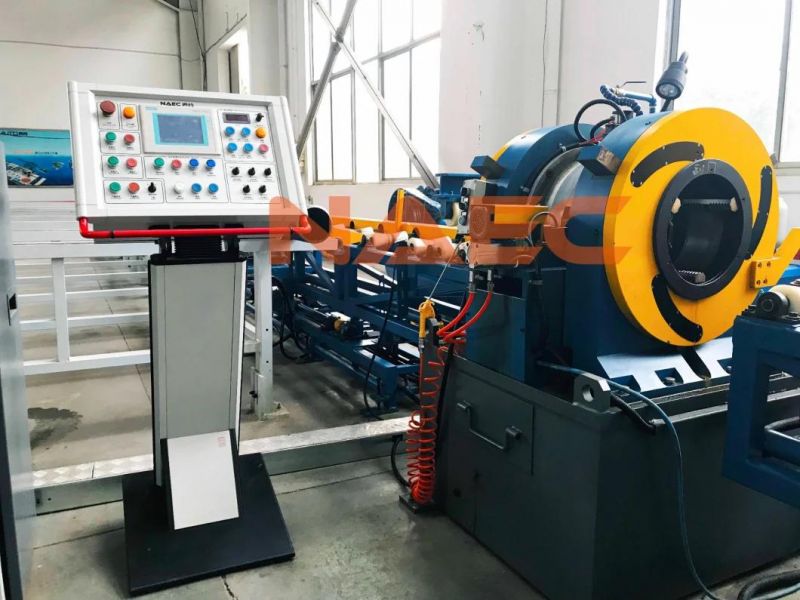

High Speed CNC Pipe End Beveling Machine
>Automatic self-centering chuck
>Single V,double V,U type bevel
>Can be matched with pipe end turning devic
>High speed beveling:for example,it only takes 2.5minutes to get a 37.5 degree bevel for a S.S pipe end(diameter :610mm,thickness:25mm)
>Several models available:16",24",32",48"
Two / Multi- Axis CNC Flame/Plasma Cutting Machine
>High efficient pipe cutting with automatic self-measuring function, pipe end beveling, intersection line profiling for both main and branch pipe.
>Five/multi-axis cutting machine can profile more complicated outlines with various bevel type
>Standard machine suitable for pipes nor larger than 24''

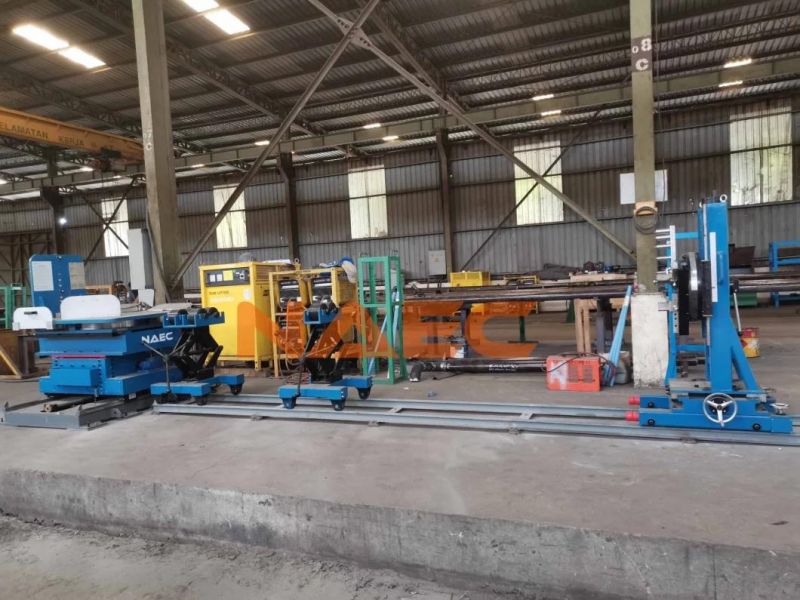

Multi-function Pipe Fitting-up Station
>Suitable for flange,elbow,tee,reducer to pipe and special T-joint fitting-up.
>Light-duty type(manual) and heavy-duty type(motorized) are available.
>Different types available, 8" type, 24" type, 32" type, 48" type, 60" type

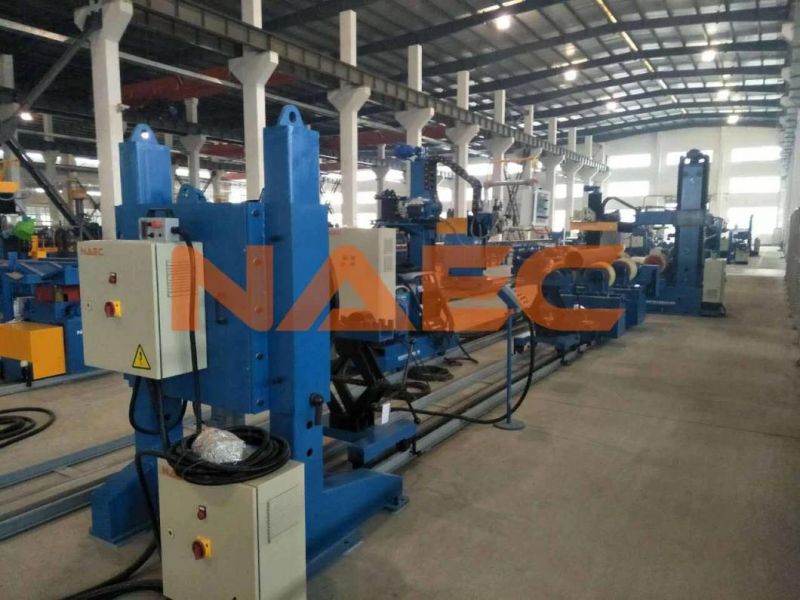

Automatic Pipe Welding Station
>With two welding heads
>TIG/MIG/SAW are optional
>PLC system control & WPS programmed
>Max. efficiency fo reach welding head can be 400D.I/8hrs even use TIG/MIG technology.
>Different types available, 8" type, 24" type, 32" type, 48" type, 60" type

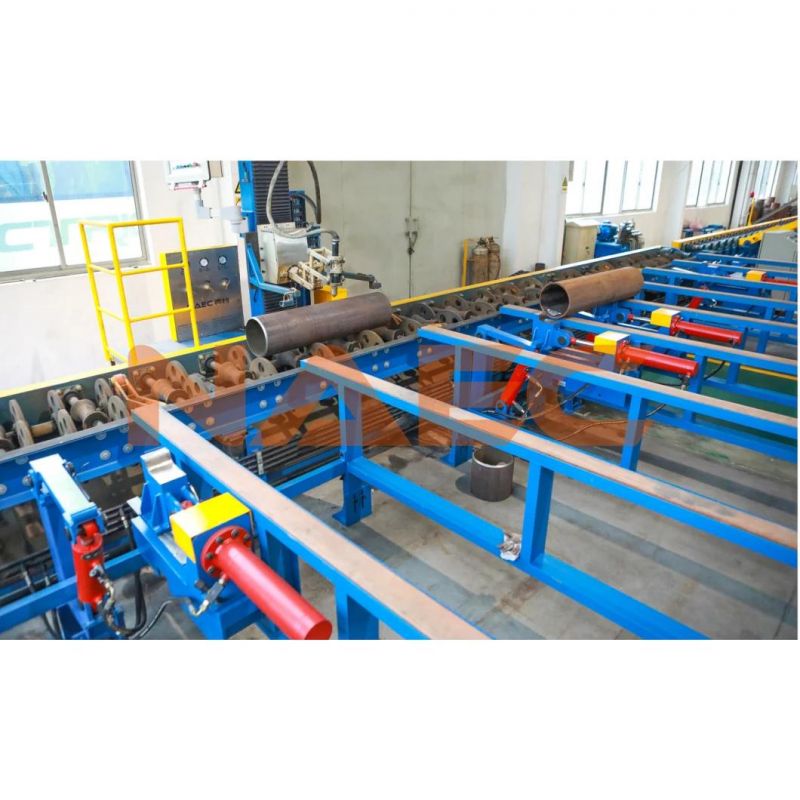

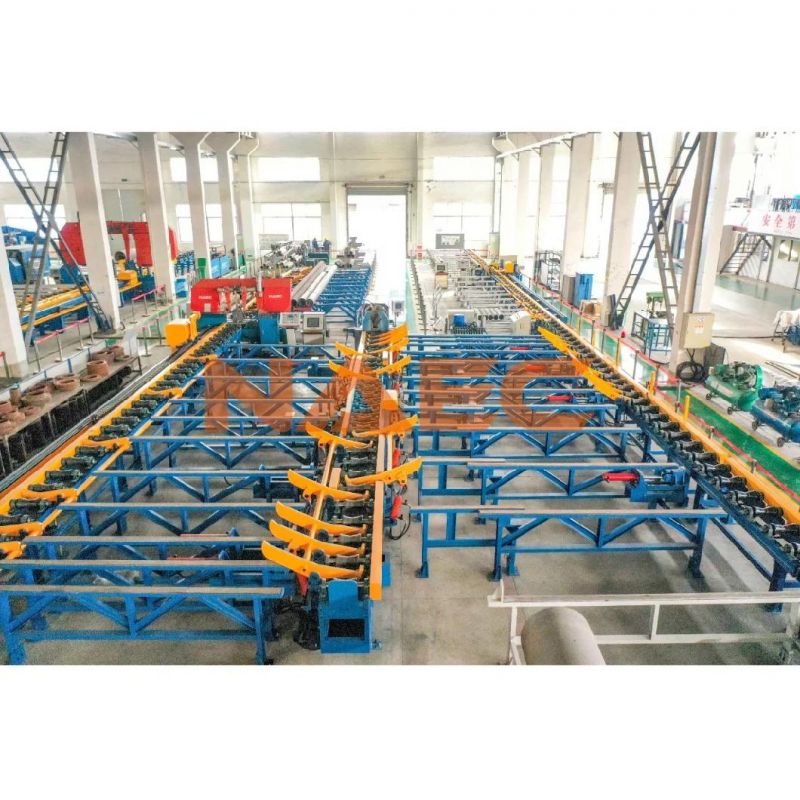

Conveyor Handling System
>used for pipe convenient transporation during in pipe spool fabrication.
>Its speed is adjustable between 2M to 20M/min.
For more information, please contact us, thank you!
