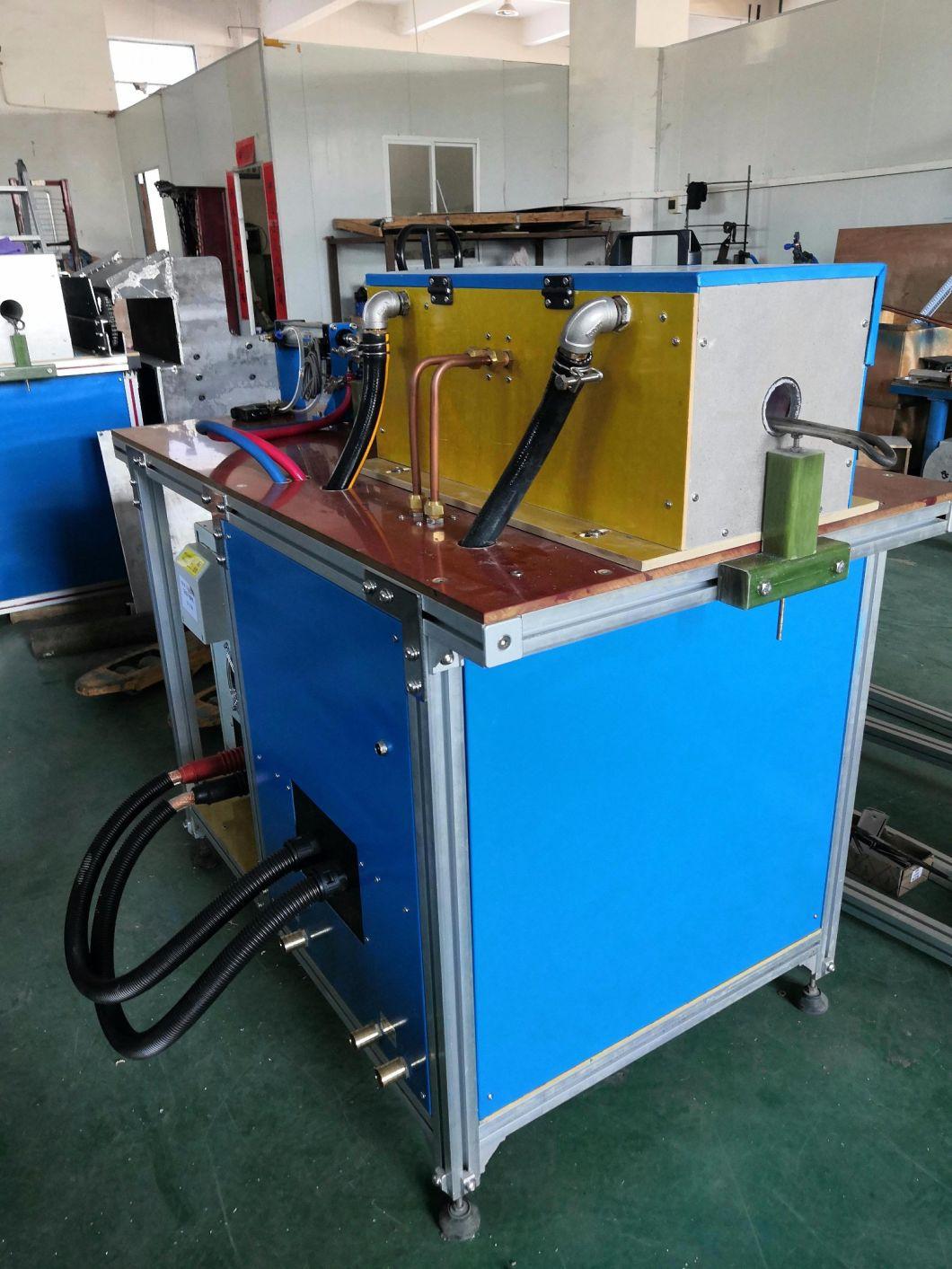

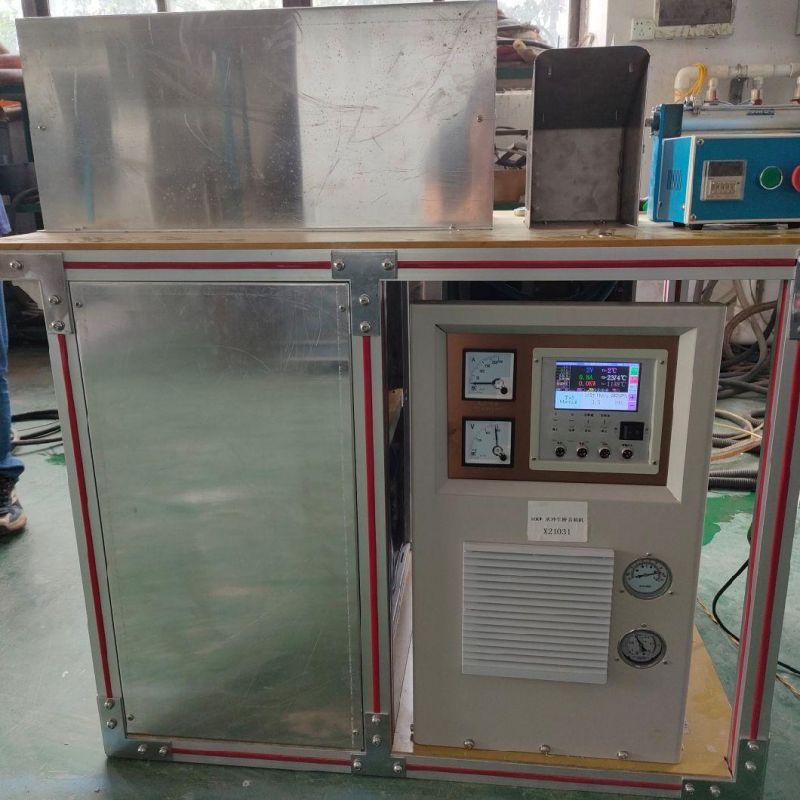

China Profressional Design and Production IGBT Inducton Heat Forging Machine for Diathermic Shaft and Steel Bar
Foshan Sinfor Electro-Machanical Equipment Co., Ltd.- After-sales Service：Within24 Hours Prositive Response
- Warranty：Within 18 Months From The Date of Delivery Time
- Working Dimater：10-50mm
- Power：60kw
- Frequency：5-20kHz
- Application：Hot Forging
Base Info
- Model NO.：DSP-60KW
- Input Current：90A
- Working Voltage：380V,415V,440V,480V*3phase 50-60Hz
- Workpiece：Steel, Brass, Copper, Bronze Bar
- Cooling Mothed：Water Cooling System
- Induction Coil：Design for Your Workpiece
- Feature：High Effiecency and Saving Energy
- Transport Package：Wooden Box
- Specification：CE, SGS, ISO
- Trademark：ORD
- Origin：China
- HS Code：8514400090
- Production Capacity：10, 000sets
Description
Type
DSP-60KW
Work power
3×380V/415V,440V,480V
The range of operating voltage
340V-430V
Output power
60 KW
Working Capacity ( diamater)
10-50MM
Input current
90A
Working Duty
24hours withou stop
Fluctuating frequency
5-20KHZ
The flow rate of cooling water
0.08-0.16 Mpa 28L/Min
Water temperature protection point
50ºC
Duty cycle
100%(40degree room temperature)
Weight:
Main parts: 85KG/ with package 98kg
Furnace Weight
About 300KG /with package 330kg
Feeding system
Automatic Feeding System
Working Material
Steel, Copper, Brass, Alum,Bronze and so on
Pre-sale service:
1. recommend the most suitable machine for customers, according to their requirements.
2. Inquiry and consulting support.
3. Sample testing support.
4. View our Factory.
In-sale service:
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.
After-sale service:
1. Warranty time: Within 18 months from the date of delivering, 12months from date of receiving.
2. Within warranty all parts are free for customer, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, We shall provide replacement parts after detecting the faults.
3. If any big quality problems occurs out of the guarantee period, we will send maintenance
technician to provide visiting service after checking with the customer and charge for a favorable price.
5. We will provide a lifetime cost price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
6. The above mentioned are only basic aftersale service requirements,we will make more promises related to quality assurance and operation guarantee.
