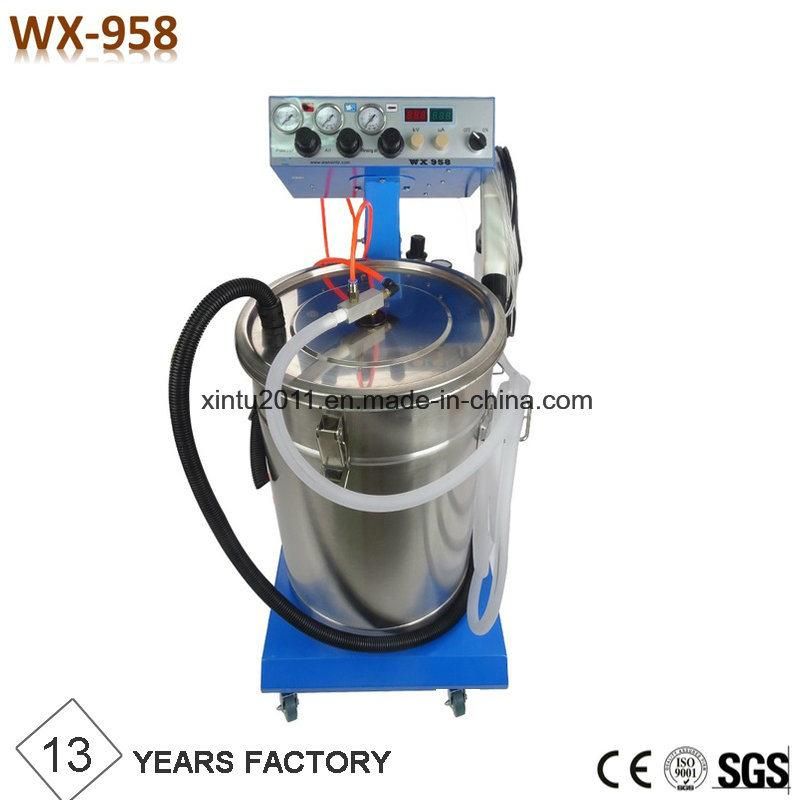

• Model NO.：WX-958
• Power：50W
• Input Voltage：AC110V,AC220V
• Output Voltage：Max.100kv
• Output Current：150ua
• Powder Output Capacity：550g,Min.
• Powder Hopper：45L
• Work Temperature：-10°c-45°c
• Packing Sizes：48.5X 47X59cm
• Gross Weight：22kg
• Transport Package：Carton
• Specification：600*490*480mm
• Trademark：WANXIN
• Origin：China
• HS Code：84243000
• Production Capacity：400 PCS,Month

• With flat and smooth appearance and workpiece with no deep corners.
• High sensitivity and durability.
• Thickening resistance to puncture the tip, the low maintenance rate.
• With circuit protection, voltage self-adjusting function, to ensure a perfect spraying effects.
• High voltage module near the nozzle, low voltage loss, replaceable high voltage components to bring convenience to the maintenance.
• Large flow of pneumatic components, in the smaller air pressure, can still achieve higher powder.
• All stainless steel for powder cartridge, can not use tools to easily remove all parts and clean.
• Two central gas design, so that the needle is no longer needle-guided fluid powder, to enhance the discharge effect, improve the rate of powder.
• Rotating automized air flow is greatly improved coating quality.

 Electrostatic Powder Painting Machine is a dry finishing process, using finely ground particles of pigment and resin that are generally electrostatically charged and sprayed onto electrically  grounded parts. The charged powder particles adhere to the parts and are held there until melted and fused into a smooth coating in a curing oven. Before coating, the parts to be coated are first pretreated similarly to conventional liquid coated parts. The pretreatment process is normally conducted in series with the coating and curing operatios.Electrostatic Painting machine works:
Electrostatic powder coating equipment (electrostatic spray machine) the powder coating to the surface of the work, under the action of electrostatic powder evenly adsorbed on the surface of the workpiece to form a powder coating, powder coating baked at high temperatures leveling solidified into varying results (the effect of different types of powder coatings) final coating.
This product is widely used in the home appliances, hardware, security door (window), fins, architectural, auto parts, sports equipment, medical equipment, aluminum and other industries.







Product Parameter of Powder Painting MachineModel NoWX-958Voltage of Power Supply220/110V/AC,50/60HZInput Power50WMax Output Voltage100 KV negativeMax Output Current150uaPowder Output Capacity500gPowder Hopper Capacity45LWork temperature-10-50ºC

Packing & Shipping

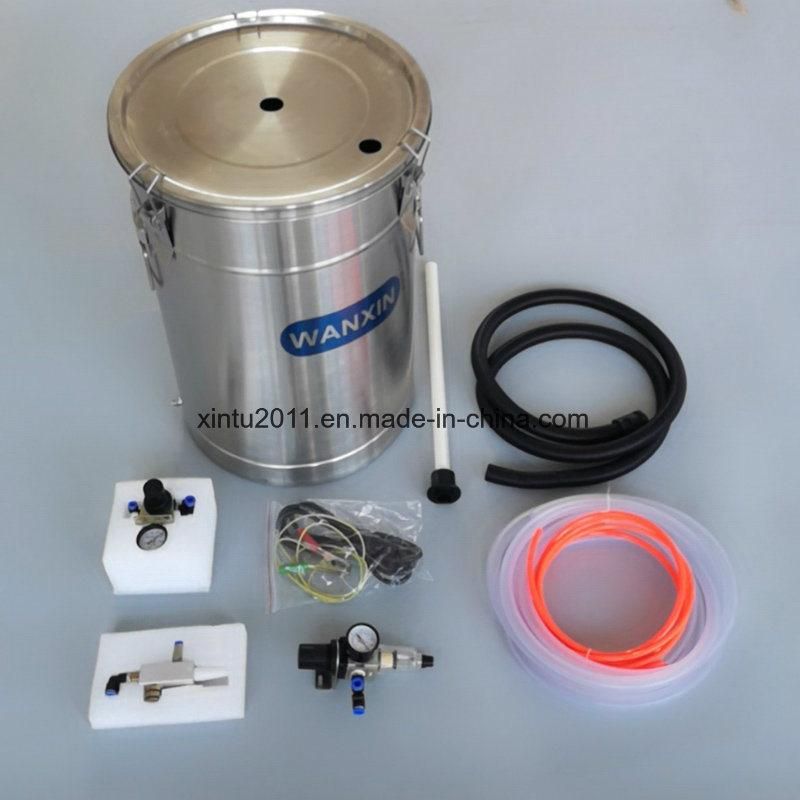

Packing List of Electrostatic Powder Painting Machine

• 1 × Manual Powder Gun With Gun Cable
• 1 × Powder Gun Spare Parts

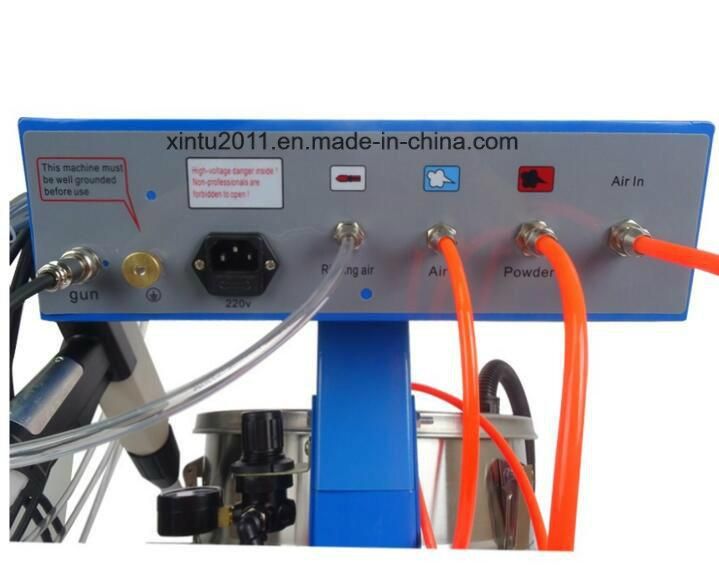

• 1 × Control Unit
• 1 × Powder Injector
• 1 × Fluidized Powder Hopper
• 1 × Trolley
• 1 × Oil-Water Separator
• 1 × Pressure Regulating Valve
• 1 × Powder Hose ,Air Tubes ,Grounding Line

Packing Sizes:48.5 x 47 x 59cm
Gross weight: 22kgs



Our Company  Jiangsu Xintu Machinery Co., Ltd is one of the leading Manufacturers in powder coating equipment or total line and flocking machine ,Our company found in 2011, with the factory in Jiangsu province nearby Shanghai city. it would take up a considerable 25,000square meters.
  Almost 15 years experience in offering a wide variety products such as powder coating equipment, flocking machine and their accessories, also if customers have a specific request can according to clients parameters to customized machine or line.
  We have developed steady business relationship with clients from all over the world such as North America, Europe, middle East, Southeast Asia and so on.
  We have experienced and skilled workers, QC team and QA system,also have ISO9001,CE,SGS certification.100%quality checking and tests before shipment.
  We will offer you the most competitive price and best service!

Contact InformationCompanyJiangsu Xintu Machinery Co.ltd.AddressNo.15 Jiangfeng road, Binhai industry park,Qidong city,Jiangsu ,ChinaWebsitexintu2011.en.made-in-china.comNameTom Feng(sales manager)Tel No0086 17131159740
