• Model NO.：150DA
• Output Allowable Redial Load (Kgf)：1000
• Output Allowable Axial Load (Kgf)：650
• Input Allowable Redial Load (Kgf)：400
• Input Allowable Bending Moment (Kgf)：400
• Indexing Accuracy (Sec.)：+30 or -30
• Weight (Kg)：90
• Guarantee Period：One Year
• Usage：for Spraying Machine
• Transport Package：Box
• Specification：150DA
• Trademark：HONE PAN
• Origin：China
• HS Code：84834090
• Production Capacity：20000 Sets , Year

Basic Info.

Model NO. 150DA Output Allowable Redial Load (Kgf) 1000 Output Allowable Axial Load (Kgf) 650 Input Allowable Redial Load (Kgf) 400 Input Allowable Bending Moment (Kgf) 400 Indexing Accuracy (Sec.) +30 or -30 Weight (Kg) 90 Guarantee Period One Year Usage for Spraying Machine Transport Package Box Specification 150DA Trademark HONE PAN Origin China HS Code 84834090 Production Capacity 20000 Sets / Year

Product Description

1. Cam Indexer / Rotary Indexers/ Indexing Mechanism (DA Series)  Features:
1) high precision.
2) good performance of high speed.
3) smooth running.
4) large transmission torque.
5) self-locking during positioning.
6) compact structure.
7) long service life.

2. Product Details:
As the increasing demand of modern industry for automation, high-speed, high precision of products, cam indexer has been widely used in many kinds of automation equipment. Cam indexer is an ideal intermittent transmission mechanism which could turn continuous running of automation equipment into stepping action.

Cam Indexer / Rotary Indexers/ Indexing Mechanism (DA Series) introduction:
The appearance and properties of this model are the same as the plateform desktop model, just it becomes more compact and thinner, which meet the customer's requirements in the case of height restriction of operating place.

Cam Indexer / Rotary Indexers/ Indexing Mechanism (DA Series) includes: 90DA, 110DA, 150DA

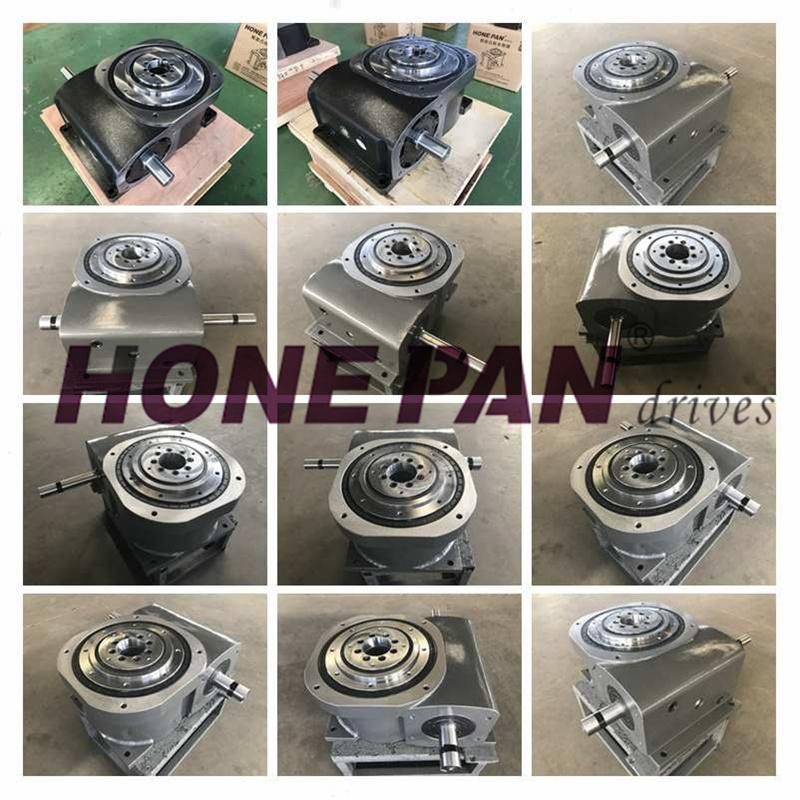

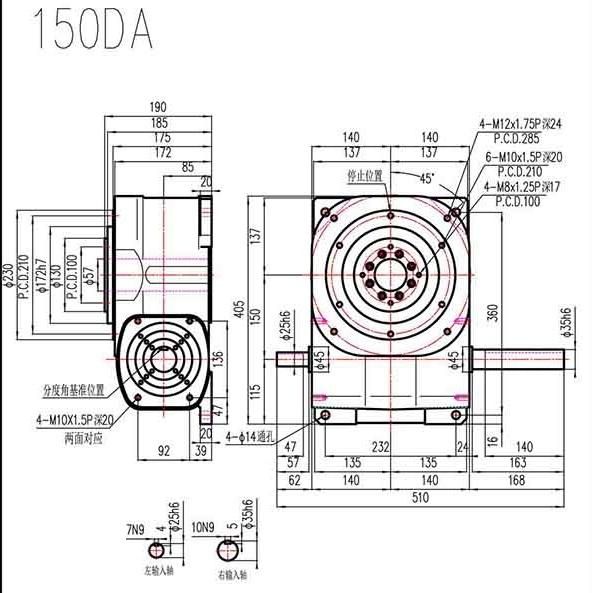

3.Specification of 150DA Cam Indexer / Rotary Indexers/ Indexing Mechanism :




Item	Symbol	Unit	Value
Output allowable radial load	C1	Kgf	1000
Output allowable axial load	C2	kgf	650
Output allowable torque	Ts	Kgf-m	Refer to Torque Capacity Table
Input allowable radial load	C3	Kgf	400
Input maximum bending moment	C4	Kgf	400
Input maximum torque	C5	Kgf-m	36
GD2 of input shaft (note 1)	C6	Kgf-m2	2×10-3
Indexing accuracy		Sec.	±30
Weight		Kg	90

Note 1: GD2 of input shaft is a value in dwell range.
Note 2: Value of C1 to C5 are those obtained for safety factor=2.

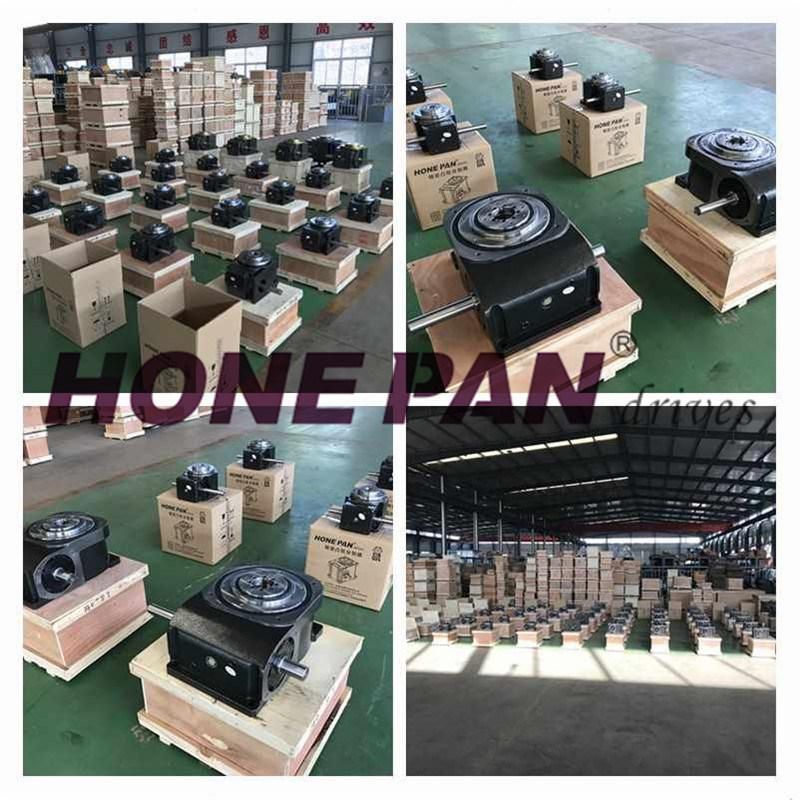

4. Company, Packaging & Shipment & Certificates




5. FAQ:

1) Customize prodcuts are available ?
     Yes, Customize products are available. We could design and produce products according to your requirements or darwings. You just need to tell us your detailed requirements and our technicists will design and provide materials for your confimation. If all is ok, the production will be arranged.

2)  What's your payment terms?
    For small order, considering the value is not large, the payment terms are 100% T/T in advance.
    For large order, we could negotiate.

3) how about the packaging and shipment?
    Packaging : in box (wooden case).
    Shipment : according to customer's instruction.

4) How about the lead time ?
   For common model, the lead time is about 15 workdays;
   For customize model, the lead time is longer, about 30 workdays.

5) How about the quarantee period ?
    In generall, the quarantee period - one year for assembly unit from the date of sale .
