• Model NO.：VLP1530D
• Model No.：Vlp1530d
• Plasma Source Brand：Huayuan,Hypertherm
• Control System：Startfire
• Automatic Height Control：Startfire Thc
• Nesting Software：Fastcam
• Cutting Area：1500*3000mm
• Motor and Driver：Leadshine Stepper Motor and Driver
• Drive Mode：Linear Guide and Rack Gear
• Cutting Thickness：1-30mm
• Travelling Speed：0-50m,Min
• Cutting Speed：0-8m,Min
• Cutter Torch Cooling Method：Air Cooling or Water Cooling
• Working Voltage：AC380V 50Hz,60Hz
• Working Mode：Untouched Arc Striking
• File Transfer Mode：USB Interface
• Transport Package：International Standard Export Plywood Wood
• Specification：3900*2280*2220mm,1700Kg
• Trademark：VMADE
• Origin：Jinan, Shandong, China
• HS Code：8456401000
• Production Capacity：1000 Set,Year

Basic Info.

Model NO. VLP1530D Model No. Vlp1530d Plasma Source Brand Huayuan/Hypertherm Control System Startfire Automatic Height Control Startfire Thc Nesting Software Fastcam Cutting Area 1500*3000mm Motor and Driver Leadshine Stepper Motor and Driver Drive Mode Linear Guide and Rack Gear Cutting Thickness 1-30mm Travelling Speed 0-50m/Min Cutting Speed 0-8m/Min Cutter Torch Cooling Method Air Cooling or Water Cooling Working Voltage AC380V 50Hz/60Hz Working Mode Untouched Arc Striking File Transfer Mode USB Interface Transport Package International Standard Export Plywood Wood Specification 3900*2280*2220mm/1700Kg Trademark VMADE Origin Jinan, Shandong, China HS Code 8456401000 Production Capacity 1000 Set/Year

Product Description

Product Description

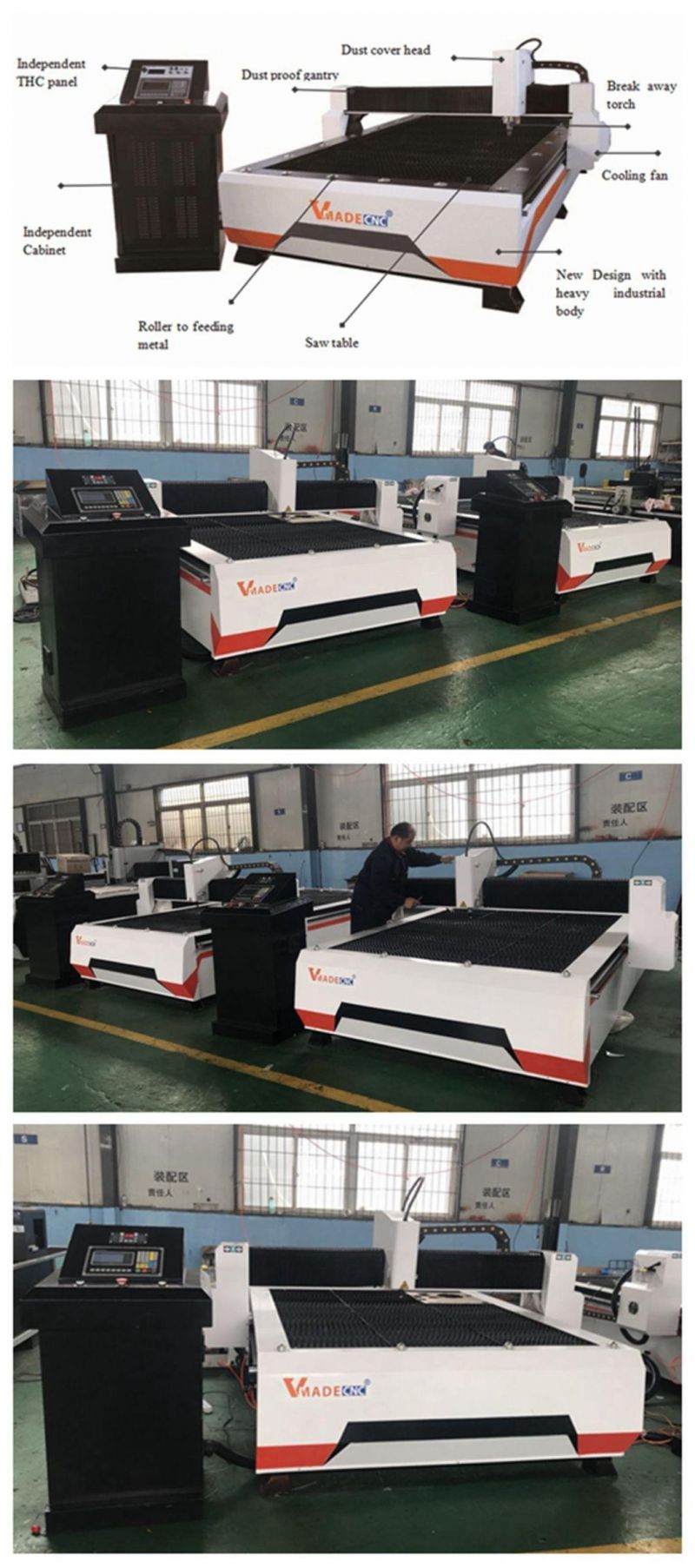

Plasma Metal Cutting Machine
1. Beam with light structural design, the structure has good rigidity, light weight, exercise inertia and low cost.
2. Gantry-type structure,
Y axis synchronous dual-motor drive and X/Y/Z axis with circular rail (optional formula-type linear guide), steady transmission and
high accuracy.
3. For advertising solid light, groove metal panel and bottom plate of the word for cutting, cutting accuracy
good indicator. If equipped with the U.S. Treasure plasma power can achieve lower laser cutting machine.
4. CNC system configuration high, automatic arc, stable performance, the success rate of 99% arc.
5. Support Wentai, Beihang Haier, ARTCAM, Type3 software such as the standard G code path generated
file can also be read by software conversion software such ad AUTOCAD generated DXF formats. U disk
exchange control system processing files, easy to operate.

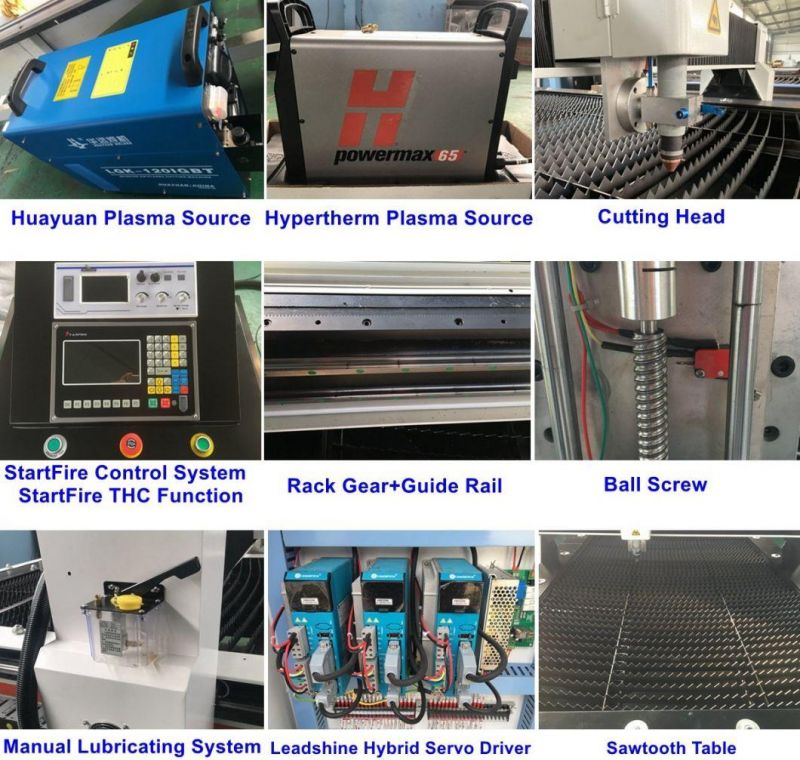

Detailed Images



Parameters

Model	Plasma Cutting Machine
Working Size	600*900mm,1200*1200mm,1300*2500mm,1500*3000mm,2000*4000mm
Repeat positioning accuracy	+-0.05mm
Traveling Speed	0-24000rpm/min
Cutting Speed	10-15mm/min
Transmission model	Gear Rack Drive
Transmission System	X,Y Axis Taiwan Hiwin High-precision, Zaro Clearance increased, Linear guide+rack
Operation System	START or DSP with USB Interface
Drive	Stepper, Leadshine-Stepper,YASKAWA or Pansonic
Plasma Power Supply	USA Hypertherm or China best HUAYUAN
Cutting thickness	0.1-30mm(different power cutting different thickness)
Cutting type	Plasma/Oxy[-acetylene or Propane
Input Voltage	3 phase ,220V/380V+-10%
Model of file transfer	USB Interface
Guide Way	Imported square rail
Table-board	Steel blade saw tooth mesa
Straight line positioning precision	+-0.2mm/10m
Straight line positioning precision	+-0.3mm/10m
Environmental Temperature	-5~45ºC
Humidity	<90% NO concreting

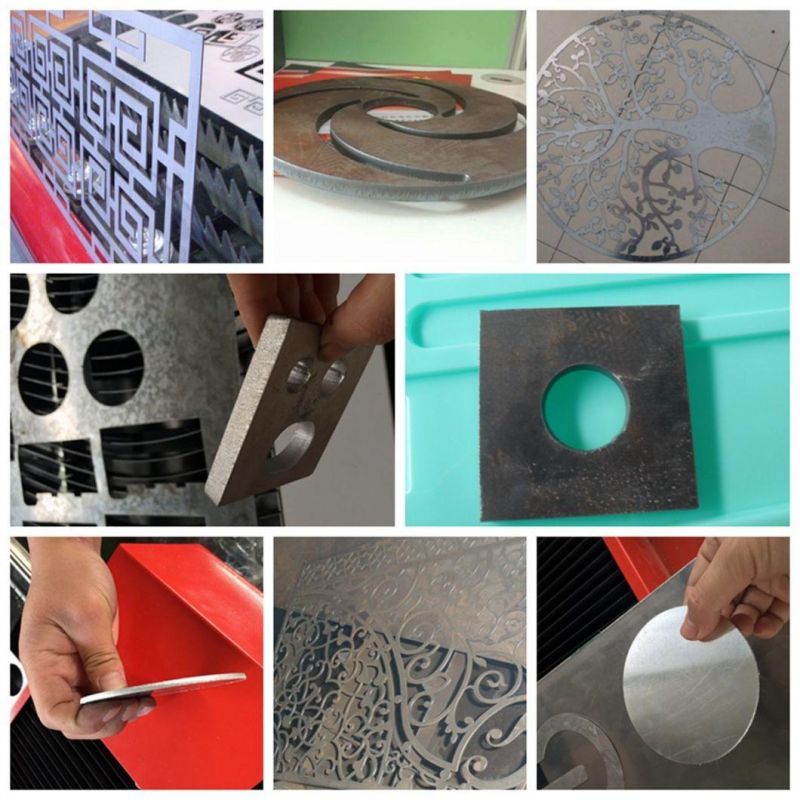

Sample Picture
Plasma Source Brand and Cutting Thickness

China HUAYUAN Source:	USA Hypertherm Source:
63A(Max 5mm thickness matel plate)	45A(Max 5mm SS,Aluminum.8mm CS.)
100A(Max 6mm SS,Aluminum.12mm CS.)	65A(Max 8mm SS,Aluminum.12mm CS.)
120A(Max 10mm SS,Aluminum.18mm CS.)	85A(Max 12mm SS,Aluminum.16mm CS.)
160A(Max 15mm SS,Aluminum.25mm CS.)	105A(Max 16mm SS,Aluminum.20mm CS.)
200A(Max 20mm SS,Aluminum.30mm CS.)	125A(Max 18mm SS,Aluminum.25mm CS.)

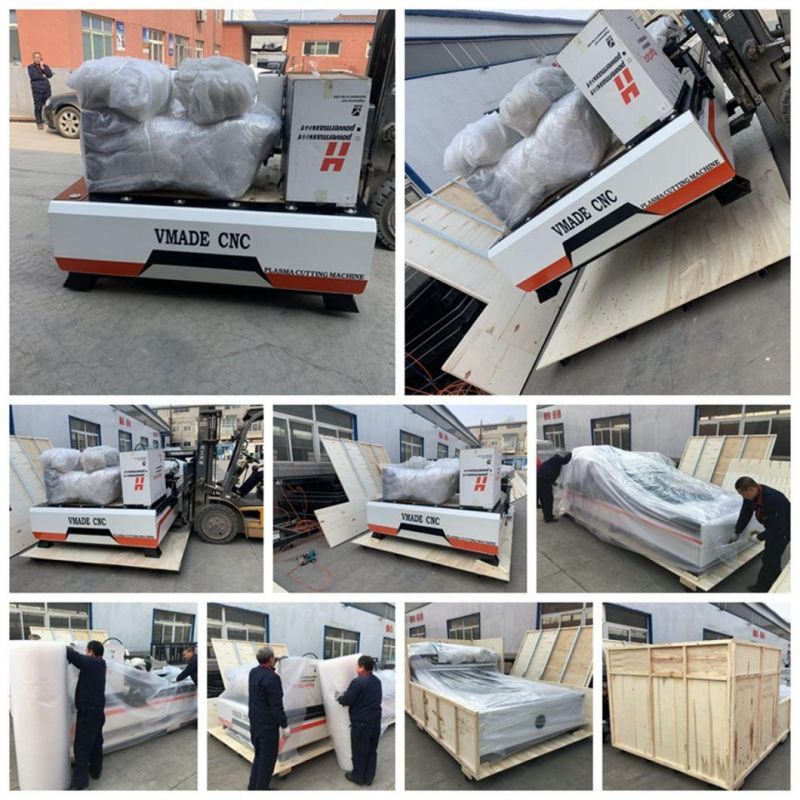

Package

VLP-1325 model Packing Size:3300*2280*1750mm Weight:1100Kg
VLP-1530 model Packing Size:3900*2280*2220mm Weight:1700Kg
VLP-2060 model Packing Size:6800*2260*1700mm Weight:2000Kg
