• Model NO.：HF-15A ,15AB
• Type：Infineon
• Input Current：36A or 15A
• Transport Package：Wooden Box
• Specification：CE, SGS, ISO
• Trademark：ORD
• Origin：China
• HS Code：8514400090
• Production Capacity：10, 000sets
• Package size per unit product：600.00cm * 290.00cm * 620.00cm
• Gross weight per unit product：42.000kg

Basic Info.

Model NO. HF-15A /15AB Type Infineon Input Current 36A or 15A Transport Package Wooden Box Specification CE, SGS, ISO Trademark ORD Origin China HS Code 8514400090 Production Capacity 10, 000sets

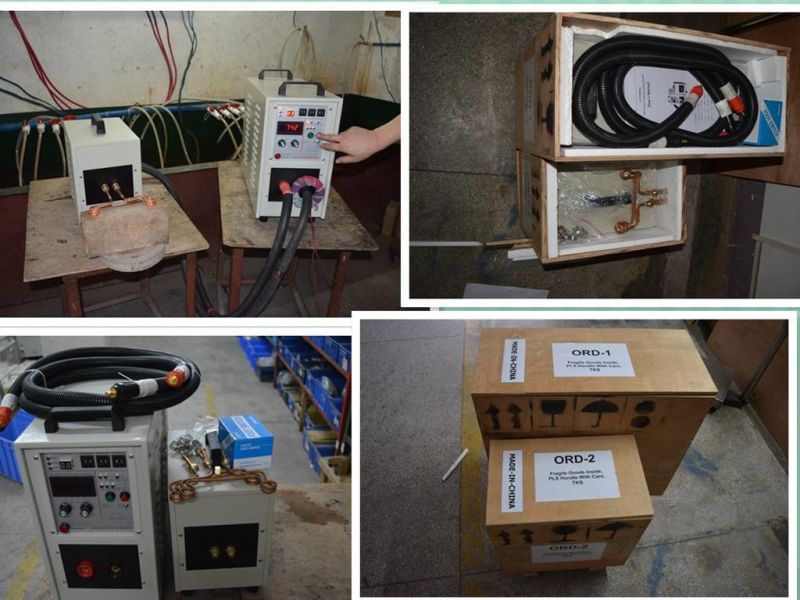

Packaging & Delivery

Package size per unit product 600.00cm * 290.00cm * 620.00cm Gross weight per unit product 42.000kg

Product Description

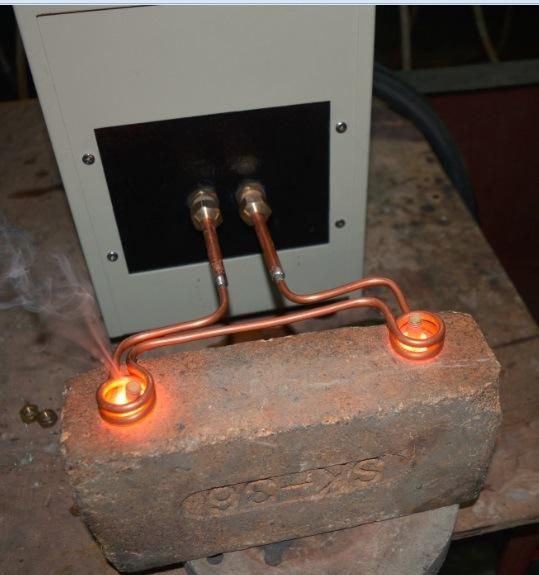

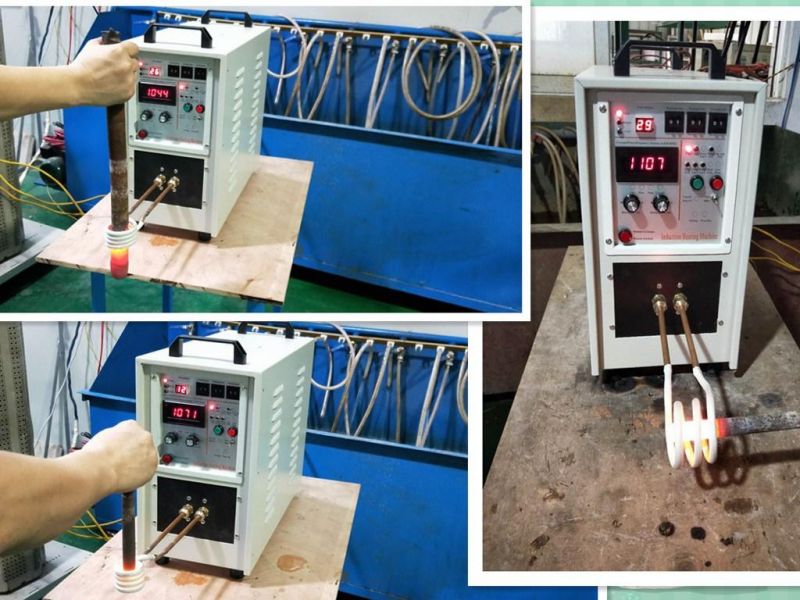

Induction Heating Machine:


Advantage:
1 Siemens IGBT
2 DELIXI Air Switch
3 Phase Bridge ( Germany IXYS)
4 Filter Capacitor (Janpan chemi-con)
5 All screws are Stainless Steel
6 More than 10 year experience, rich experience, stable performance, good quality.
7 Copperated with CHOW TAI FOOKS, Matsushita, Foxconn, Media, Gree and ZHIGAO Air conditioner
8 Suitable for a large range, heating, quenching, forging, melting, solding and so on.

Main characteristics:
1 Siemens IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2 100% Duty cycle, continuous working is allowed at maximum power output.
3Display of heating power and heating current and oscillating frequency;
4 Simple to install, Installation can be done by unprofessional person very easily;
5 Light weight
7 Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;
 Applications:
Drill tip heat shaping
 Heat treatment
 Quenching
 Forging
 Melting
Soldering and brazing
Welding

Type	HF-15AB/15A
Work Power	single phase 220v  50-60hz
The range of operating voltage	180-250V AC
Output power	15KW
Input current	36A
Fluctuating frequency	30-100khz
Timing (Heat time,Retain time,Cool time)	1-99S
The flow rate of cooling water	0.15 Mpa 7.6L/Min
Water temperature protection point	40centidegree
Duty cycle	100% (40degree room temperature)
Weight	Mainparts:35Kg
Size	Main Parts:640*280*550mm
