• Model NO.：CL-800D-2
• Voltage：110V,220V
• Size：123X80X49cm
• Polarity：Negative (-)
• Frequency：50-60Hz
• Maximum Powder Injection：600g,Min
• Input Voltage：- 200kv
• Gun Weight：500g
• Rated Output Voltage：24VDC
• Maximum Output Current：180ua(Max)
• Transport Package：Cartons
• Specification：CE
• Trademark：HICOLO
• Origin：China
• HS Code：8424899990
• Production Capacity：500sets Per Month

Basic Info.

Model NO. CL-800D-2 Voltage 110V/220V Size 123X80X49cm Polarity Negative (-) Frequency 50-60Hz Maximum Powder Injection 600g/Min Input Voltage - 200kv Gun Weight 500g Rated Output Voltage 24VDC Maximum Output Current 180ua(Max) Transport Package Cartons Specification CE Trademark HICOLO Origin China HS Code 8424899990 Production Capacity 500sets Per Month

Product Description

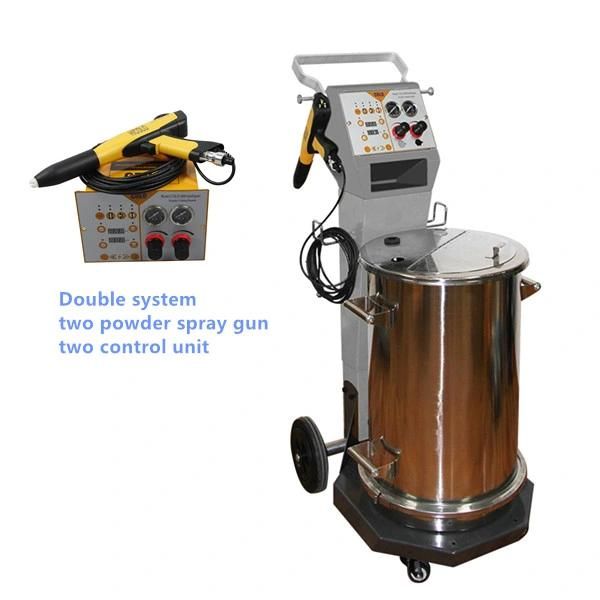

800D-2 Intelligent Double System Manual Powder Coating Machine

COLO-800D-2 intelligent double system powder coating machine support one touch selection on different spraying models,such as the flat mode,corner model or recoating model,etc,this product is designed for saving space and investments in specialty,it is flexible for users to choose single system or double system simultaneously for operations,what's more,customers will get large economic profits and top quality coating effect.
Due to the superior imported accessories,the product retains long term stability and reliability.



Applications of Product
Car wheel rim,bicycle frame,sheef,panel,etc

♦Electrical Household Appliances	♦Aerospace Area
♦Automotive Electronics	♦Fitness Equipment
♦Track Traffic	♦Medical Devices
♦Petroleum Pipes, Valve	♦Tools & Hardware
♦LED Lights, Outdoor Lamps	♦Radiator & Heat Sink
♦Glass Decoration	♦External Facilities

Technical Data


Power range	220v
Frequency	50/60HZ
Temperature range in use	-10   +50
Gun weight:	500g
Rated output voltage	24VDC
Input voltage	- 200kv
Maximum output current	180Ua(max)
Maximum output voltage	0-100KV (  adjustable)
Maximum powder injection	600g/min
Polarity	negative (-)
Maximum input-air pressure	8kg/cm
Optimum input-air pressure	6kg/cm

Features:
Its spray gun is interchangeable with optiselect type.the PTFE nozzle and insert sleeve are
suited for coating various powder,this product is commended to cooperate with metal silver powder
that is difficult to be sprayed.

Operation
The intelligent powder spray system is digital displayed,so you can adjuster the gun voltage by
press"+"or"-",it is simple to operate.the main machine can be pre-programmed with 3 models that
allow you to easily coat a variety of parts,such as flat shapes,corners,complex shapes and it has a recoating mode.

One set powder coating machine includes:

Main machine

Powder spray gun and spray nozzle set

Cart with wheels

Powder hose,air tube,cable set

Powder injector and insert sleeve

Oil -water filter ,fluidized pressure regulating valve
