• Model NO.：COLO-191ST-H
• Brand：Colo
• Packaging：Carton
• Dilivery：3-5 Working Days
• Packing Weight：21kg
• Power Range：220V
• Frequency：50Hz
• Operational Method：Manual
• Name：Portable Manual Powder Coating System
• Transport Package：Carton
• Specification：CE ISO
• Trademark：COLO
• Origin：Zhejiang Hangzhou
• HS Code：8424899990
• Production Capacity：1000sets,Month

Basic Info.

Model NO. COLO-191ST-H Brand Colo Packaging Carton Dilivery 3-5 Working Days Packing Weight 21kg Power Range 220V Frequency 50Hz Operational Method Manual Name Portable Manual Powder Coating System Transport Package Carton Specification CE ISO Trademark COLO Origin Zhejiang Hangzhou HS Code 8424899990 Production Capacity 1000sets/Month

Product Description

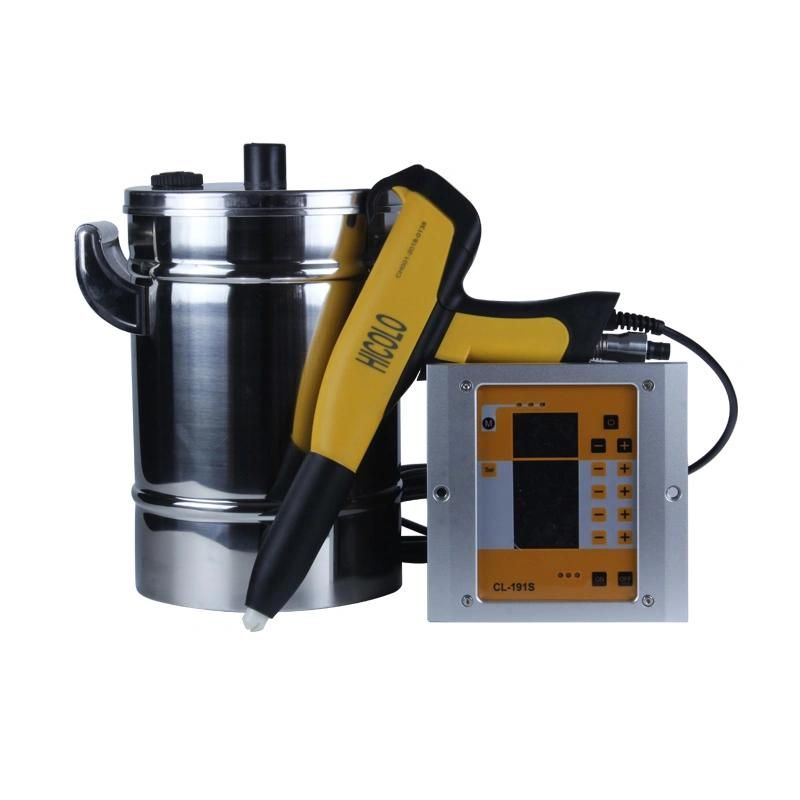

Portable Manual Powder Coating System

Model: COLO-191ST-H

Advantages
1) With hopper size(D20xH30cm), suitable for testing or small production
2) Small dimension, portable for using and moving
3) Small packing size, save shipping cost
4) COLO-191S control unit, same quality with original
5) Perfect for coating complex parts



Specification
Electrical Data
Input Voltage: 100-240V (Can be customized)
Frequency: 50Hz/60Hz
Temperature Range in use: -10~50^oC
Power Gun
Working Voltage: DC 24V
Output Voltage: 0-100Kv(Adjustable)
Output Current: 180uA(Max.)
Maximum Powder Injection: 600g/min
Polarity: negative (-)
Pneumatic data
Maximum input-air pressure: 10kg/cm
Optimum input-air pressure 6kg/cm
Minimum input-air pressure 4kg/cm
Maximum water vapor content or compressed air 1.4g/N m3
Maximum oil vapor content of compressed air0. 1ppm
Maximum compressed-air consumption 13.2 m3/h
Sumarry of the advantage
1,High transfer efficiency
2,Perfect coating results
3,Well balanced ergonomic handling
4,Simply and easy maintenance
5,Robust and lightweight design
6,Wide range of accessories
7,intelligent function:


COLO-191S POWDER COATING GUN Control Unit


Basic Function
 (1) Powder feeding adjustment and display
 (2) Supplementary air adjustment and display
 (3) Vibrating adjustment and display./Current adjustment and display
 (4) Gun cleaning adjustment and display./Voltage adjustment and display.

Pre-setting Function
 (6) Flat coating
 (7) Corner coating.
 (8) Re-coating.

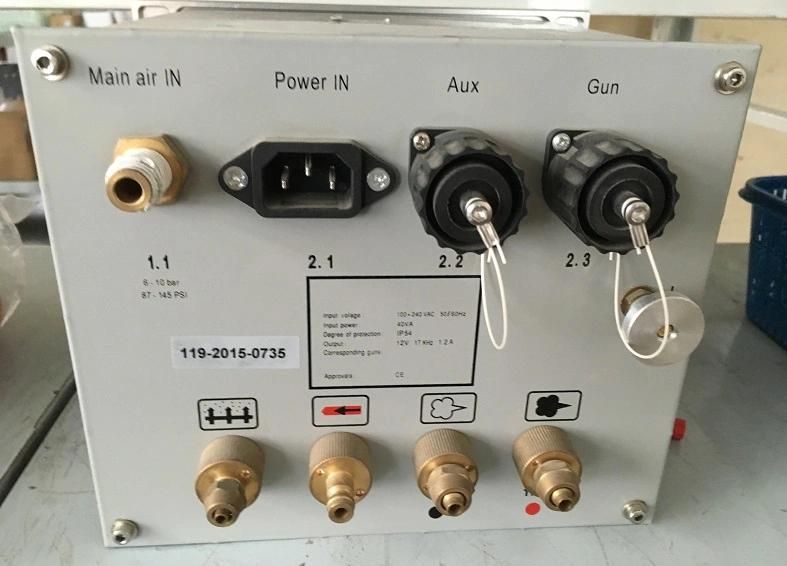

Back side view of control unit

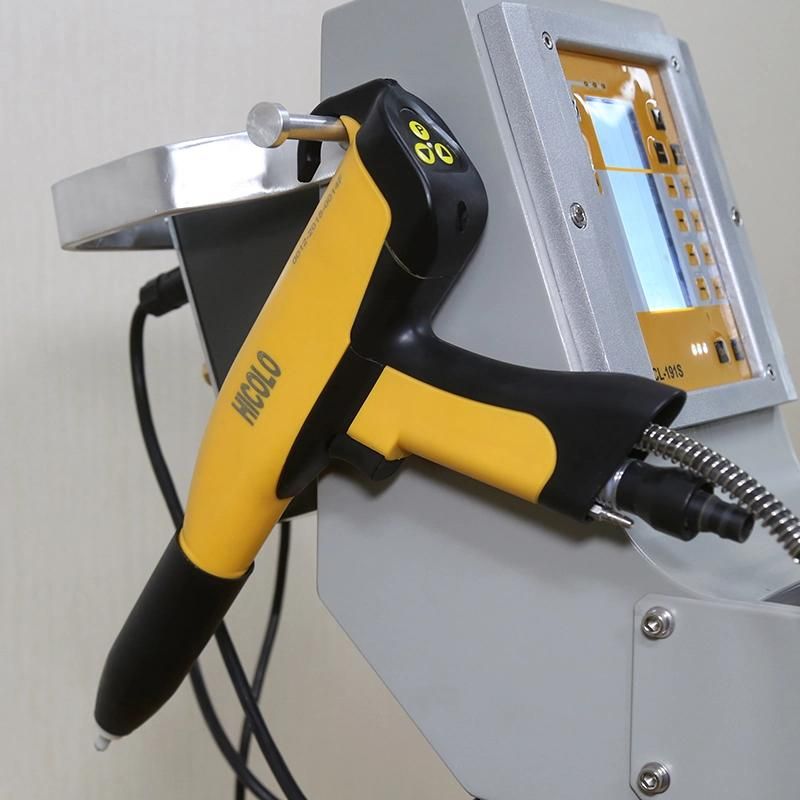

COLO-08 Manual Gun, match with COLO-191S, with functions of remote powder feeding adjustment. Can be replaced with OptiSelect.
