• Model NO.：YX65-400-425
• Customized：Customized
• Advantage：Work Flexible
• Condition：New
• Roll Forming Machine：Roll Forming Machine
• Motor Power：5.5kw*2 Sets
• Hydraulic Power：2.2kw
• Forming Steps：13
• Effective Width：400mm, 425mm
• Material Width：575mm, 600mm
• Thickness：0.5-1.2mm
• After-Sales Service：Engineers Available to Service Machinery Overseas
• Delivery Time：Delivery Immediately After The Machine Is Assemble
• Size：5800*1600*1400mm
• Transport Package：Standard Package for Export
• Specification：SGS
• Trademark：XHH
• Origin：Xiamen, China
• HS Code：84552290
• Production Capacity：10-15sets,Month

Basic Info.

Model NO. YX65-400-425 Customized Customized Advantage Work Flexible Condition New Roll Forming Machine Roll Forming Machine Motor Power 5.5kw*2 Sets Hydraulic Power 2.2kw Forming Steps 13 Effective Width 400mm, 425mm Material Width 575mm, 600mm Thickness 0.5-1.2mm After-Sales Service Engineers Available to Service Machinery Overseas Delivery Time Delivery Immediately After The Machine Is Assemble Size 5800*1600*1400mm Transport Package Standard Package for Export Specification SGS Trademark XHH Origin Xiamen, China HS Code 84552290 Production Capacity 10-15sets/Month

Product Description

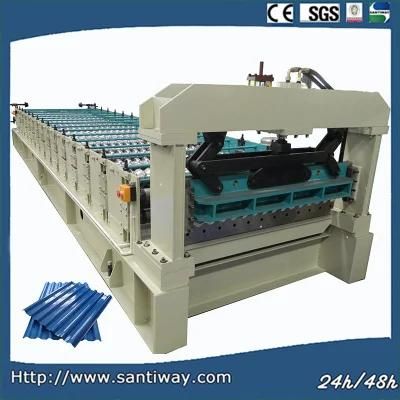

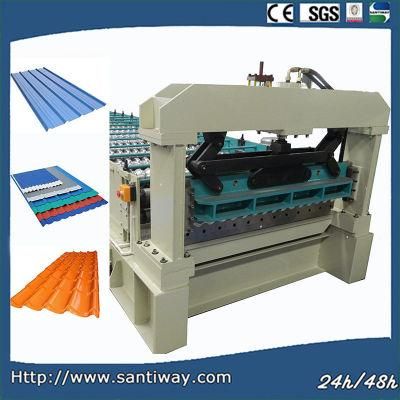

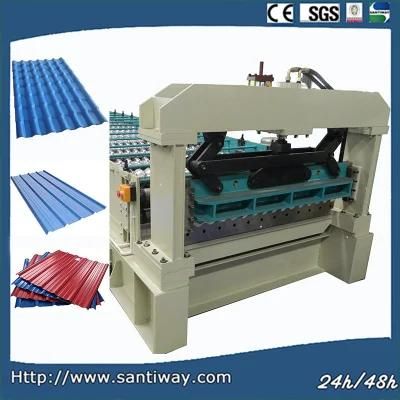

YX65-400-425 Standing Seam Roofing Panel Machine for Straight and Tapered Aluminum Roofings, Roofing Panel Machines and Steel Roofing Machine's detailed informations' are as follows:

Main Accessories:
(1). Main roof forming machine;
(2). 5 tons manual decoiler;
(3). Hydraulic system;

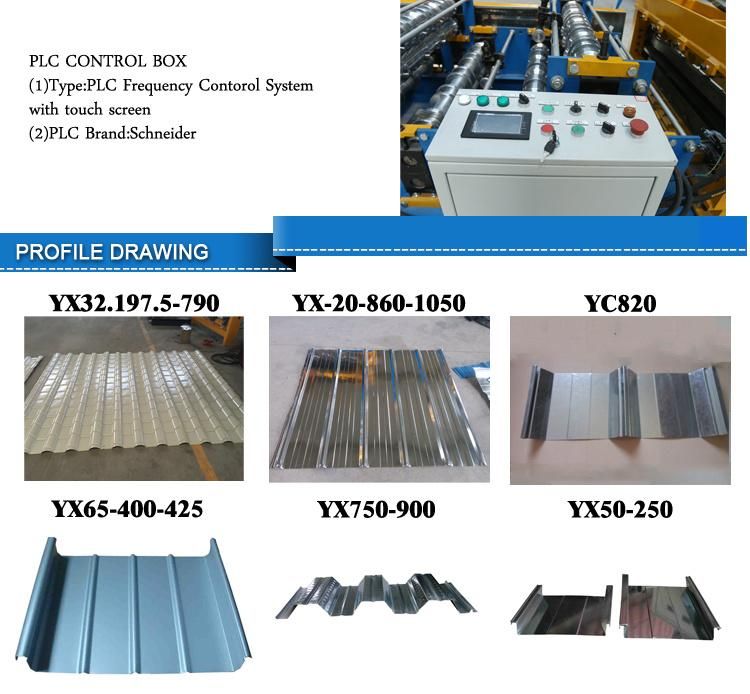

(4). PLC computer controlling system with touch screen;
(5). Hydraulic forming cutter;
(6). Protetive Cover;
G. Operational manual.

Feature: Al-Mg-Mn roofing panels have rust-proof and high-strength characteristic of wide range use in the bulidings.

Delivery Time: 60days;

1.	Motor Power	5.5KW*2
2.	Voltage	380V/50HZ/3PH
3.	Material Thickness	0.5-1.0mm
4.	Working Speed	8-12m/min
5.	Forming Steps	14
6.	Standing Height of Roofing	65mm
7.	Effective Width	400mm, 425mm
8.	Material Width	575mm, 600mm
