High Voltage Coil Spreader Machine with CNC or Servo System

Nantong Zhenhuan Trade Co., Ltd.
  • Machine Code：Zhzx-150
  • Working Voltage：380V, 3phase, 50Hz.
  • Lighting Voltage：36V AC
  • Environment Temperature：0-40ºC
  • Relative Humidity：Less Than 95%
  • Machine Weight：4000kg

Base Info

  • Model NO.：ZHZX-150,80
  • Machine Dimension：3200 X 1500 X 1800mm
  • Transport Package：Wood Package
  • Specification：custom made
  • Trademark：zhenhuan
  • Origin：Jiangsu
  • Production Capacity：One Piece for One Minute

Description

Machine codeZHZX-150ZHZX-80Coil size before forming  The length before forming, L12250mm1250mmPitch range before forming, L2400-2200mm180-1200mmCircle radius of coil nose ,R5-25mm2.5-15mmThe width of coil, A4-25mm4-20mmThe height of coil, B6-60mm6-30mmCoil size after forming  Straight edge length, L3190-1500mm150-800mmTotal length of coil, L4250-1800mm150-1000mmTotal width of coil, W0-800mm0-500mmThe elevate range for nose, H-50-350mm0-150mmClamp section for coil line4*6~25*60mm4*6-20*30mmAngle accuracy±0.1°±0.1°Dimensional accuracy±0.5mm±0.5mm
Machine parameterMachine codeZHZX-150ZHZX-80Working voltage 380V, 3Phase, 50Hz.380V, 3Phase, 50Hz.Lighting voltage36V AC36V ACEnvironment temperature0-40ºC0-40ºCRelative humidity≤95%≤95%Machine weight4000kg2500kgMachine dimension3200 x 1500 x 1800mm2000 x 100 x 1500mm

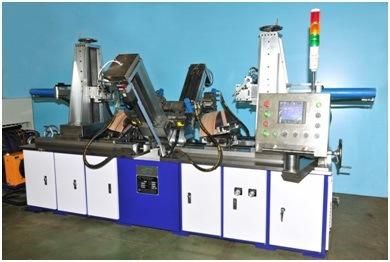

ZHZX-150
High Voltage Coil Spreader Machine with CNC or Servo System

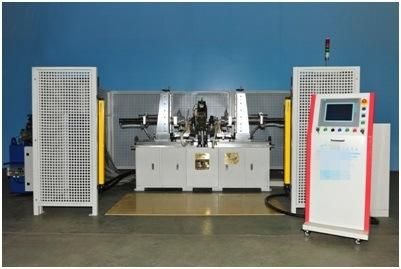

ZHZX-80
High Voltage Coil Spreader Machine with CNC or Servo System
High Voltage Coil Spreader Machine with CNC or Servo System
