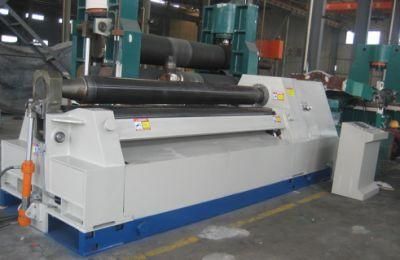

W11s Series up Roller Universal Rolling Machine (W11S 25X3200)
Shanghai Aluke Equipment Co., Ltd.- Usage：Metal Bending
- Metal Material：Steel
- Certification：ISO, CE
- Condition：New
- Thickness:25mm：Width:3200mm
- Transport Package：Steel Tray
Base Info
- Model NO.：W11S 25X3200
- Specification：International Standard
- Trademark：ALUKE
- Origin：China
- HS Code：846229
- Production Capacity：100 Sets, Month
Description
| Model | Unit | W11S-25*3200 |
| Pressure under up-roller | T | 230 |
| Max plate width | mm | 3200 |
| Length of rollers | mm | 3300 |
| Max. bending thickness (End) | mm | T20×B3200×Ømin1000(σs≤245Mpa) |
| Max. Bending Thickness(center) | mm | T25×B3200×Ømin1000(σs≤245Mpa) |
| The diameter of up-roller | mm | Φ425 |
| The diameter of down-roller | mm | Φ235 |
| The distance of two bottom rollers | mm | 380 |
| Rolling speed | m/min | About 4 |
| Number of roller | Root | 4 |
| Roller group number | Set | 1 |
| Main motor power | KW | 30 |
| Hydraulic motor power | KW | 11 |
| Move motor power | KW | 4 |
| Remark:380V/50Hz/3Phase(According to customer requirements changes) | ||
