6m / 12m Automatic Stacker for Collect The Products
Zhangjiagang City Saibo Science & Technology Co., Ltd.- Type：Hydraulic Machine
- Forging Forming Method：Free Forging
- Power Source：Electric
- Feature：High Efficiency
- Certification：ISO9001, CE
- Warranty：12 Months
Base Info
- Model NO.：12m
- Customized：Customized
- Advantage：Use Widely
- Condition：New
- Color：Blue and Yellow
- Transport Package：No Packing
- Specification：CE SGS
- Trademark：SAIBO
- Origin：Jiangsu, China
- HS Code：84552210
- Production Capacity：500sets,Year
Description

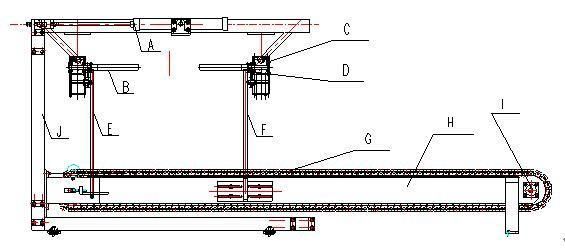

The Chart of Process Flow
Automatic stacker
1. Brief introduction:
A: Simple structure and beautiful outlook;
B: Easy to setting and operation
C: Little noise and high working efficiency.
2. Main technology parameter:
1. Motor power: 0.75KW
2. Max speed: 36m/min
3. Max stacking length: 12m/6m
4. Max stacking thickness: 300mm
5. Max stacking weight: 2 tons
6. Frequency unit imported from Korea LG
7. Computer PLC. Modles7-200, Simens
8. Computer operation screen is TD200 from Simens
Transmitting-- rolls output---- rolls moving---sheet entry---sheet landing----output
Our automatic stacker have two types: One is 12m and the other one is 6m.
We also can design it depend on client request
