• Model NO.：YX40-178
• Origin：Jiangsu, China
• HS Code：84552210
• Production Capacity：300set,Year

NoSpecification of the material1
 Suitable MaterialColored Steel plate, Galvanized steel2
 Width of the raw materialbased on profile drawing3Thickness0.4-1.0mm

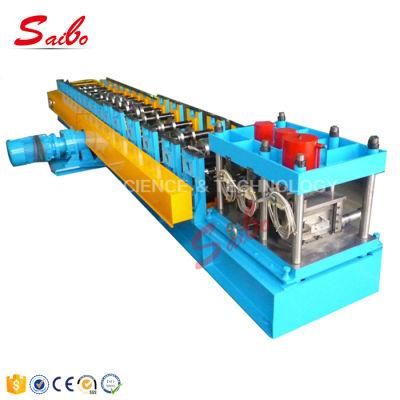

Detailed Description
1. Rolling product size: 6-178 mm
2. Working speed: 12-15m/min(not contain punching and cutting time)
3. Roller station: 7 stations are checking level
4. Material of roller: 12# forge steel finish machining, and quenching until to HRC58-62, nigrescence processing on surface)
5. Material of main shaft: 45# steel finish machining and then slack quench processing, DIA: 105mm
6. Main power: 5.5Kw
7. Electrical hydraulic station motor power: 5.5Kw

8. Hydraulic station pressure: 20Mpa
9. Electrical control system: Use industry computer PLC frequency conversion control, transducer use Japan Panasonic brand, encoder use Omron brand
10. Core shape size: 10500× 1200× 1000mm
11. Material of cutter: Cr12MOV
12. Rolling thickness: 6mm
13. Rolling length: 10m +-2mm
14. Driving mode: Two lins link of 1.5 inch
