• Model NO.：WX-3001
• Warranty：1 Year
• Carton：100*50*60cm
• Weight：60kgs
• Delivery Time：3-5days
• Ports：Shanghai, Ningbo
• Power：50W
• Transport Package：Carton or Wooden Case
• Specification：100*50*60cm
• Trademark：WANXIN
• Origin：China
• HS Code：84243000
• Production Capacity：50 Sets,Day

Basic Info.

Model NO. WX-3001 Warranty 1 Year Carton 100*50*60cm Weight 60kgs Delivery Time 3-5days Ports Shanghai, Ningbo Power 50W Transport Package Carton or Wooden Case Specification 100*50*60cm Trademark WANXIN Origin China HS Code 84243000 Production Capacity 50 Sets/Day

Product Description

    Manual Electrostatic Liquid Paint System/coating machine/ WX-3001

1. BRIEF INTRODUCTION

WX-3001 manual electrostatic liquid paint system apply to metallic,water-based and conductive painting.

 2. Technical data:

1.electrostatic painting gun

1).Model:WX-3001

2)Max.output voltage:DC60KV

3)Length of gun:220mm

4)Weight of gun:460g

5)Length of gun cable:5m

6)Length of paints hose:6m

7)Length of air tube:6m

8)Paint pressure:0.3Mpa,Max.:0.62Mpa

9)Air pressure:0.3Mpa-0.55Mpa,Max.:0.62Mpa

2.Electrostatic generator(control unit)

1).Model:WX-3001

2)Input voltage:220V

3)Frequency:50Hz

4)Output voltage:DC75V

5)Current consumption at alarm:20uA-80uA adjustable

6)high pressure safety cut-out:Air-break switch

7)Working temperature:0-45°C,humidity:20%-85%

3.Main features

I.high efficiency of spray

Excellent atomization and electrostatic surround effects,which make strongly adsorptive capacity,accordingly enhance the spray efficiency.

II. Save painting

Our designer to design the spray nozzles with low pressure but high atomization performance which make painting be up to high atomization effect,Coupled with the role of high-voltage electrostatic field strength,so that paint particles coated parts from different directions,never greatly increased the utilization of the paint

III. Operate simply

The gun body adopt the plastic composites,light in weight, feel good,the operator won't feel tired even thought long time work.

IV.Easy to maintenance

Specially designed components,is extremely durable,easy disassembly,easy to clean and maintenance

V. Wide Applicability

Apply to metallic,water-based and conductive painting.

VI. High performance security

The HV generator with function of automatic protection, under the circumstances of overcurrent, which can cut off the high voltage quickly and protect the safety for equipments and workers.

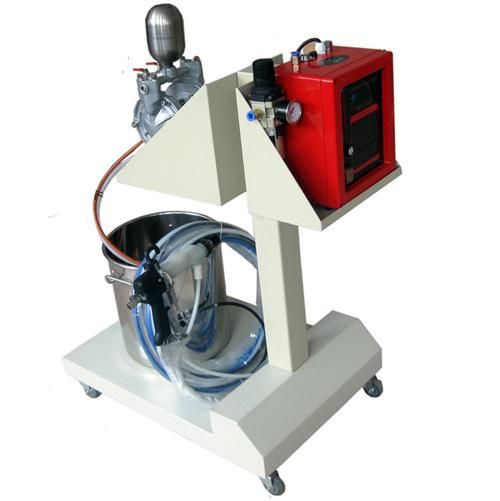

4.PICTURE REFERACNE:

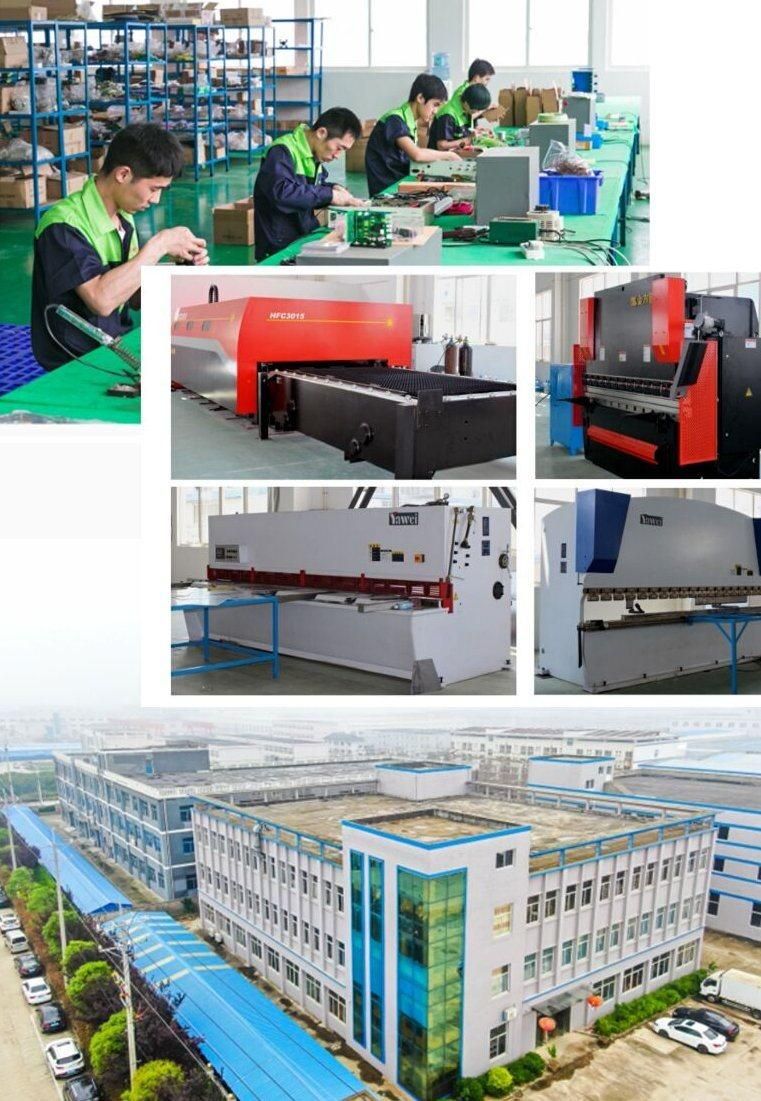

COMPANY Profile:

Jiangsu Xintu Machinery Co., Ltd is one of the leading Manufacturers in powder coating equipment or total line and flocking machine ,Our company found in 2011, with the factory in Jiangsu province nearby Shanghai city. it would take up a considerable 25,000square meters.
Almost 10 years experience in offering a wide variety products such as powder coating equipment,
flocking machine and their accessories, also if customers have a specific request can according to clients parameters to customized machine or line.
we have developed steady business relationship with clients from all over the world such as North America, Europe, middle East, Southeast Asia and so on.
We have experienced and skilled workers, QC team and QA system,also have ISO9001,CE,SGS certification.100%quality checking and tests before shipment.
We will offer you the most competitive price and best service!
