• Model NO.：oven
• Carton：Customized According to Requirement
• Delivery Time：3-5days
• Ports：Shanghai, Ningbo
• Power：Customized According to Requirement
• Transport Package：Wooden Carton or Carton
• Specification：CE, SGS, ATEX
• Trademark：WANXIN
• Origin：China
• HS Code：84243000
• Production Capacity：50 Sets,Day

Basic Info.

Model NO. oven Carton Customized According to Requirement Delivery Time 3-5days Ports Shanghai, Ningbo Power Customized According to Requirement Transport Package Wooden Carton or Carton Specification CE, SGS, ATEX Trademark WANXIN Origin China HS Code 84243000 Production Capacity 50 Sets/Day

Product Description

    Powder oven(Diesel)

The powder curing oven is a part of powder coating line.
Objective: The workpiece surface of powder coating heating to the specified temperature and heat preservation corresponding time, melting, flow flat, curing.

Process steps: Spraying good workpiece push curing oven, heating to the predetermined temperature (usually 185 degrees) and heat preservation corresponding time (20 minutes). The High temperature heat resistance Circulating fan can Can guarantee the oven internal places (including corner) have the same temperature. Blow on take out cooling namely get finished.



Powder Curing oven specification

1. Custom Dimension:customized according to requirement ;

                                Depends on workpiece size and pre-designed workpiece curing output;

2. Powder curing chamber Body: Galvanizing plates. stainless steel & structual steel;

3. Powder curing oven doors: Safe and good exposition resistance performace.

4. Hot air circulation mode: Bottom blowing-in and Top hot-air returning mode;

5. Exhaust air generated by diesel burning is not go into the hot air circulation;

6.Exhasut outlet special valve device automatically control the exhaust density after curing processing;

7.No extra outerside Duct is used ,Full inner circulation system reducing the heating loss and save the diesel cost and consumption.

8.Heat Insulation materials: 90~220mm is adjustable according to working temperature range requirement

9. Supply power: 220V/380V 50/60HZ

REMARKS:Generally,  we make  the curing oven according to actual requirement by customers and exclusive conditions such as workpiece size ,temperature requirement, curing output capacity etc. So please give me your more details and contact with me ,we will supply you best powder curing ovens and our best service to you.

Diesel Curing Oven:

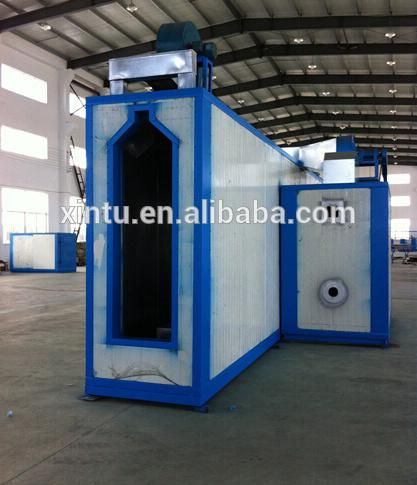

Curing Tunnel:

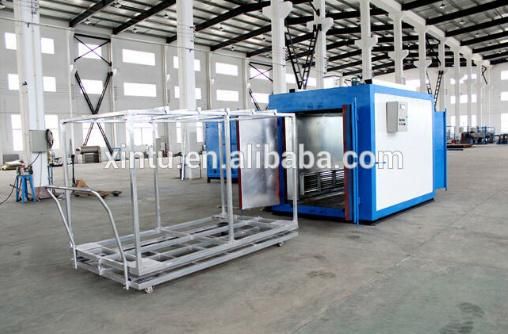

Double door Electrical Curing Oven:

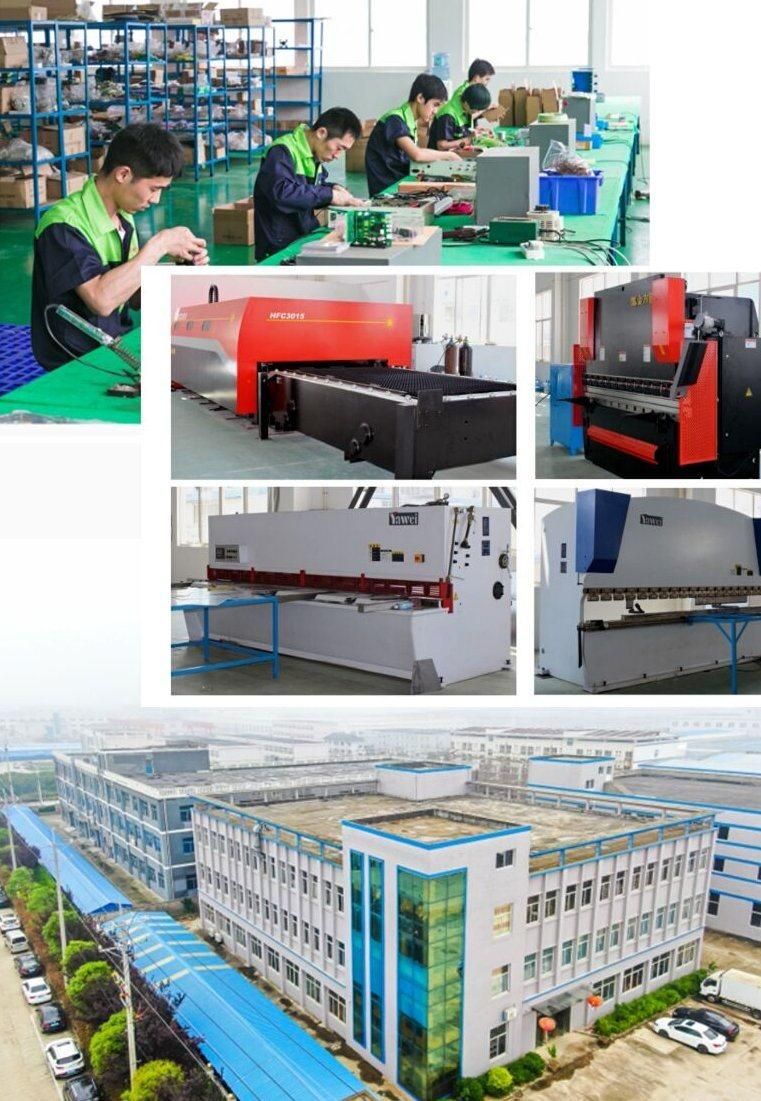

Company Profile:

Jiangsu Xintu Machinery Co., Ltd is one of the leading Manufacturers in powder coating equipment or total line and flocking machine ,Our company found in 2011, with the factory in Jiangsu province nearby Shanghai city. it would take up a considerable 25,000square meters.
Almost 10 years experience in offering a wide variety products such as powder coating equipment,
flocking machine and their accessories, also if customers have a specific request can according to clients parameters to customized machine or line.
we have developed steady business relationship with clients from all over the world such as North America, Europe, middle East, Southeast Asia and so on.
We have experienced and skilled workers, QC team and QA system,also have ISO9001,CE,SGS certification.100%quality checking and tests before shipment.
We will offer you the most competitive price and best service!
