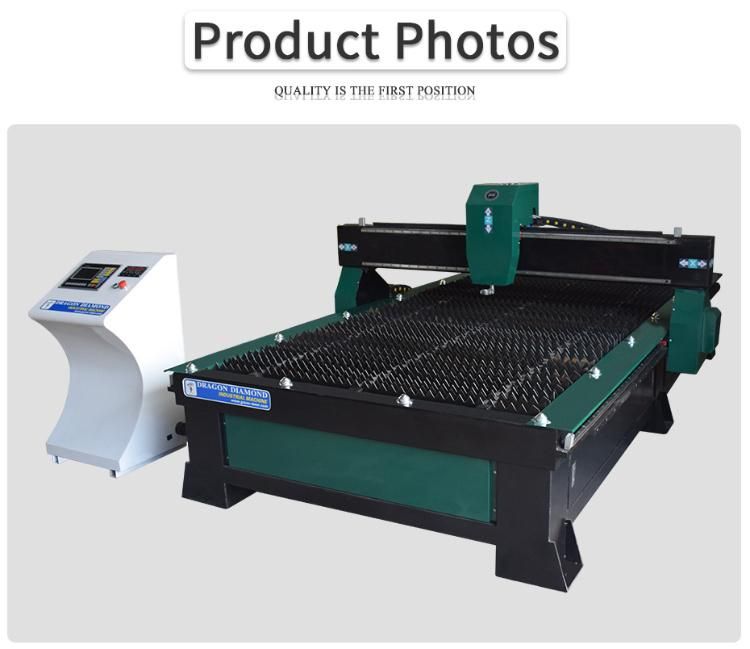

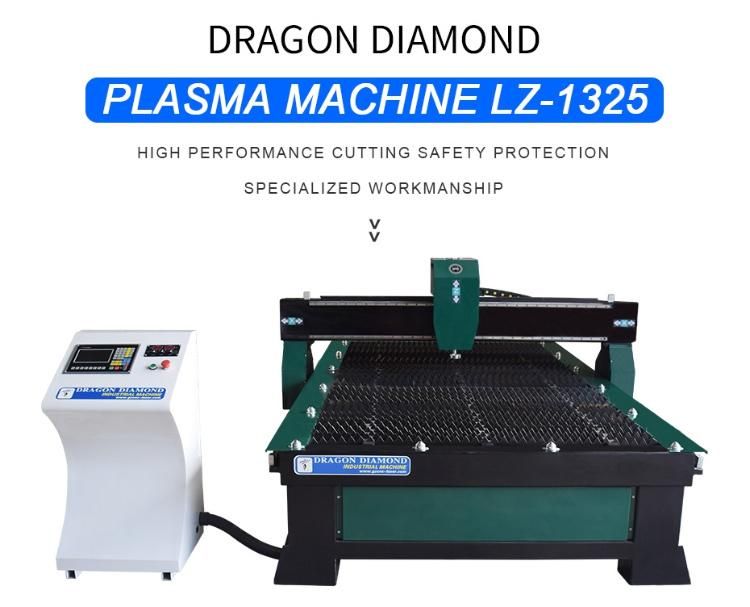

CNC Metal Pipe and Metal Sheet Plasma Cutting Machine 1325 CNC Router
Guangzhou Dragon Diamond Technology Co., Ltd.- Customized：Customized
- Layout：Horizontal
- Cutting Material：Copper, Carbon Steel, Iron, Aluminum, Metal Alloy, Stainless Steel, Galvanized Sheet;Titanium Plates;Brass
- Automatic Grade：Semi-Automatic
- Power Source：Electric
- Cutting Mode：Plasma Cutting
Base Info
- Model NO.：LZ-1325
- Working Area (X*Y*Z)：1300mm*2500mm*200mm
- Table Size：1360×2940mm
- Table Type：Water Surface Cutting Table
- Plasma Source：60-160A
- Voltage：AC 380V, 50,60 Hz
- Control System：Flcnc- F2100b
- Interface Type：USB
- Guider：Taiwan Hiwinlinear Guider, 20mm Thickness
- transmission Type：X, Y: Taiwan Hiwin Square Linear Guide , Rack Dri
- Warranty：24 Month with 24 Hours on-Line Technical Support
- Transport Package：Plywood
- Trademark：Dragondiamond
- Origin：China
- Production Capacity：50 Set,Sets Per Month
Description
Basic Info.
Model NO. LZ-1325 Working Area (X*Y*Z) 1300mm*2500mm*200mm Table Size 1360×2940mm Table Type Water Surface Cutting Table Plasma Source 60-160A Voltage AC 380V, 50/60 Hz Control System Flcnc- F2100b Interface Type USB Guider Taiwan Hiwinlinear Guider, 20mm Thickness transmission Type X, Y: Taiwan Hiwin Square Linear Guide , Rack Dri Warranty 24 Month with 24 Hours on-Line Technical Support Transport Package Plywood Trademark Dragondiamond Origin China Production Capacity 50 Set/Sets Per MonthProduct Description
CNC Metal Pipe and Metal Sheet Plasma Cutting Machine 1325 CNC Router>>>>>>>>>Feel free to contact us for quick response>>>>>>>>>
>>>>>>>>>Plasma machine kit also avaliable !!!!>>>>>>>>>>>
| NO. | Model | Plasma-1325 |
| 1 | Working Area | 1300x2500x200mm(Customizable) |
| 2 | Packing Size | 2150x3250x1500mm |
| 3 | Working Table | Water Surface Cutting Table |
| 4 | Plasma Sorce | 60A-200A (Optional) |
| 5 | Application Maximum cutting | 0.5-30mm(Depends on the material) |

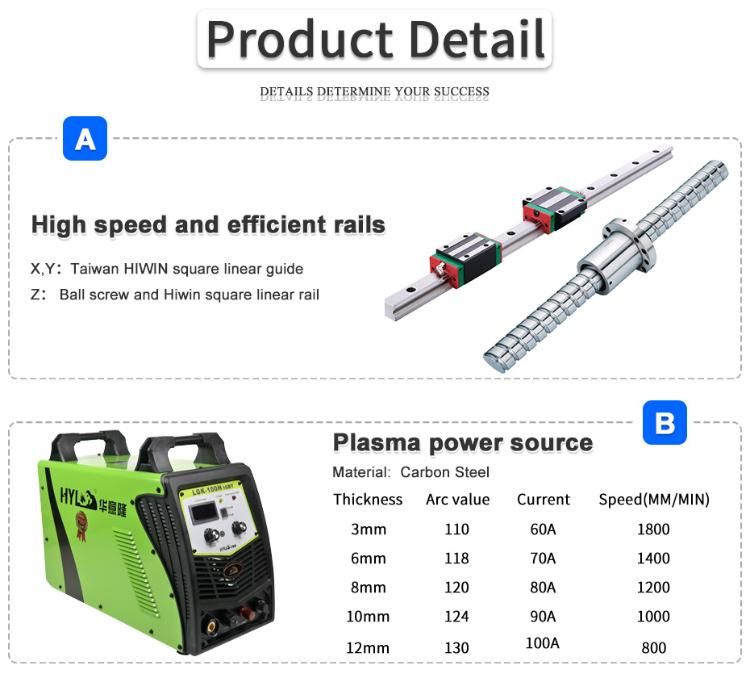

| 6 | Guider | Taiwan HIWIN linear guider, 20mm thickness |
| 7 | Transimission type | X, Y: Taiwan HIWIN square linear guide , Rack driving Z: ball screw and Hiwin square linear rail 20mm |
| 8 | Gas Pressure | Acetylene Gas or Propane Gas Max 0.1Mpa |

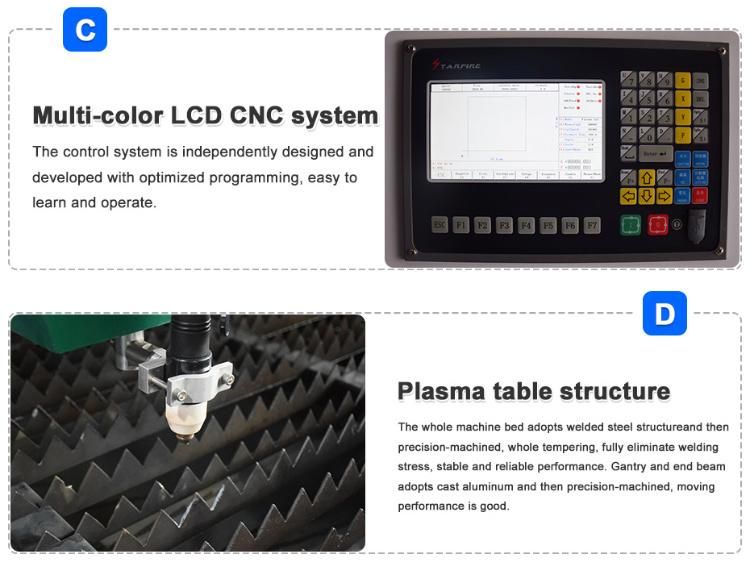

| 9 | Control System | FLCNC- F2100B |
| 10 | Torch Height Control Style | Plasma THC |
| 11 | Motor | Leadshine Stepper motor |
| 12 | Software | StarCAM |
| 13 | Machine Power | <3000w |
| 14 | Arc Mode | Arc Pressure Adjuster |
| 15 | Max. Rapid Travel Rate | 15m/min |
| 16 | Max. Working Speed | 10mm/min |
| 17 | Reposition Accuracy | 0.1mm |
| 18 | Command code | G code, DXF, *.mmg,*.plt, HPGL,BMP |
| 19 | Voltage | AC220V/110V,50HZ/60HZ |
Please feel free to contact us for more information!
