Welded Roll Wire Mesh Machine for Chicken Cage

Hebei Jiake Welding Equipment Co., Ltd.
  • Control Type：PLC
  • Customized：Customized
  • Condition：New
  • Automatic Grade：Automatic
  • Certification：CE, RoHS, GS, ISO9001, Ce
  • Type：Sand Casting

Base Info

  • Model NO.：DP-DNW-3
  • Material：Stainless Steel Wire
  • Hole Shape：Square
  • Surface Treatment：Galvanized
  • Mesh Size：1", 2", 3", 4" 25mm, 50mm, 75mm, 100mm
  • Color：as Customers′ Will
  • Wire Diameter：1.0-2.2mm,1.2-2.5mm
  • Aperture/Pitch：1", 2", 3", 4" 25mm, 50mm, 75mm, 100mm
  • Mesh Width：1.2m, 1.5m, 2m, 2.5m
  • Motor：4kw; 5.5kw
  • Welding Speed：80-180 Rows,Min
  • Pressure Mold：Spring Pressure
  • Raw Material：Gi Wire, Black Wire, Stainless Steel
  • Transport Package：Main Welding Machine with Plastic Package
  • Specification：60kva*4; 60kva*5, 60kva*7
  • Trademark：JIAKE
  • Origin：Hebei, China (Mainland)
  • HS Code：8515809090
  • Production Capacity：30 Sets a Month

Description

TypeDP-DNW-1DP-DNW-2DP-DNW-3Wire diameter0.4-0.65mm0.65-1.8mm/0.8-2mm1.0-2.2mm/1.2-2.5mmAperture/pitch1/4", 1/2"
6.25, 12.5mm1/2", 1", 2", 3", 4"
12.5, 25, 50mm1", 2", 3", 4"
25, 50, 75, 100mmMesh widthMax.1m, 1.2mMax.1.2m,1.5m, 2mMax.1.2m, 1.5m, 2m, 2.5mMotor2.2kw2.2kw;4kw4kw;5.5kwWelding speedMax.75 rows/minMax.120-180 rows/minMax.80-120 rows/minTransformer50kva*360kva*4;60kva*5, 60kva*770kva/80kva*5/6/7/8Weight1.5T2T, 2.5T2T, 2.5T, 3T, 3.5T


III Machine Advantage

1. Separate control
Our machine adopts separate control technology, 1 switch, 1 SCR and 1 electric board controls 2pcs welding transformers, making the welding transformers working separately to reduce the capacity requirement of power transformer, reduce the impact current.

2. About the welding transformers
We use sealed air cooling welding transformer or water cooling welding transformers(high temperature countries), with copper inside, the scrap&slag won't fly in easily while welding.Old type machine use no sealed welding transformers, with aluminum inside, easily burned.

3. About the button&speed meter
Our machine designed new position for the button&speed meter.It adopts Delta variable-frequency which can adjust frequency and save energy.They will not broken easily like before and be much easier to operate now.

4. Fame brand
We will use Schneider electric components, Delta inverter in the electric control cabinet, Mengniu brand main motor & Guomao brand reducer which is famous in Jiangsu Changzhou, it will be equipped with inverter.

IV Auxiliary Equipment

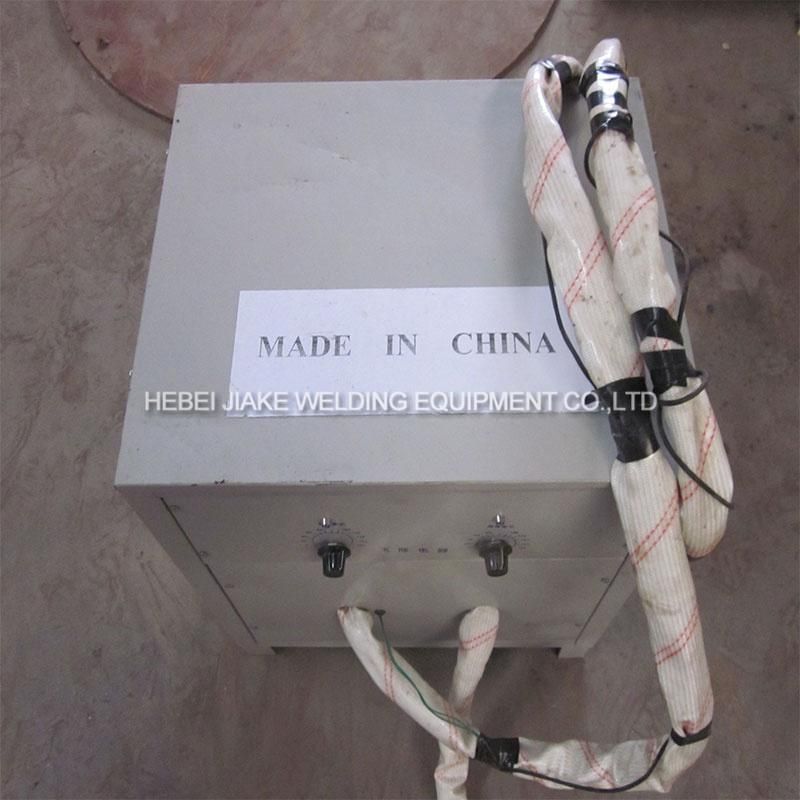

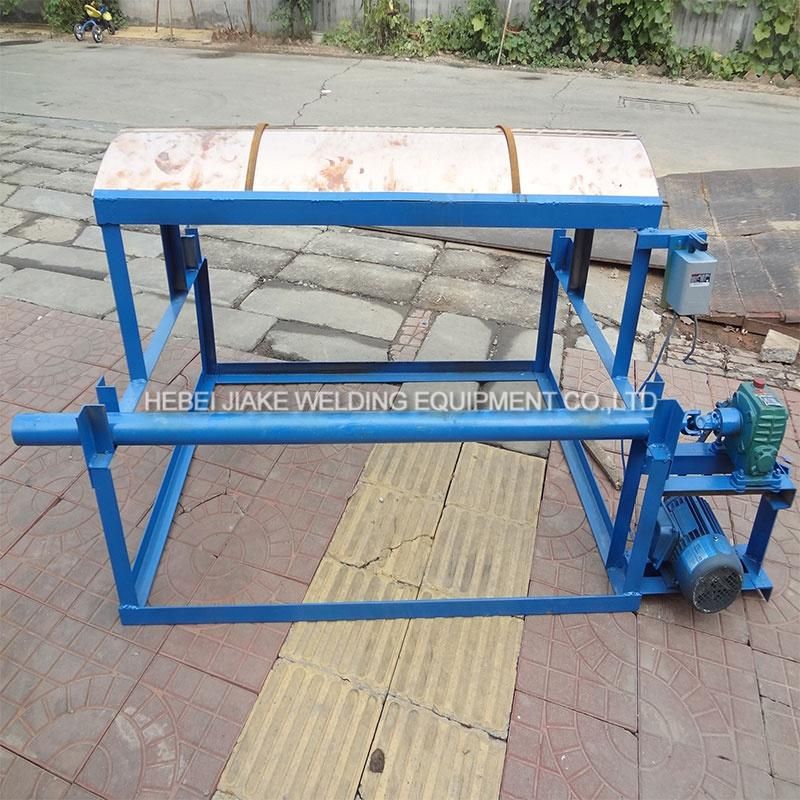

mesh mending machine                           mesh mending table

Welded Roll Wire Mesh Machine for Chicken Cage Welded Roll Wire Mesh Machine for Chicken Cage

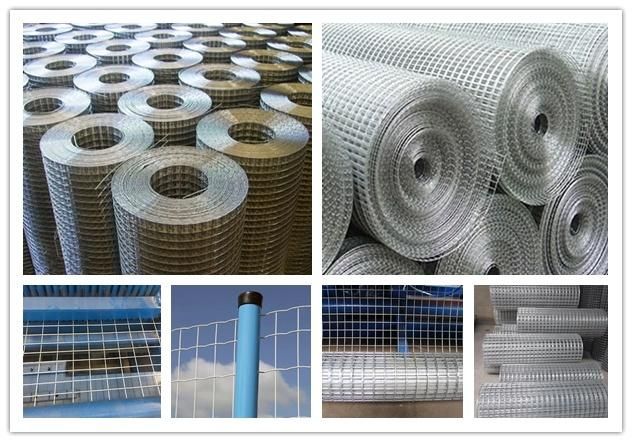

V Finished Product & Application

 Welded Roll Wire Mesh Machine for Chicken Cage


VI FAQ

Q: What's the machine price?

A: We need to know your wanted wire diameter, mesh hole size and mesh width.

Q: What's the production capacity?

A: If cross wire space is 1/2", one hour can weld about 90m length. If cross wire space is 1", one hour can weld about 180m length. if cross wire space is 100mm, one hour can weld about 270m length.

Q: Can you make voltage according to my requirement?

A: yes, we can make 3 phase, 380V/220V/415V/440V, 50Hz or 60Hz etc.

Q: What's the payment terms?

A: 30% T/T in advance, 70% T/T before shipment, or 100% irrevocable L/C at sight, or cash etc.

    It is negotiationable.

Q: How to install the machines?

A: Please check below "After sales service".
