• Model NO.：CL-2235
• Material：Spgt1.5mm
• Electric System：PLC
• Fan Motor Power：5.5kw
• Voltage：380V, 3phase
• Frequency：60Hz
• Heating Method：Infrared
• Riello Burner：20, 000 Kcal
• Wool Rock Board：100-150mm
• Warm up Time：15-30min
• Transport Package：Negotation
• Specification：LWH 22m *2.5M,4.45m * 3.5m
• Trademark：COLO
• Origin：Hangzhou. China
• HS Code：8424899990
• Production Capacity：1 Line for One Month

inner SizeL14x W1.8x H3.2mL14x W(3.3-4.3)x H3.2mRock warm board100mmedge SPGCCt=1.5mmbottom structure10# square tubeBody structure8# square tubeBurner of drying200,000 Kcal  ,1pcs (Riello)Burner of curing400,000 Kcal  ,1 pcs (Riello)fan motor5.5KW ,1pcs7.5kw 1pcs
Equipment Information

Insulation Form	Thickness 100mm Insulation Form, External panel by cold roll steel,0.6mm thickness,  Internal panel by Galvanized Steel, 1 mm thickness.
Main Frame	A3 Steel Panel(δ=2mm and 3mm)
Base Support	Square pillar and Channeled Steel
Cover	A3 Steel Plant(δ=2mm and 3mm)
Air Duct	Galvanized Steel Panel (T=1.2mm)
Filters	Stainless Steel Made
Rail Support	Channel Steel and Steel Profile

Powder coating Drying oven
1) Dimension: L6.5*W1.0*H 3.4m
2) Material : SGCC/=1.5mm
3) Rock wool plate thickness:100mm
4) Disassembled structure, easy to transport and install.
5) Under frame:10# square tube,inner frame 6# square tube
6) Heating method :diesel ,with 20,000 Kcal Riello Burner
7) Fan motor power: 5.5kw,380V,3phase 50Hz 1 set
8)PLC electric control system*1set

Curing oven
  1) Dimension:L6.8*W1.2*H 3.6m
  2)Material:100mm thick rock wool board.internal material SPGt1.5mm.
   3) Disassembled structure, easy to transport and install.
   4) Underframe:square tube 10#,inner frame is 6# square tube
   5)Heating with Gas burner 40,0000 kcal (Italy Riello brand) 1 set
   6) Fan motor power:7.5kw,380V,3phase 50Hz 1 set
   7)PLC electric control system*1set

Oven Parameters

Temp Control Accuracy	±5ºC
Temp. Range	Room Temp. - 200 C
Tunnel Hot Air Circulation	12637m3/h
Heat Up Time	15~20min ( Room Temp to 180 C)
Temp Control Mode	PID Automatic Calculating Controller

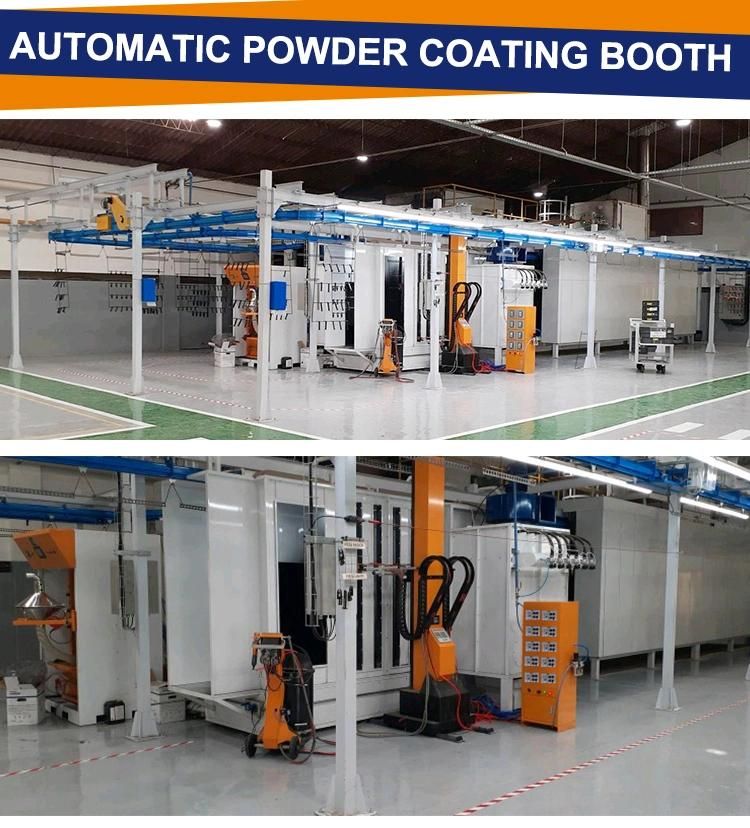

Colo have many years experiences on powder coating. We are a typical Chinese supplier
and specialized in the research, development and production of powder spray booths,
powder coating oven,powder coating gun,powder coating line. We insist in offering superior
quality products and efficient service.

If you are interested in any of our products or would like to discuss a custom order, please feel
free to contact us. We are looking forward to forming successful business relationships with
new clients around the world in the near future.
