• Model NO.：LSP1325
• Power Source：Electric
• Cutting Mode：Plasma Cutting
• Plasma Current：60A
• Control System：Starfire
• Transmit Way：Gear Wheel
• Guide Rail：Linear Guide Rail
• Transport Package：Plywood Box
• Specification：Work size 1300*2500
• Trademark：Lansen
• Origin：China
• HS Code：8465990000
• Production Capacity：300sets,Month

Model

LP-M1560P

Working area(mm)

1500x6000mm

Power supply

Huayuan(China), Thermadyne or Hypertherm (Import from USA)

Plasma currency

60A/100A/160A/200A

Control system

DSP or Beijing Start

Cutting thickness

Depend on plasma currency

Cutting speed

100-8,000mm/min

Moving speed

0-50,000mm/min

Precision

±0.1mm

Repeating precision

±0.8mm

Power

8.5-10.5kw

Voltage

380v/50Hz

Working atmospheric pressure

0.65-0.7Mpa

Communication interface

USB port

Arc pressure adjuster

Hipost AHC-2C

Software support

FASTCAM, AutoCAD, Type 3 etc. Software

Instruction format

G code

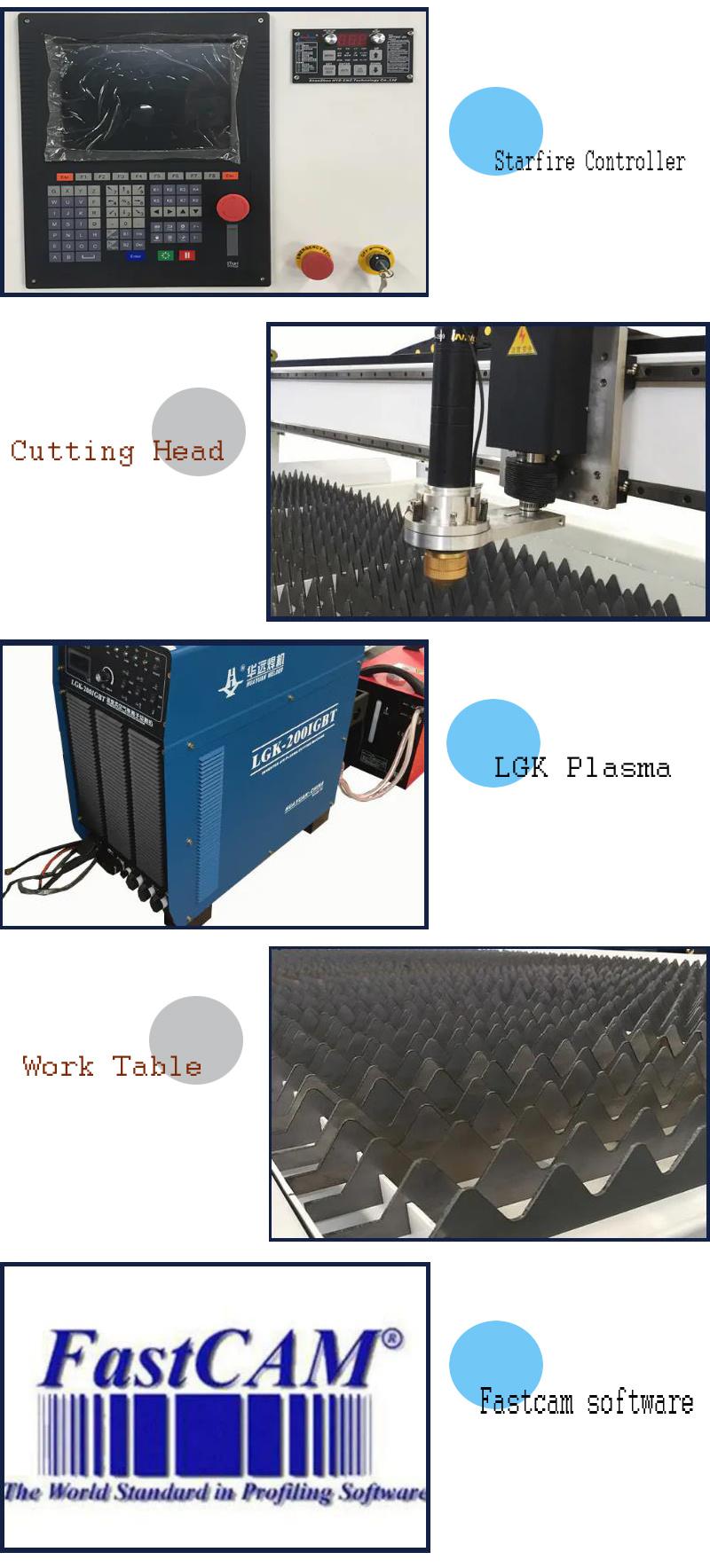

Machine parts:

Machine body: Thick steel welded bed (rugged and reliable, no distortion, carrying heavy, strong stability)

Gantry:Use 10mm thickness steel (very stronger, more durable and stability)

Plasma Power: international famous brands, low failure rate

Rail: Taiwan Hiwin side rails (bearing, guide, control precision effects)

Rack: straight teeth (high speed, high precision)

Control System: Beijing StarFire (Sino-US joint venture, stable performance, simple operation)

Countertops: 4mm serrated rack (load capacity, accuracy is more accurate)

Bed structure: GB artificial aging overall secondary vibration welding bed

Electrical accessories: High quality electronic components, high flexible shielded cable (resistant to water, bending, anti-oil).
