• Model NO.：HJ-A013256
• Metal Material：Steel
• Max.Inlet Wire Dia.：22mm
• Outlet Diameter：6.5-24mm
• Max. Number of Block：15
• Block Dia.：500mm
• Dimension：According to Different Needs
• Packaging：Seaworthy Packing or as Customers′ Request
• Price：Factory Price
• After Sales Service：Engineers Available to Service Machinery Overseas
• Warranty：1-3 Years
• Transport Package：Seaworthy Packing
• Specification：SGS; ISO
• Trademark：HangJi
• Origin：Shaanxi, China
• HS Code：8455219000
• Production Capacity：25 Sets,Year

Basic Info.

Model NO. HJ-A013256 Metal Material Steel Max.Inlet Wire Dia. 22mm Outlet Diameter 6.5-24mm Max. Number of Block 15 Block Dia. 500mm Dimension According to Different Needs Packaging Seaworthy Packing or as Customers′ Request Price Factory Price After Sales Service Engineers Available to Service Machinery Overseas Warranty 1-3 Years Transport Package Seaworthy Packing Specification SGS; ISO Trademark HangJi Origin Shaanxi, China HS Code 8455219000 Production Capacity 25 Sets/Year

Product Description

Product Description

Product Application of rolling mill for iron rod making

1. Final product: 5.5-12mm wire rod, 8-32mm rebar, 40-120mm round bar,strip steel etc;

2. Raw material: steel scrap or billet

(billet section size:60*60mm,80*80mm,100*100mm,120*120mm,130*130mm,150*150mm,180*180mm etc;
length: 3m,6m or 12m )

3. Annual capacity: 50,000T/Y; 100,000T/Y; 150,000T/Y;  200,000T/Y;   300,000T/Y; 500,000T/Y;  800,000T/Y etc.

4. Steel type:Low carbon steel, middle carbon steel, high carbon steel,quality carbon structural steel, alloy steel, cold heading steel ,welding steel,titanium alloy,tool steel etc.

Main Features:

1) Complete continuous rolling,control rolling,control cooling rolling process setting.

2) Adopting advanced world famous brand components in machine key parts ,electric parts and operation parts.

3) The rolling process is smooth,finished products have high precision and quality with high production yield.

4) Running in a high automatization and intellectualization,save manpower.

5) Comprehensive service for equipment supply, layout design, after-sales installation and commissioning services.


Detailed Images:

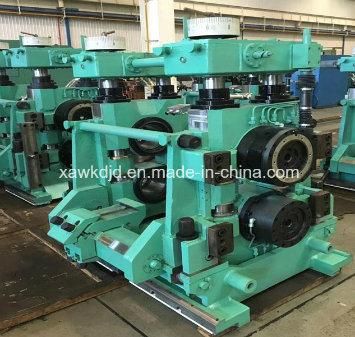

Roughing/intermediate angle steel hot rolling mill
Name:Housingless Mill "short stress  path"
Brand:Hangji
Original: China
Feature:
-- Long roll lifetime.
-- The roll gap neutrality better and easy to operate.
-- Fast roll change, high automation efficiency etc.
-- Short stress line model much better for wire rod
   and bar production.

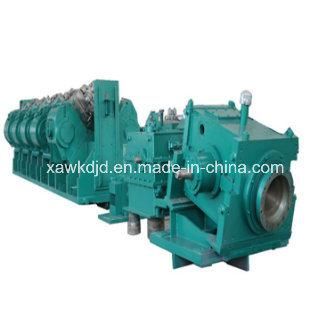

Wire rod block mill/monoblock

Name:Top cross 45 ° no twist heavy duty block mill train
Brand:Hangji
Original: China
Feature:
-- High load capacity
-- Low maintenance oil film bearing design
-- Multi-groove rolls for maximum roll utilization
-- Universal stand design allows interchangeability from one stand position to another
-- Interlocks with mill controls

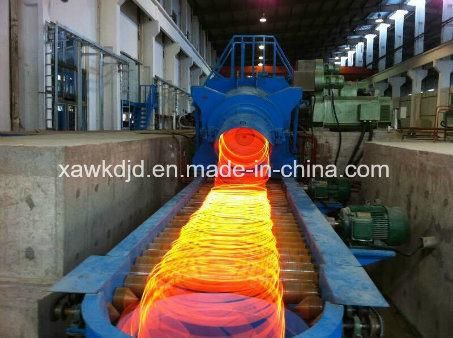

Finishing mill(wire rod block mill/monoblock)
Name: Top cross 45 ° no twist heavy duty block mill train
Brand: Hangji
Modle: 90m
Original: China
Feature:
-- Unmatched production levels
-- Improved laying pattern and coil package
-- Minimized vibration and downtime
-- Patented technology
-- Electric linear actuator replaces hydraulic lines
-- Retrofits available for existing High Speed Laying Heads

Our Company

Professional Manufacturer and Service Solutions Provider For high-speed wire rod /rebar production Line

Xi'an WeiKeduo Electrical and Mechanical Equipment Co., Ltd. with over 20 years experience in metallurgical industry, commits to high quality rolling process design and hot angle steel hot rolling mill manufacturing for  wire rod, bar,rebar, tmt bar and other special steel production line,especially good at high-speed line design,as well,comprehensive installation guidance service.
As a high-tech enterprise with ISO9001 certification & EU, BV certification, "Hangji" brand is well known in China and overseas, with more than 10 patents for steel rolling mahines, Xi'an weikeduo has the steel Bar and Wire rod Research Center in Xi'an with a complete R & D, production and after-sales service system



Our Service

Pre-Sales Service:

* Inquiry and consulting support.

* Sample testing support.

* Visiting our Factory.


After-Sales Service:

* Training how to instal the machine, training how to use the machine and commissioning.

* Engineers available to service machinery overseas.

                                             Please contact us freely if any need
