• Model NO.：QC12K
• Dimension(L*W*H)：4640*1700*1700
• Weight：5000kg
• Warranty：12 Momthes
• Main Motor( Kw)：7.5
• Place of Origin：Anhui, China (Mainland)
• Voltage：380V,220V,415V
• Rated Power(Kw)：15
• After Sale Service Provided：Overseas Third-Party Support Available
• Product Name：Hydraulic Metal Sheet Cutter Machine
• Color：Optional
• Transport Package：with Plasic Bag or According to The Customers′ Req
• Specification：4640*1700*1700
• Trademark：Hydraulic Metal Sheet Cutter Machine , Hydraulic G
• Origin：China
• HS Code：8462399000
• Production Capacity：50 Sets, Month

Basic Info.

Model NO. QC12K Dimension(L*W*H) 4640*1700*1700 Weight 5000kg Warranty 12 Momthes Main Motor( Kw) 7.5 Place of Origin Anhui, China (Mainland) Voltage 380V/220V/415V Rated Power(Kw) 15 After Sale Service Provided Overseas Third-Party Support Available Product Name Hydraulic Metal Sheet Cutter Machine Color Optional Transport Package with Plasic Bag or According to The Customers′ Req Specification 4640*1700*1700 Trademark Hydraulic Metal Sheet Cutter Machine / Hydraulic G Origin China HS Code 8462399000 Production Capacity 50 Sets/ Month

Product Description

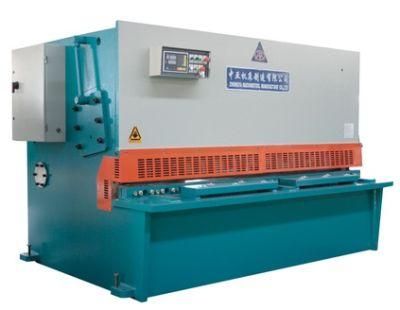

ZYMT Hydraulic Shearing Machine with ESTUN E21S Controller
1. Digital Display
2. 2 year warranty
3. CE/ISO
4. Ball Lead Screw and Liner Guide for Opt


Optional Controllers:
China ESTUN E21S,E200S
Holland DELEM DAC310
German ELGO P40
Italy HT071

QC12Y Series Digital swing Beam Shear
Standard system: Shenzhen Sanyuan E18(MD11)
Optional Digital System: China ESTUN E10S

Equipments for QC12Y&QC12K

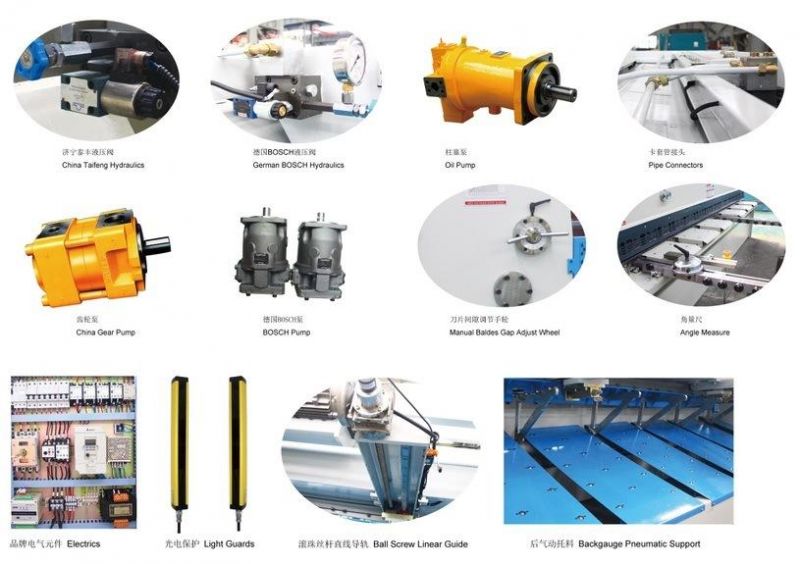

China Taifeng Hydraulics
German BOSCH Hydraulics
Oil Pump
Pipe Connectors
China Gear Pump
BOSCH Pump
Manual Blades gap Adjust Wheel
Angle Measure
Electrics
Light Guards
Ball Screw Linear Guide
Backgauge Pneumatic Support
QC12Y Features
The machine is metal plate welded structure, with hydraulic transmission and accumulator return, typical of an easy operation, reliable performance, and nice appearance, fitted with digital controller.
Indication by indicator is provided for adjustment of blades clearance, for a handy and prompt adjustment.
Alignment device with lighting and control device for shearing stroke are set.
Worktable with balls for material feeding convenient, to minimize fish tail with sheet bar and to reduce frictional resistance.


QC 12K Features
The machine is fitted with CNC controller special for shearing machines.
The position of rear stopper is displayed in real-time manner.
Multi-step programming function is available and the rear stopper is able for automatic operation and continuous positioning, to achieve an automatic adjustment for position of rear stopper.
It is provided with counting function for shearing, to display the shearing numbers in a real-time manner, able for power-failure memory of position of rear stopper, procedures, and parameters.
Backgauge with precision ball screw and linear guide, to ensure the positioning precision, so that bring the higher precision prcsessing.

QC12K Series Technical Parameters

Controller System
DAC310
Bright LCD 128×64 display
Backguage control, Gap control, Stroke length limitation.
Actual and programmed position visualization, Stock counter,
Programmable up to 100 steps.
Panel-based housing;
Servo control/unipolar/AC two-speed control;
mm/inch transmission;

E200S
Backguage control, bus mode control servo system;
Stroke length limitation, double pragrammable digital output;
Pragram memory of up to 40 program, up to 25 steps per program;
One side positioning, retract of function.
mm/inch transmission, Chinese/English transmission;
240×128 pixels LCD display.

E21S
Backguage control, control for general AC motor, frequency inverter;
Intelligent positioning, double programmable digital output;
Stock counter, program memory of up to 40 programs, up to 25 steps per program;
One side positioning, retract of function.
One key backup, restore of parameters;
mm/inch transmission, Chinese /English Transmission; LCD display;


P40
Analog or digital outputs for 1-3 speed operation 16 free programmable digital in-/outputs
Program memory(1000 sets)
Angle control/gap control/backguage
Limitation of the cutting length
Material List for angle and gap control

HT071
Regulated power supply for encoder or push pull/o.c.
optional line 12 Vdc±5% 120 mA
Optoisolated inputs
High luminosity led display having 6 digits plus sign for position,
2 digits fpr cycles and for programs.
Possibility to save up to 99 programs composed of 20 cycles.
Each cycle can count 65000 repetitions at maximum
Data and programs are saved in a flash memory without floating battery Ip 65, polycarbonate, water and abrasion-proof keyboard with tactile sensitivity.

China ESTUN E10S
X axis and Y axis position display;
Resolution:0.1mm or 0.0001 inch;
Stock counter, 2 timer integrated;
One side positioning indication;
Sofware limitation;
Power-off memorization.



Performance characteristic:
1.Steel plate welded structure,hydraulic transmission,accumulator return,convenient operation,reliable performance,beautiful appearance
2.Edge adjustment signs,adjust light and quickly,continuously variable transmit
3.Lighting device on the line,and continuously variable adjustment of upper tool carrier itinerary
4.Fence type safety protection device
5.Back gauge adopt E10 NC,low noise,high precision


 Parameters:

Model	Cutting thickness (mm)	Cutting width (mm)	Cutting angle (°)	Backgauge range(mm)	Stroke number (times/min)	Main motor (kw)	Weight (kg)	Overall dimensions (L*W*H)(mm)
4*2500	4	2500	1.5	20-400	10	5.5	3800	3040*1610*1620
4*3200	4	3200	1.5	20-600	10	7.5	5000	3840*1610*1620
4*4000	4	4000	1.5	20-600	8	7.5	6500	4600*1700*1700
4*6000	4	6000	1.5	20-600	5	11	11000	6460*2100*2300
6*2500	6	2500	1.5	20-600	10	7.5	5000	3040*1610*1620
6*3200	6	3200	1.5	20-600	9	7.5	6500	3840*1610*1620
6*4000	6	4000	1.5	20-600	8	7.5	8000	4620*1750*1700
8*2500	8	2500	1.5	20-600	10	7.5	6000	3040*1700*1700
8*3200	8	3200	1.5	20-600	8	7.5	7200	3860*1700*1700
8*4000	8	4000	1.5	20-600	8	15	8800	4640*1700*1700
10*2500	10	2500	1.5	20-600	9	15	7300	3040*1700*1700
10*3200	10	3200	1.5	20-600	9	15	8000	3860*2000*1700
10*4000	10	4000	1.5	20-600	8	18.5	12000	4650*2100*2000
12*2500	12	2500	1.5	20-800	9	18.5	9000	3140*2150*2000
12*3200	12	3200	1.5	20-800	9	18.5	10800	3880*2150*2000
12*4000	12	4000	2	20-800	8	18.5	13000	4680*2150*2000
16*2500	16	2500	2	20-800	9	18.5	11000	3140*2150*2000
16*3200	16	3200	2	20-800	8	18.5	13000	3880*2150*2000
16*4000	16	4000	2.5	20-800	8	22	16300	4650*2150*2200
20*2500	20	2500	2.5	20-800	8	30	15500	3440*2300*2500
20*3200	20	3200	2.5	20-800	8	30	18000	4510*2350*2700
20*4000	20	4000	2.5	20-800	5	30	21000	4850*2350*2700
25*2500	25	2500	3	20-800	5	37	19000	3200*2700*2900
25*3200	25	3200	3	20-800	5	37	23000	4200*2700*3000
30*2500	30	2500	3.5	20-1000	5	37	23500	3300*2900*2900
30*3200	30	3200	3.5	20-1000	5	37	27500	4200*2900*2900
