• Model NO.：LKX1026
• Automation：Automatic
• Certification：Ce Is9001
• Type：Camless
• Transport Package：Wooden Case
• Specification：1200*800*1600MM
• Trademark：LIKEXING
• Origin：Made in China
• HS Code：84633000
• Production Capacity：500sets,Year

Basic Info.

Model NO. LKX1026 Automation Automatic Certification Ce Is9001 Type Camless Transport Package Wooden Case Specification 1200*800*1600MM Trademark LIKEXING Origin Made in China HS Code 84633000 Production Capacity 500sets/Year

Product Description

PRODUCT DESCRIPTION

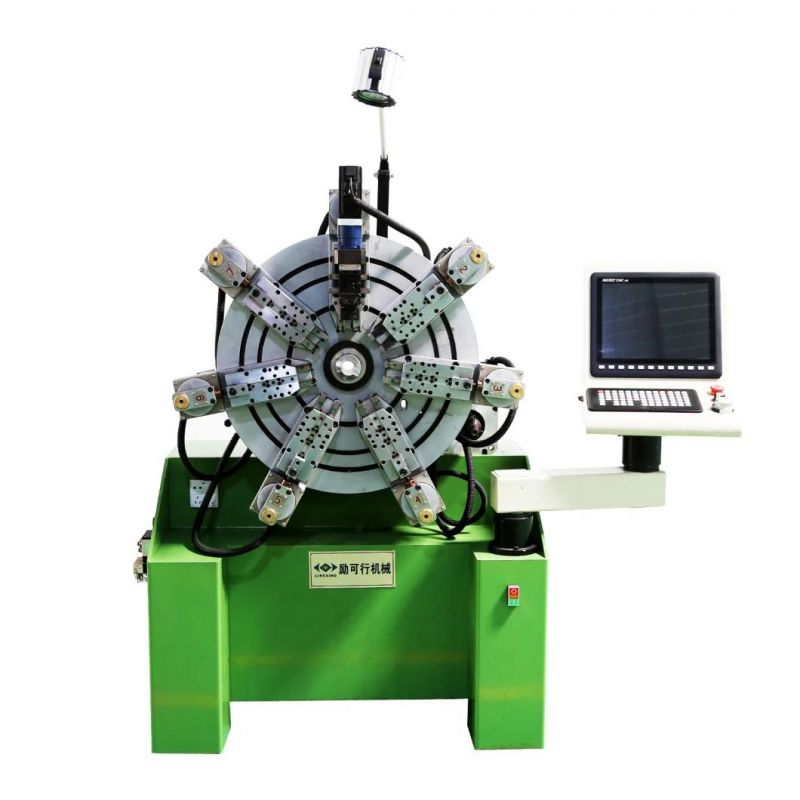

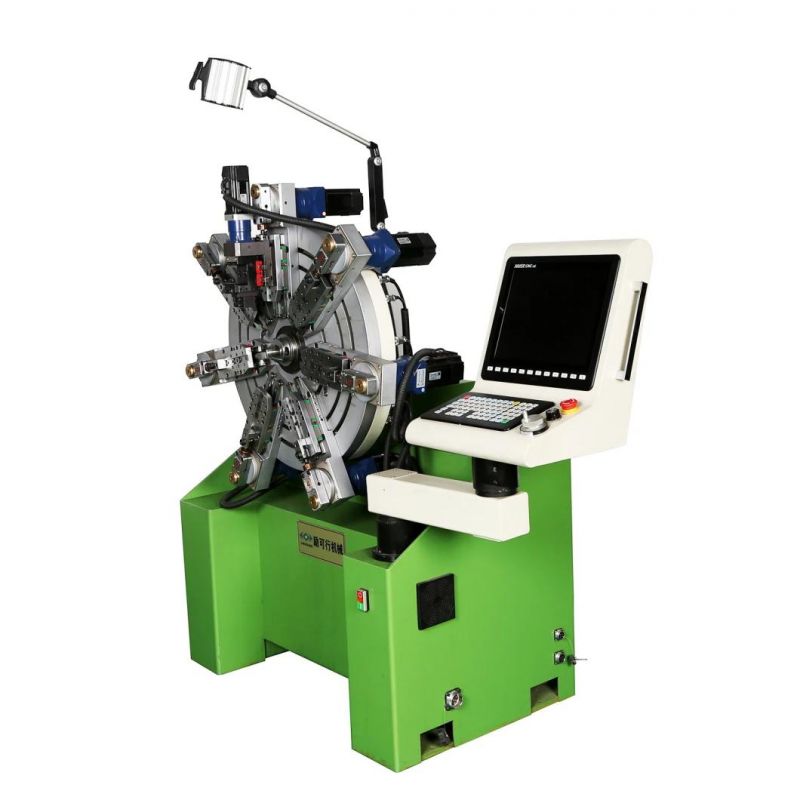

LKX1026
Easy programming , precise & stable wine feeding mechanism.

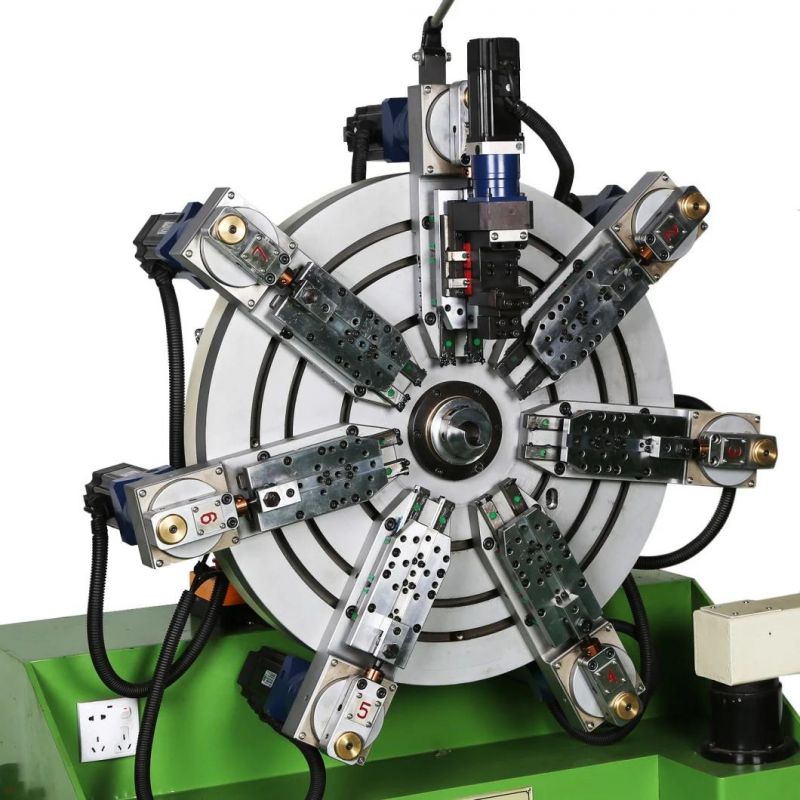

Divided into eight slide axis, mandrel(quill) axis,  wire feeder and coiling spinner(optional) axis.
The wire length, production speed and quantity of production are all displayed on the screen.Online programming and debugging is convenient.
It's suitable for special shaped spring, torsion spring, extension spring and many special designs can be produced.





TECHNICAL PARAMETER

Model	LKX1026
Wire diameter (mm)	Ø0.3~Ø2.6
Max feeding Length	999999
Instruction value of wire feed	±0.01~±9999.99mm
Instruction value of cam	±0.10~±359.90
Servo motor of wire feed (kw)	2.7
Machine size(mm)	1200×800×1600
Weight (Kg)	1000
Power	380V 3-Phase

FAQ:
Q: What's the Min. order?
A: One set.

Q: What is the payment term?
A: The payment term is 30% deposit as PO confirmed and the 70%  after the shipment. We also accept other payment term according to the agreement.

Q:What's the delivery time?
A:Normally the delivery time of the machine is 30days after receicing deposit.But it depends on the machine model. Some of them could be shipped within several days, because normal machine type is current stock.
