• Model NO.：LKX1026
• Automation：Automatic
• Certification：Ce Is9001
• Type：Camless
• Transport Package：Wooden Case
• Specification：1200*800*1600MM
• Trademark：LIKEXING
• Origin：Made in China
• HS Code：84633000
• Production Capacity：500sets,Year

Basic Info.

Model NO. LKX1026 Automation Automatic Certification Ce Is9001 Type Camless Transport Package Wooden Case Specification 1200*800*1600MM Trademark LIKEXING Origin Made in China HS Code 84633000 Production Capacity 500sets/Year

Product Description

PRODUCT DESCRIPTION

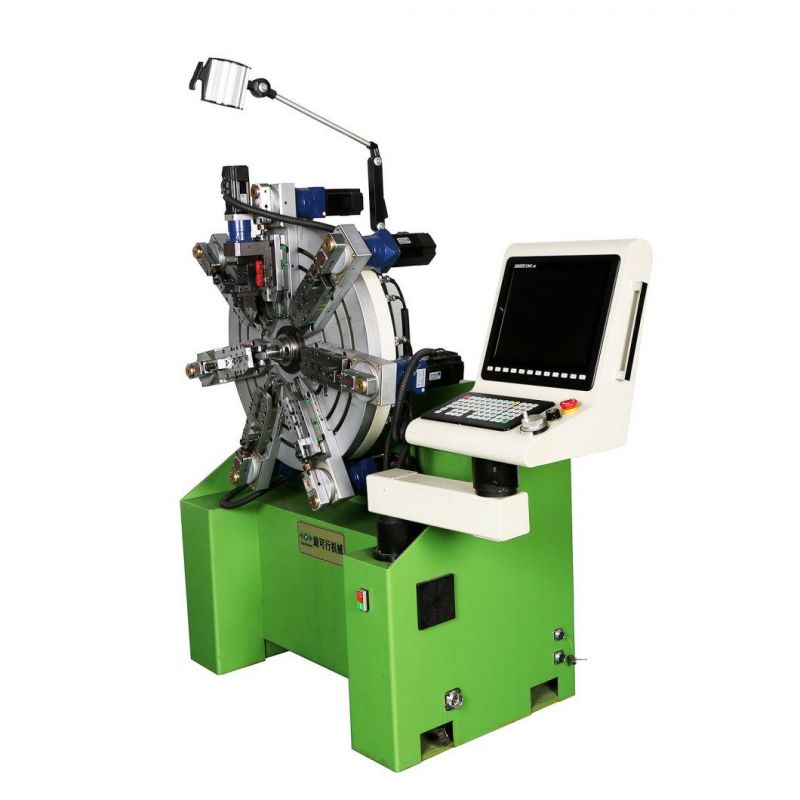

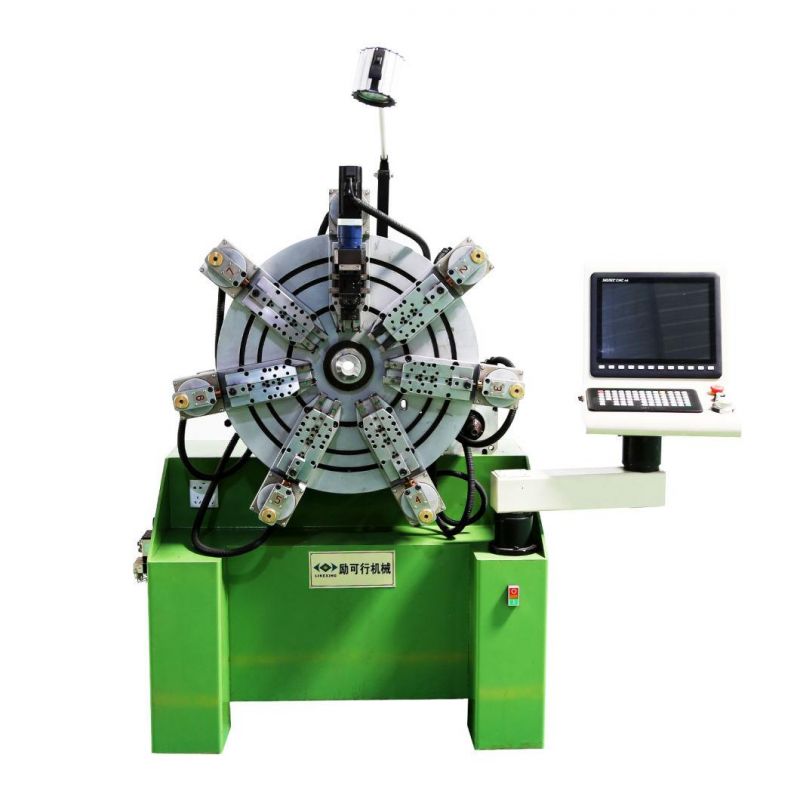

LKX1026

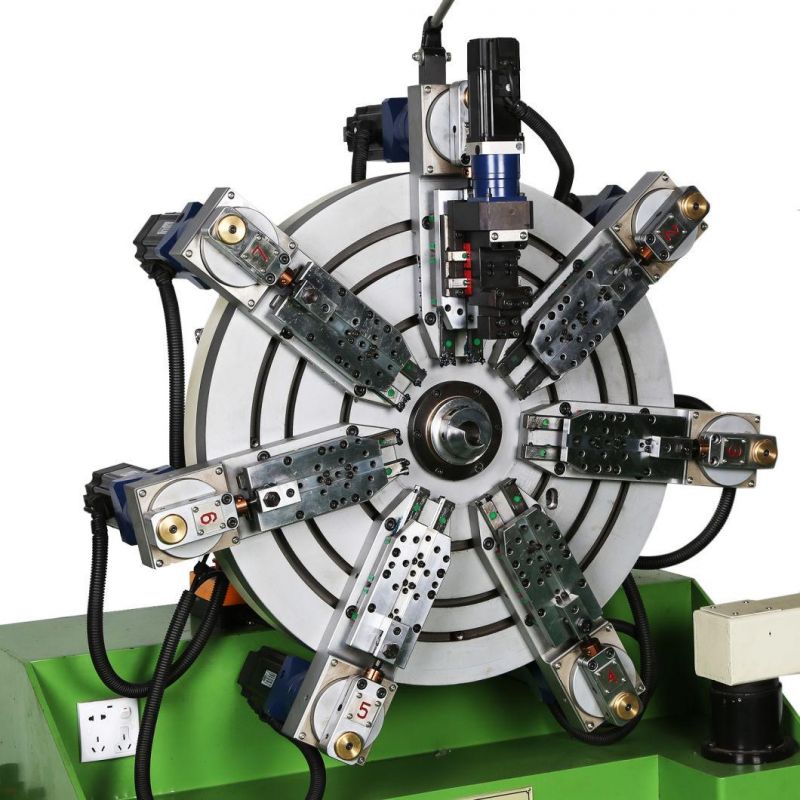

This machine is for camless design, no pendulum independent servo motor drive and multi axis can be changed freely.
Computer interface displayed  in Chinese & English which makes the operation easy
It's suitable for producing double torsion spring, straight spring, pagoda-shaped compression spring, rectangle spring, swirl spring and different springs and other special shaped spring.


TECHNICAL PARAMETER

Model	LKX1026
Wire diameter (mm)	Ø0.3~Ø2.6
Max feeding Length	999999
Instruction value of wire feed	±0.01~±9999.99mm
Instruction value of cam	±0.10~±359.90
Servo motor of wire feed (kw)	2.7
Machine size(mm)	1200×800×1600
Weight (Kg)	1000
Power	380V 3-Phase

FAQ:
Q: What's the Min. order?
A: One set.

Q: What is the payment term?
A: The payment term is 30% deposit as PO confirmed and the 70%  after the shipment. We also accept other payment term according to the agreement.

Q:What's the delivery time?
A:Normally the delivery time of the machine is 30days after receicing deposit.But it depends on the machine model. Some of them could be shipped within several days, because normal machine type is current stock.
