• Model NO.：CH12
• Specification：3600mm X 1600mm X2070mm
• Trademark：CHANCS
• Origin：China
• HS Code：8409991000
• Production Capacity：300 Sets Year

Basic Info.

Model NO. CH12 Specification 3600mm X 1600mm X2070mm Trademark CHANCS Origin China HS Code 8409991000 Production Capacity 300 SetsYear

Product Description

3D CNC Wire Bending Machine:
3D CNC wire bending machine is fully automatic and Servo driven, which is high efficiency and could save cost for customers from developed countries and high labor cost district.

Application:

 1. Auto Industry area

 2. Metal wire industry

 3. Furniture and Kitchen

 4. Display table and cargo shelf

 5. Hardware industry

 6. Architecture area

 7. Mattress,Sofa spring area

 8.All kinds of high precision metal wire forming accessories industry

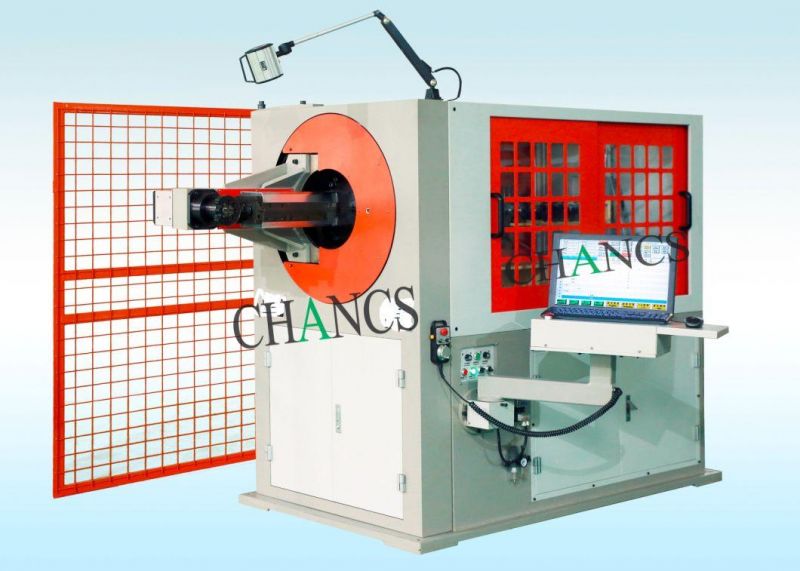

Machine Show:

Mechanical properties:
1. The principle of swivel head wire bending machine is that the swivel head does not turn the line, the head structure is light, the head turns the line does not turn, to ensure the rapid and stable production operation.
2.The computer boot, shutdown speed is fast, easy to operate.Computer interface can be produced while speed control while changing the program.
3. High speed motor imported from Japan and speed reducer imported from Germany are adopted in the configuration, and the production speed is more than 25% higher than similar products of domestic counterparts.
4.Bearing, gear and other important parts imported from Taiwan parts, quality assurance 8760 hours, durable and reliable equipment.
5.High precision, can do 3.0mm-12.0mm line diameter range of wire forming products, error down to 0.1mm.
6. The computer operating system can be connected to the Internet to achieve remote control and operation.The production efficiency and output are displayed on the man-machine interface, and the equipment can stop automatically after reaching the specified output.

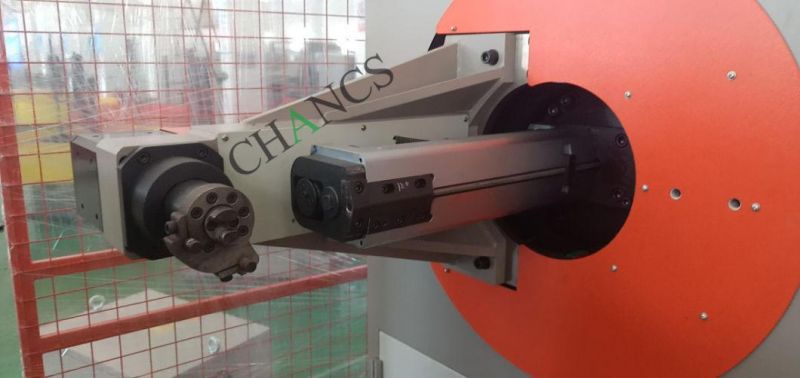

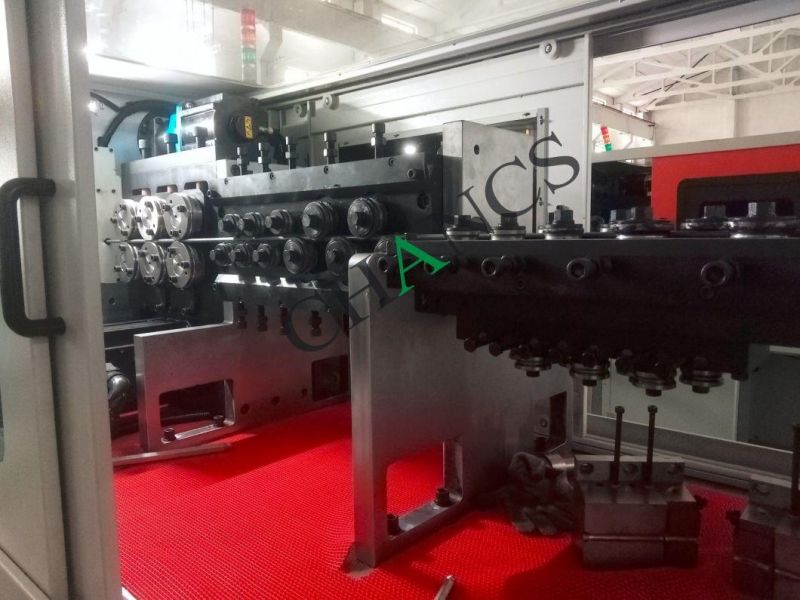

 Details:





parameters:

Name	Steel wire bending machine	Power of Wire Feeding Motor	5.5KW
Condition	New	Power of Turning Motor	5.5KW
Power	Servo	Power of Wire Cuter Motor	1.0KW
Maintanence	Remote computer	Power of Moving Motor	1.0KW
Number of Axis	5Axis	Power of Angle Control Motor	2.0KW
Group number of Wire feeding	4 Group	Input Power	380V/50HZ/3PH

Advantages:
We produce and export all kinds of automatic wire bending machine. We also can design and
develop the wire bending machines according to your requirements.

High precison and excellent performance for producing all kinds of springs and wire forms, Japanese Panasonic servo motor for each machine.

 After order placed, we accept to adjust the products according to customer's demand, and remain
the program and tool settings on machine. in order to insure a quick start of machine once customer
receive it.

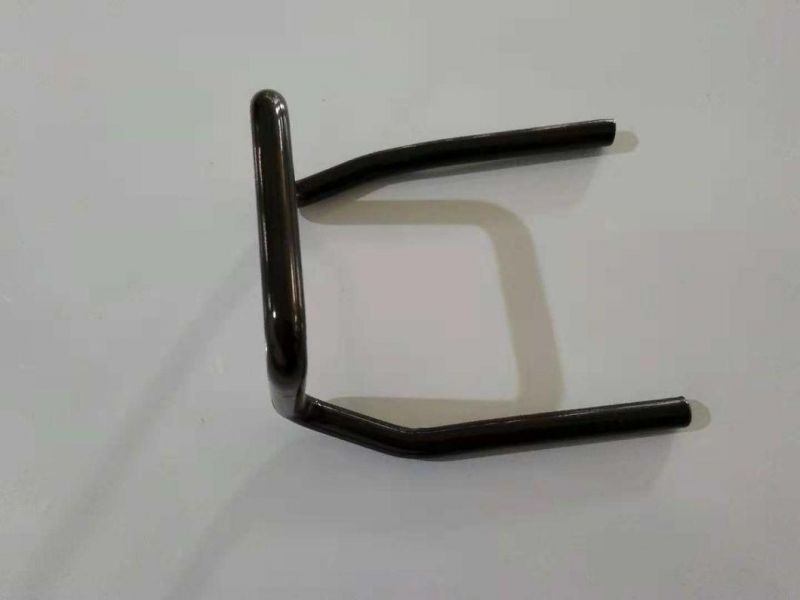

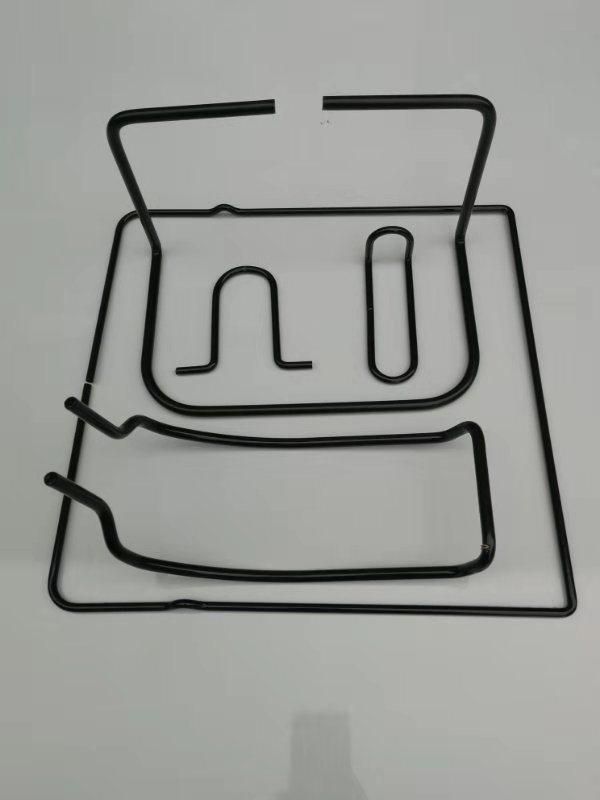

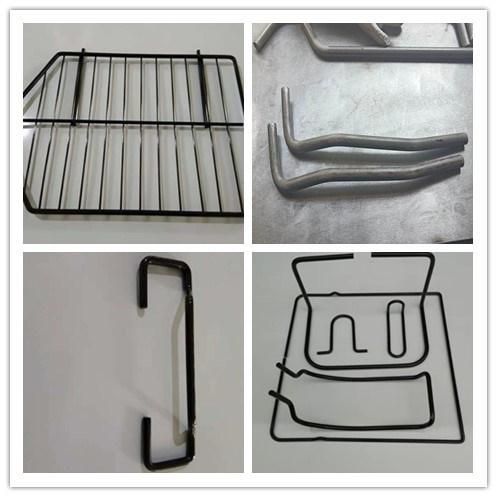

  Samples:

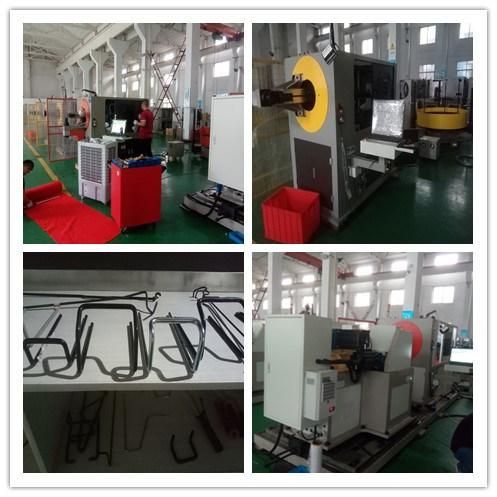

 The corner of the factory:
