Electric Swagging Machine (ETB-25) Metal Beading Bender Machine
Tengzhou Wellon Machinery Co., Ltd.- Type：Bead Bender
- Forging Forming Method：Mold Forging
- Power Source：Electric
- Feature：Automation
- Certification：ISO9001, CE
- Warranty：12 Months
Base Info
- Model NO.：ETB-25
- Customized：Customized
- Advantage：Easy to Maintenance
- Condition：New
- Thickness(mm)：2.5
- Cylinder Length：120
- Transport Package：Wood Case
- Specification：CE ISO9001 Rohs
- Trademark：WELLON
- Origin：Tengzhou, China
- HS Code：84623990
- Production Capacity：50 PCS,Month
Description
Basic Info.
Model NO. ETB-25 Customized Customized Advantage Easy to Maintenance Condition New Thickness(mm) 2.5 Cylinder Length 120 Transport Package Wood Case Specification CE ISO9001 Rohs Trademark WELLON Origin Tengzhou, China HS Code 84623990 Production Capacity 50 PCS/MonthProduct Description
Performence Features:Features of ETB-25 Electric metal Bead Bending Machine:
1. The Bead bending machine makes swagged plate, connection and so on of circular pipes,
which refer to crushing the thin plates into the ribs in certain shapes.
2. The rigidity of the plates, pipes or metal components is strengthened.
3. Steel welded construction frame
4. Adjustable idle roller
5. Steel shaft with bronze bushings
6. Reduction motor with brake system
7. Movement of rollers with foot pedal
8. Complete with stand

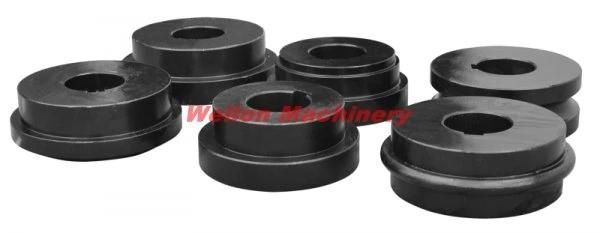

9. 4 sets standard rollerTechnical Parameter:
| Model | ETB-25 |
| Thickness max | 2.5mm/12Ga |
| Cylinder length | 120mm/ 4-3/4" |
| Throat depth | 280mm / 11" |
| Cylinder speed | 20rpm |
| Motor power | 1.5kW / 2HP |
| Net weight | 235kg/518lb |
| Packing size (cm) | 147x58x135 |
