• Model NO.：10t,h
• Certification：CE, RoHS, GS, ISO9001
• Type：Sand Casting
• Transport Package：Custom
• Trademark：DL
• Origin：Qingdao, China
• HS Code：8474802000
• Production Capacity：600

Basic Info.

Model NO. 10t/h Certification CE, RoHS, GS, ISO9001 Type Sand Casting Transport Package Custom Trademark DL Origin Qingdao, China HS Code 8474802000 Production Capacity 600

Product Description

Qingdao Dingli machinery Co., Ltd. is located in the beautiful seaside - Qingdao Pingdu, the company set scientific research, manufacturing, installation and commissioning, after-sales service in one. Mainly produces resin sand production line, clay sand production line, coated sand production line equipment, all kinds of sand processing single equipment. The company has advanced casting machinery manufacturing and development technology, the production of products can fully meet the international and domestic market demand. The company has excellent design and development team, skilled construction team, domestic leading casting equipment design concept, perfect after-sales service system, willing to cooperate with the majority of casting enterprises, create a better tomorrow.

In line with the "down-to-earth, integrity-based, pay attention to service, continuous innovation" business philosophy, through continuous efforts. With our own efforts and focus on the development of a series of perfect processing equipment, to meet the different needs of the majority of users.

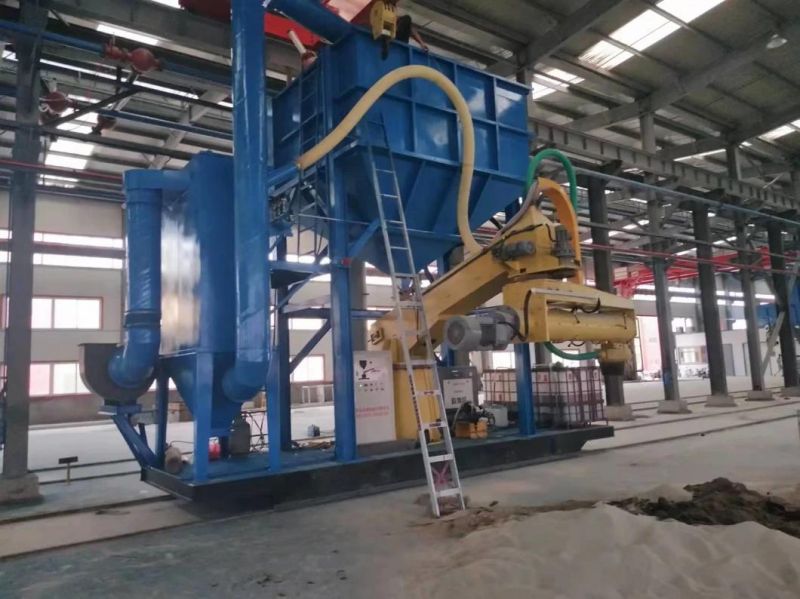

The process flow of resin sand regeneration line is as follows: after casting, the sand box and the casting are hoisted by the crane to the inertial vibration sand falling machine. After sand falling, the casting is transported to the cleaning and shoveling workshop, and the sand box is transported to the sand box warehouse for reserve. Large pieces of cleat, riser by manual sorting, through the shakeout grid sand, sand and small cold iron to magnetic separation belt machine, after magnetic separation to the multifunctional vibration crushing reclaimer for crushing, membrane, screening, after screening sand into 1 # bucket elevator, the elevator up to the rotor of the centrifugal secondary reclaimer for strong regeneration, fully to take off the membrane.

The recycled sand mixed with fine powder, dust and resin film flows into a flow screen air separator through a flow sand tank. The air separator is connected with a cyclone dust collector and a pulse type reverse blowing dust collector to remove the fine powder and dust. The reclaimed sand is then lifted by 24 bucket elevator to sand storage for reserve. The side feed port of the mobile double-arm continuous resin sand mixing machine is connected with the sand outlet under the sand library by pneumatic gate. After pressing the sand mixing button of the electric control box of the sand mixing machine, the pneumatic gate opens automatically, and the determined amount of sand flows into the sand mixing machine from the sand library.

Sand in the sand mixer by the spiral piece forward to sand began to end, from the proximal control valve to join the curing agent, the small leaf gathering blends to the back of the proximal valve add resin, into the sand, curing agent, resin, reclaimed sand sent to the front end of discharging mouth automatically after thoroughly incorporated into the prepared sand used in modelling, the core in the box. This equipment is controlled by imported PLC(programmable control) automation performance.

The name of the	Resin sand processing equipment
(t/h)Production capacity (t/h)	10
