• Model NO.：S62 series
• Certification：CE, RoHS, GS, ISO9001
• Type：Special Casting
• Transport Package：Custom
• Trademark：DL
• Origin：Qingdao, China
• HS Code：8474802000

Basic Info.

Model NO. S62 series Certification CE, RoHS, GS, ISO9001 Type Special Casting Transport Package Custom Trademark DL Origin Qingdao, China HS Code 8474802000

Product Description

Qingdao Dingli machinery Co., Ltd. is located in the beautiful seaside - Qingdao Pingdu, the company set scientific research, manufacturing, installation and commissioning, after-sales service in one. Mainly produces resin sand production line, clay sand production line, coated sand production line equipment, all kinds of sand processing single equipment. The company has advanced casting machinery manufacturing and development technology, the production of products can fully meet the international and domestic market demand. The company has excellent design and development team, skilled construction team, domestic leading casting equipment design concept, perfect after-sales service system, willing to cooperate with the majority of casting enterprises, create a better tomorrow.

In line with the "down-to-earth, integrity-based, pay attention to service, continuous innovation" business philosophy, through continuous efforts. With our own efforts and focus on the development of a series of perfect processing equipment, to meet the different needs of the majority of users.

This series of products are characterized by compact structure, reliable operation, high efficiency, low energy consumption, good drying effect and convenient fuel collection.Equipped with hopper, disk feeder, dust collector, suction fan, vibrating screen, etc., it can form a complete new sand drying system.

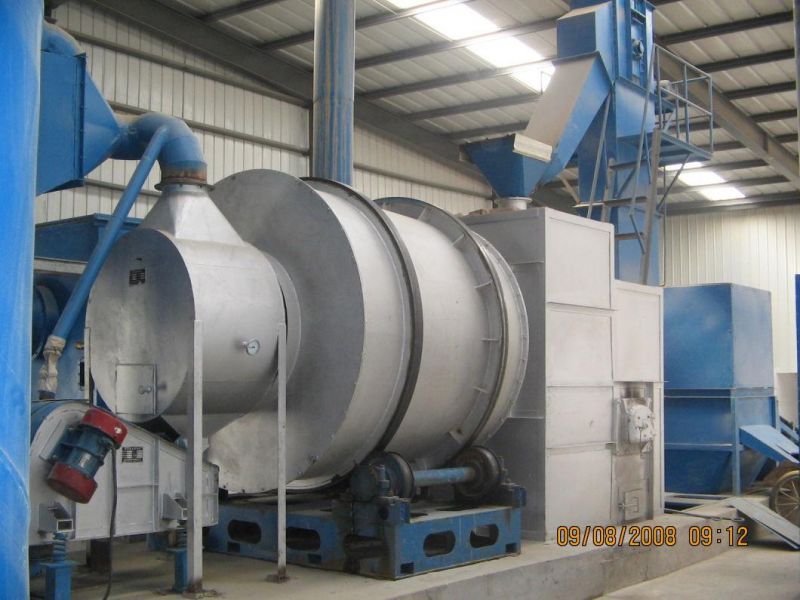

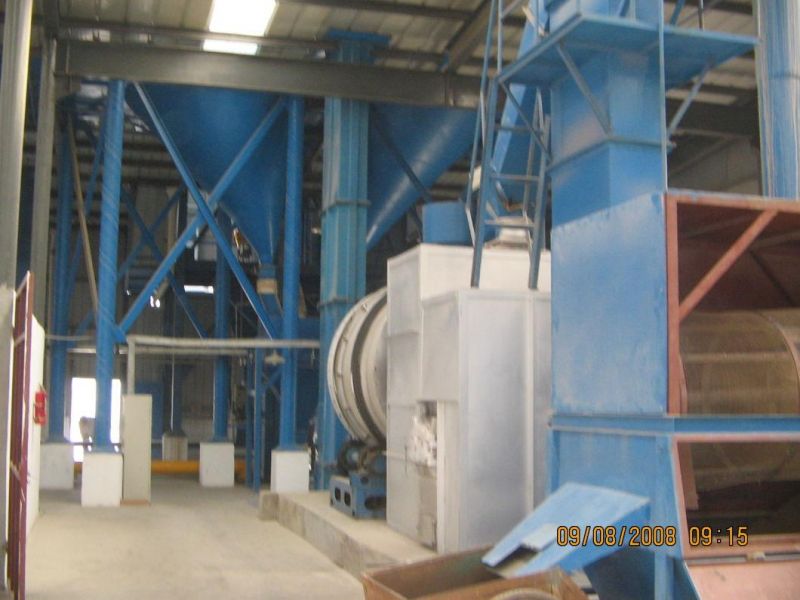

The device is mainly used for drying new sand.The main fuel is crushed coke or cold gas.Compact structure, reliable operation, high efficiency, low energy consumption, good drying effect.Fuel to join method is divided into positive, left, right, but drum wind direction is always show 90 ° Angle and the direction of fuel, greatly convenient for the user's choice.The device consists of a simple sand drying unit composed of a dump feeder (or vibrating feeder, bucket elevator), a main driving cylinder, a fuel furnace, a vibrating screen, and a dust-removing air pumping system.Mount a horse quickly, economic efficiency is very apparent.



/Parameter/Model	S625	S628	S6215
(m3/h)Productivity (m3 / h)	5	8-10	8-12
(kg/h)Combustion of coke (kg/h)	60	75-80	85-180
(%)Sand moisture for export (%)	<0.5	<0.5	<0.5
(ºC)Outlet sand temperature (ºC)	60	60	60
Main motor model	Y132S-4	Y132S-4	Y132S-4
(kw)Main motor Power (KW)	5.5	5.5	5.5*2=11
(r/min)Rotation of drum (r/min)	6.5	9	9
Wet dust collector	F3719	F3719	F3725
Suction fan	4-72-11No4.5A7.5kw	4-72-11No4.5A7.5kw	4-72-11No4.5A7.5kw
Disc feeder	Y4415	Y4415	Y4415
Sand screen	S456	S456B	S456B
(kg) Machine weight (kg)	16000	18000	26000
