• Model NO.：XHS-CR24-I
• Certification：ISO
• Condition：New
• Transport Package：Wooden Pallet with Film
• Origin：China
• HS Code：846330000
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. XHS-CR24-I Certification ISO Condition New Transport Package Wooden Pallet with Film Origin China HS Code 846330000 Production Capacity 500 Sets/Year

Product Description

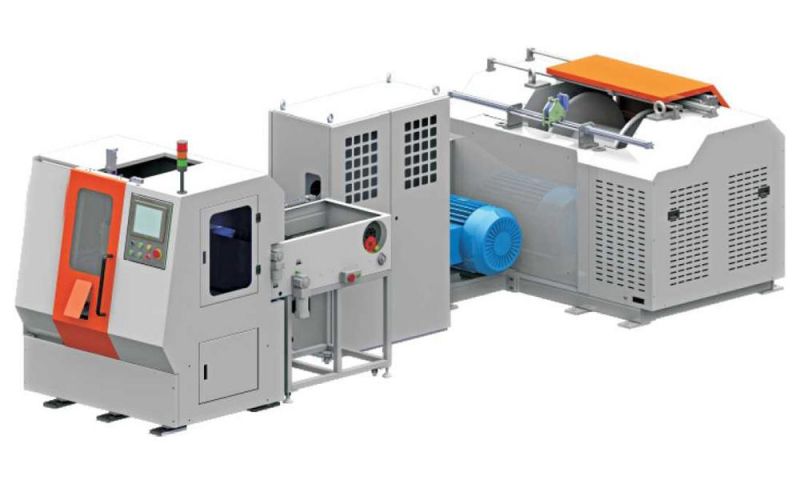

Equipment introduction:

> Equipment use: this machine is specially adapted for 100mm, 200mm welding wire plate, suitable for gas shielded welding wire, stainless steel welding wire and other wire products layer wrapping.

> System composition: host machine, wire storage tension cabinet, wire discharging machine, electric control system.

> Main function design: the use of full digital control, human-machine interface interaction, with disorderly wire, wire break, wiring alarm and fault online detection and other functions, can expand the I wheel automatic loading and unloading, visual monitoring, remote networking monitoring and other functions.

Functional characteristics:


1. The unique pulley block design of the wire storage tension cabinet realizes the super long wire cache, which makes the main machine and the discharging machine run more smoothly and save energy.

2. Equipped with high-speed spindle, three-station turntable, fast acceleration and deceleration, winding, loading and unloading at the same time, significantly improve the winding efficiency.

3. Modular design of welding wire mandrel, as far as possible to expand the adaptability of more specifications of welding wire.

4. Compared with the standard wire winding machine, the volume of the machine is reduced by 450%, and the site efficiency is higher

Model specifications and main parameters:


Model:	XHS-CR24-I	Principal axis::	0-3000rpm
Wire plate specification	100mm/1kg, 200mm/5kg	Air supply:	0.5MPa,5L/min
Wire specifications:	0.8-1,2mm	Power:	50 kw
Linear speed:	25m/s	Electric tension:	3R 380V 50Hz
Dimension:	1450mm x1250mmx2200mm	Weight:	400kg

Application scenarios:

      The unit is mainly for 1kg, 5kg, small size plate mounted wire high-speed automatic layer winding.  Set automatic loading and unloading, first and tail wire threading and other key processes, and realize the continuous work of the winding machine.
