• Model NO.：THS-CR30-I
• Certification：ISO
• Condition：New
• Transport Package：Wooden Pallet with Film
• Origin：China
• HS Code：846330000
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. THS-CR30-I Certification ISO Condition New Transport Package Wooden Pallet with Film Origin China HS Code 846330000 Production Capacity 500 Sets/Year

Product Description

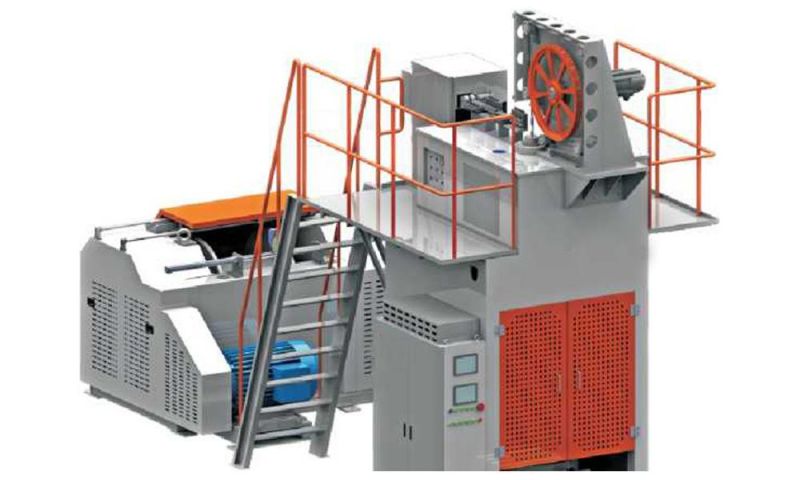

Equipment introduction:

> Equipment use: this machine is suitable for CO2 gas shielded welding wire, stainless steel welding wire, aluminum alloy welding wire, copper welding wire and other metal wire products barreled layer wrapping.

> System composition: main engine, aligning mechanism, tension frame, wiring machine, electric control system.

> Function expansion: I wheel automatic loading and unloading, visual monitoring,

Remote network monitoring.
> Main function design: the unit adopts full digital control, man-machine interface interaction information, with operation and              maintenance help, to weight, disorderly wire, broken wire, wire alarm and automatic stop, fault in line detection and other functions, in addition to wire threading, straightening, take and put the barrel can realize automatic operation.  Precise petal control and pre-twist ensure smooth wire feeding during welding.  Can be customized to adapt to various specifications of the wire barrel, the machine performance to the international advanced level.

Functional characteristics:


1. The set - out machine is set out actively with variations in frequency, which effectively ensures constant tension and stable operation during wire receiving.

2. Use large diameter traction wheel (diameter < P700mm) for wire traction, to minimize the later additional bending caused by packaging, so that the wire in the process of use can achieve smooth and stable wire out effect.

3. Accurate CNC pre-torsion mechanism, so that the wire bucket in the static state of wire feeding, wire does not distort, can adapt to automatic control welding and long time without interruption welding needs.  The machine expert system can efficiently adapt the parameters of silk products with different diameters, such as circle diameter, petal spacing, single layer winding number, etc.

4. Multi-wheel system and four-direction standard straightener group can effectively correct the bad performance of bending, twisting and warping in the process of wire drawing, and effectively expand the scope of application of the equipment.

5. Touch screen display operation speed and received weight, uncollected weight and other information, to the weight automatic stop function, one button operation: from the start of automatic acceleration, to the weight of automatic deceleration stop, reduce the labor intensity of operators, to achieve unattended operation.

6. Intelligent interface on the touch screen, such as help, fault display and elimination function, makes the operation and maintenance of the equipment easier.

Model specifications and main parameters:

Solid core	THS-CR30-I	Control:	PLC	Power:	45 Kw
		Air supply:	aO.5Mpa, 5L/min	Dia:	400mm,450mm
		Electric tension:	380V 50Hz	Wire specifications:	1.0mm~1.6mm
		Spool size:	DIN630,DIN800,DIN900,DIN1000	Linear speed:	15m/s~30m/s
		Weight:	5000kg	Principal axis:	0r/min~1500r/min
		Dimension:	2000mmx4100mmx5050mm	Drive:	Servo drive, frequency conversion drive
