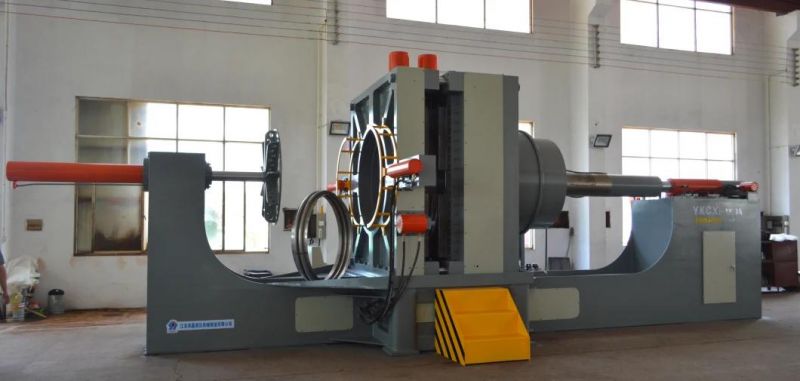

Horizontal Rectangular Metal Bellow Machine

Comflex Industrial Co., Ltd.
  • Product Name：Rectangular Bellow Forming Machine
  • Working Process：Bending & Drawing
  • No of Convolutions：1-4
  • Height of Convolution：105mm,108mm,198mm,216mm
  • Pitch Distance：59mm,80mm,86mm,110mm
  • Thickness：1.5-2.5mm

Base Info

  • Model NO.：HLT
  • Type of The Hose：U or V Type
  • No. of Layers：Single or Double Layers
  • Inner Radius：300 - 600mm
  • Outer Radius：405-816mm
  • Transport Package：Standard Sea Package for Flexible Metallic Hose Ma
  • Specification：SGS
  • Trademark：HLT
  • Origin：Jiangsu, Wuxi
  • HS Code：844790900
  • Production Capacity：15 Sets Per Year

Description

 Japan
AT80 standardBendingU4105801.5300405BendingU3105801.5300405BendingU2105801.5300405BendingU1105801.5300405

2. Other related bellow machines

A. YKCX―1200A Automatic Bellow Hydroforming Machine

* Size range: Φ700―Φ1220mm(small machine covering sizes Φ200―Φ630mm)
* Thickness: single layer1.0―3.0mm
* Double layer 0.8×2―1.6×2mm
* Length: L≤2000mm

Horizontal Rectangular Metal Bellow Machine

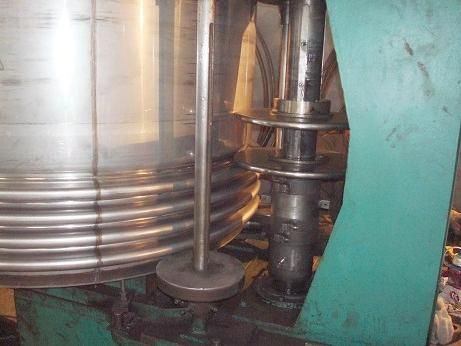

B. Bellow mechanical expanding machine

Size: DN400-DN700 and DN800-5000mm
Wall thickness: single layer≤3.0mm; total thickness of multilayer≤6.0mm.
Each set of dies will be comprised of 12 pieces,
max. height of convolution≤90mm

Horizontal Rectangular Metal Bellow Machine

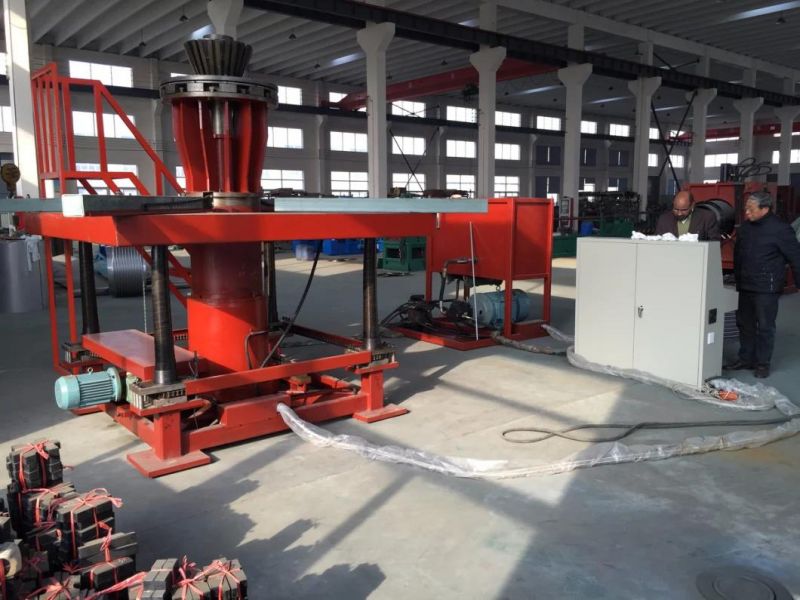

C. Mechanical bellow rolling forming machine
 Mechanical Bellow Rolling & Forming MachineSize IMini.diameter:DN800 Max. diameter:DN5000 Height of convolution:Max.240mm Pitch distance:Max.60mm Wall thickness:  Single layerMax.4mm MultilayerMax.6mm
Size IIMini.diameter:DN1100
 Max. diameter:DN10000
 Height of convolution:Max.240mm
 Pitch distance:Max.60mm
 Wall thickness:
 Single layerMax.4mm
 MultilayerMax.6mm

Horizontal Rectangular Metal Bellow Machine

3. FAQ
Q: Why choose us for horizontal bellow presser?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN8 up to DN600 can be made on different machines
Q: How many different types of machine can you make?
A: Hydraulic metal bellow forming machine
B: Vertical hydraulic forming machine
C: Horizontal hydraulic forming machine
D. Mechanical bellow rolling & forming machine
E. Mechanical bellow expanding machine
F. Rectangular bellow forming machine etc...

We need to know following information to quote you correct machineries:
1. Size range you want to make
2. The application of the bellow you need
3. Wall thickness
4. Technical drawing of the bellow, so that we can check the convolution details.
