• Model NO.：YX65-300-400
• Customized：Customized
• Advantage：Easy to Maintenance
• Condition：New
• Size：5800*1800*1700mm
• Weight：7000kgs
• Motor Power：5.5kw*2 Sets
• Delivery Time：Delivery Immediately After Machine Is Assembled
• After-Sales Service：Engineers Available to Service Machinery Overseas
• Roller Material：45#Steel
• Shaft Material：40cr
• Clipper Material：12crmov
• Thickness for Steel：0.5-0.8mm
• Thickness for Aluminum：0.7-1.0mm or 0.9-1.2mm
• Transport Package：Standard Package for Export
• Specification：YX65-300-400
• Trademark：XHH
• Origin：Xiamen of China
• HS Code：84552290
• Production Capacity：10-15 Sets,Month

Basic Info.

Model NO. YX65-300-400 Customized Customized Advantage Easy to Maintenance Condition New Size 5800*1800*1700mm Weight 7000kgs Motor Power 5.5kw*2 Sets Delivery Time Delivery Immediately After Machine Is Assembled After-Sales Service Engineers Available to Service Machinery Overseas Roller Material 45#Steel Shaft Material 40cr Clipper Material 12crmov Thickness for Steel 0.5-0.8mm Thickness for Aluminum 0.7-1.0mm or 0.9-1.2mm Transport Package Standard Package for Export Specification YX65-300-400 Trademark XHH Origin Xiamen of China HS Code 84552290 Production Capacity 10-15 Sets/Month

Product Description

YX65-300-400 Standing Seam Roofing Machine, Rolling Forming Machine, Metal Roofing Machine:

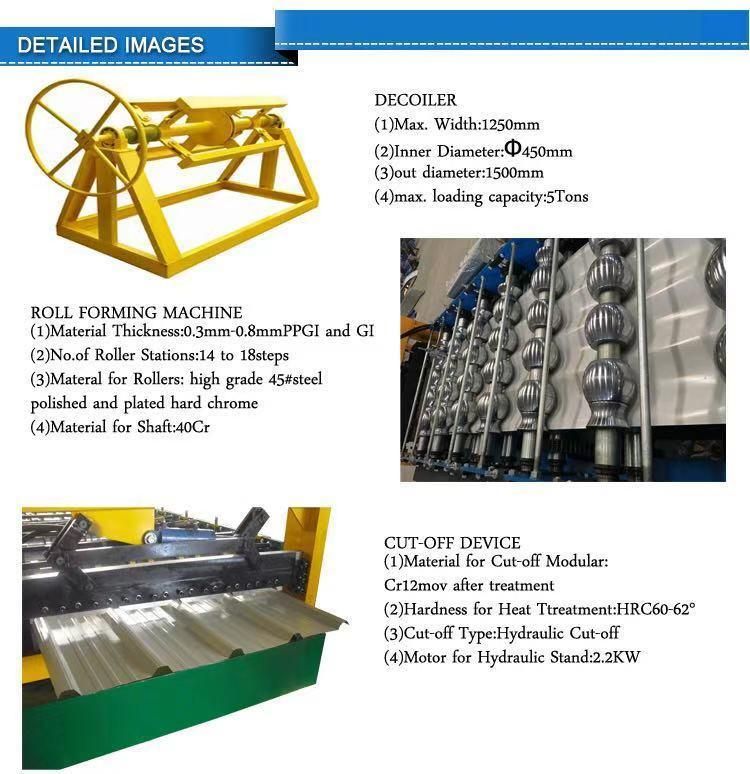

Main Accessories:
A. Main roof forming machine;
B. 5 tons manual decoiler;
C. Hydraulic system;

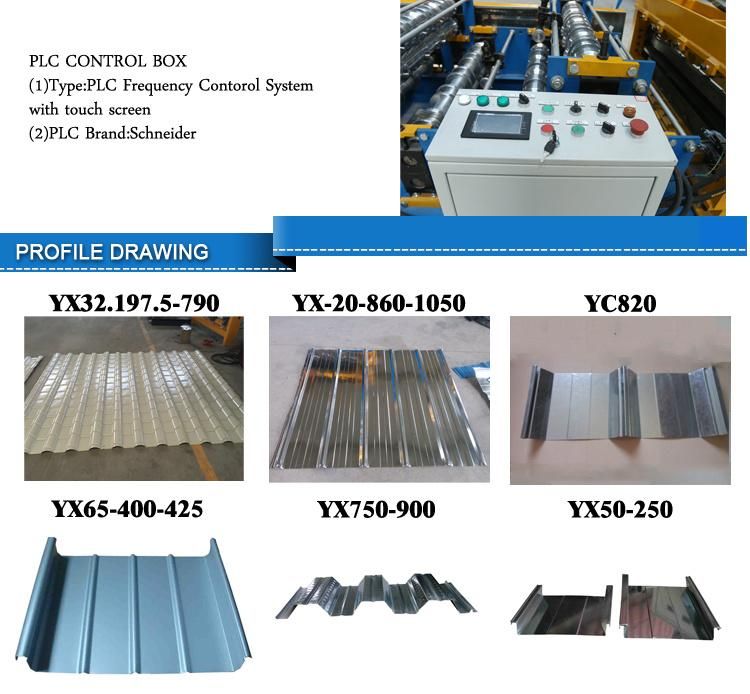

D. PLC computer controlling system with touch screen;
E. Hydraulic forming cutter;
F. Protetive Cover;
G. Operational manual.

1.	Size	6500*1600*1400mm
2.	Weight	6500KGS
3.	Motor Power	5.5KW*2 sets
4.	Hydraulic Power	2.2KW
5.	Voltage	220V/60HZ
6.	Forming Steps	13
7.	Forming Speed	8-14m/min
8.	Effective Width	300mm, 400mm
9.	Material of Width	470mm, 575mm
10.	Thickness  for Aluminum sheets:	0.6-1.0mm
11.	Thickness for Colored Prepainted and Galvanized  Sheet	0.6-0.8mm
12.	Material for All Rollers	high grade no. 45 forged steel, plated hard chrome on the surface of rollers
