Polyester Powder Coating Gun
Hangzhou Feifu Import and Export Co., Ltd.- After-sales Service:12 Moths
- Warranty:12 Moths
- Type:Coating Spray Gun
- Coating:Powder Coating
- Substrate:Steel
- Certification:CE
Base Info
- Model NO.:FF-191S
- Condition:New
- Code:Colo-191s-L2
- Name:Electrostatic Powder Coating Paint Spray Applicati
- Application:Powder Coating
- Voltage:110V,220V
- Spray Gun Type:Corona
- Product:Electrostatic Powder Coating Paint Spray Applicati
- Display:Digital
- Delivery:1-3 Working Days
- Item:Electrostatic Powder Coating Paint Spray Applicati
- Transport Package:Wooden,Paper Carton
- Specification:69x56x52cm
- Trademark:COLO
- Origin:China
- HS Code:8424899990
- Production Capacity:300PCS,Month
Description
Basic Info.
Model NO. FF-191S Condition New Code Colo-191s-L2 Name Electrostatic Powder Coating Paint Spray Applicati Application Powder Coating Voltage 110V/220V Spray Gun Type Corona Product Electrostatic Powder Coating Paint Spray Applicati Display Digital Delivery 1-3 Working Days Item Electrostatic Powder Coating Paint Spray Applicati Transport Package Wooden/Paper Carton Specification 69x56x52cm Trademark COLO Origin China HS Code 8424899990 Production Capacity 300PCS/MonthProduct Description
Polyester Powder Coating Gun/ Electrostatic Powder Spraying Equipmen/ Electrostatic Powder Coating GunModel: COLO-191S-B Quick color change!
Application: coating car wheels, radiator, aluminum and other metal work-pieces
Delivery: 1-3 working days
Warranty: 1 year
Excellent features of COLO-191S-B
1) Advanced technology, All digital display and data adjusting, precise coating.
2) Especially suitable for coating complicated work-pieces, result perfect effect.
3) Could store 20 kinds of powder coating programs.
4) Easy operation and intelligent functions.
5) long lifespan and portable gun.
6) LCD screen( liquid crystal display.)

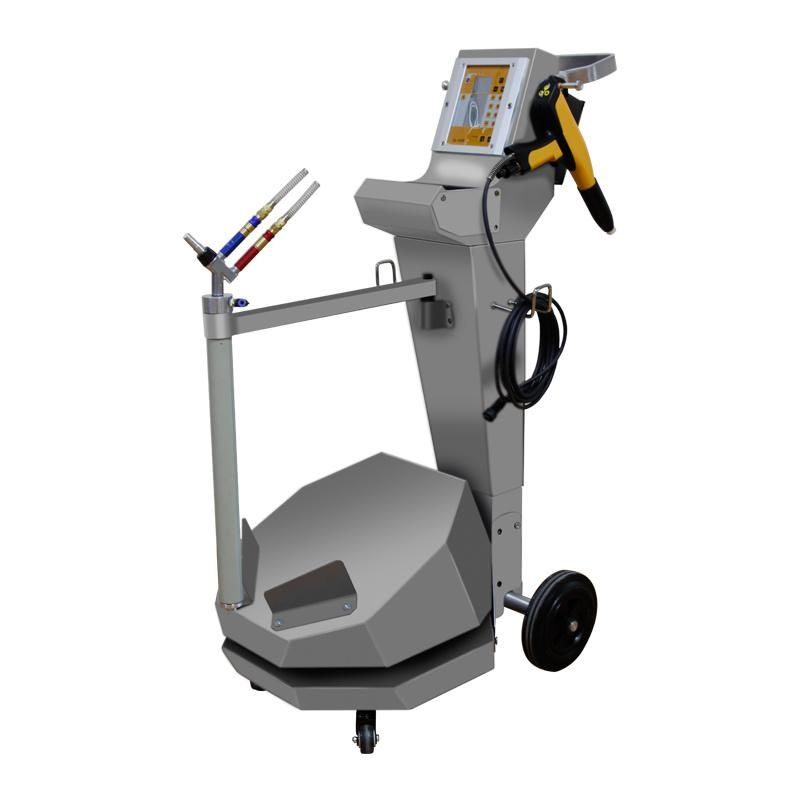

Box Feed Type, fast and easy for powder color change!
Directly convey the powders from the original powder box, no need to clean the hopper.

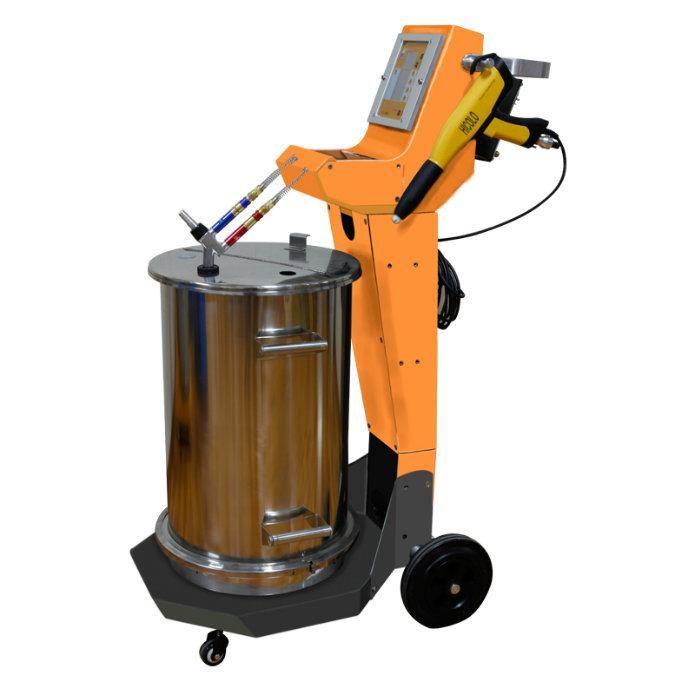

Hopper Type of COLO-191S powder coating spray equipment,
with D36xH62cm hoppers, can hold 70pounds powders.
Main Structure of COLO-191S powder paint equipment
1 control unit 2 Manual powder gun
3 injector 4 Mobile frame with hand rail
5 Powder Hopper 6 Powder filler flap
7 Swivel wheel 8 Filter unit
9 Gun holder 10 Shelf
11 Hose holder 12 Hose holder
13 Rubber wheel

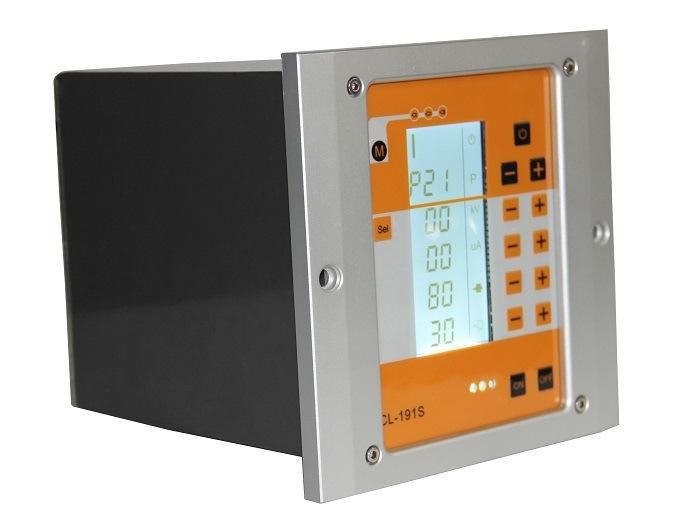

LCD Digital Display of COLO-191S, powder coating gun controller.
Technical Specifications of COLO-191S powder coating paint equipment
Electrical Data
MODEL | COLO-191S-B |
Gun Weight | 500G |
Rated output voltage | 24VDC |
Input voltage | -200KV |
Maximum output current | 180Ua(max) |
Maximum output voltage | 0-100K(adjustable) |
Maximum powder injection | 600g/min |
Polarity | negative |
Maximum input-air pressure | 10kg/cm |
Optimum input-air pressure | 6kg/cm |
Optimum input-air pressure | 4kg/cm |
Maximum water vapor content or compressed air | 1.4G/N m3 |
Maximum oil vapor content of compressed air | 0.1ppm |
Maximum compressed-air consumption | 13.2 m3/h |
Temperature range in use | -10 ºC+50 ºC |
Advantages of Powder Coating compared with traditional wet painting
1.Tough and durable finish2. Environmental protection, not cause pollution3. High usage of coating material4. Corrosion resistence, aging resistance.5.High efficiency and perfect coating effect.
