Automatic Cold Galvanized Aluminum Corrugated Steel Color Metal Sheet Roll Forming Machine with ISO9001/Ce/SGS/Soncap
Hangzhou Zhongyuan Machinery Factory- Type:Hydraulic Machine
- Forging Forming Method:Cold Roll Forming
- Power Source:Electric
- Feature:Automation
- Certification:ISO9001, CE
- Warranty:12 Months
Base Info
- Model NO.:ZYYX
- Customized:Customized
- Advantage:Easy to Maintenance
- Condition:New
- Certificate:CE,ISO
- Operation Language:English or as Per Client`S Required
- Rollers Material:No.45 Forged Steel, Plated with Hard Chrom
- Shaft Diameter:72mm Solid Steel
- Cutter Material:Cr12 Mould Steel Being Quenched Treatment
- Cutting Type:Cut to Length
- Quality Warranty:First Year Free, Lifetime Services
- Quality System:ISO
- Controlling System:Mitsubishi PLC & Converter
- Main Motor:7.5kw
- Transport Package:40gp
- Specification:CE SGS BV ISO
- Trademark:Zhongyuan
- Origin:China
- HS Code:84552210
- Production Capacity:10sets,Month
Description
ItemSpecification

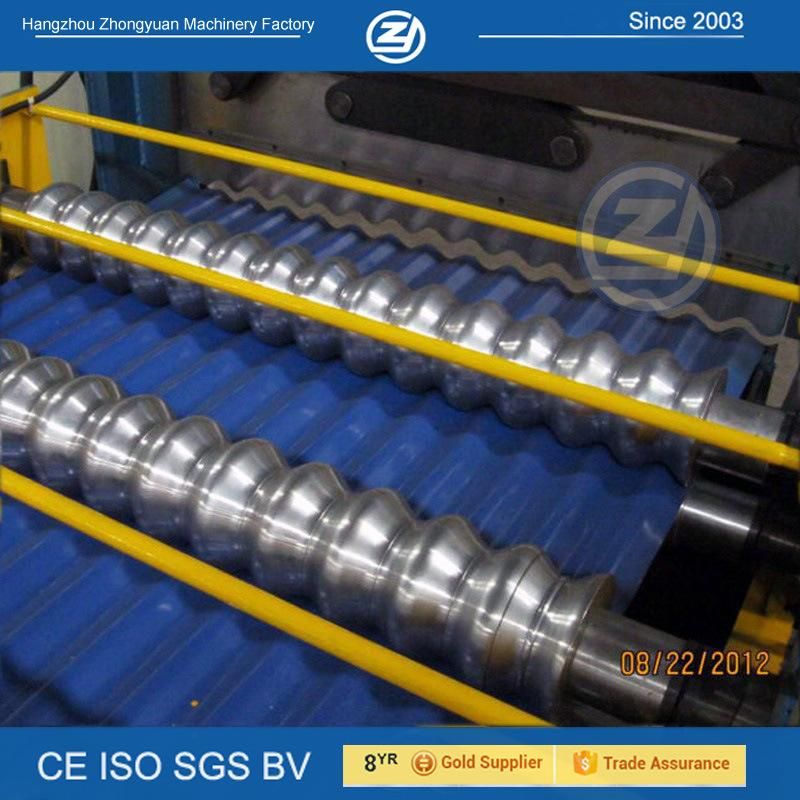

Raw Material Type Pre-painted steel coil & galvanized coils Thickness(mm) 0.3-0.7 Yield strength(mpa) 235-550 Roller material 45# steel , coated with Chrome Shaft for rollers Solid shaft with 72mm,processed with cylindrical grinder Forming speed(m/min) About 20-25 Output speed(m/min) About 12 for 6m length sheet Speed adjusting mode Mitsubishi frequency transformer Roller drive Decelerating motor + Chain drive Cutting mode Hydraulic cutting Cutter material Cr12 mould steel Length measurement Nemicon Encoder Control mode Mitsubishi PLC Operating mode Button + Mitsubishi Touch screen Main motor power(kw) 7.5KW Total power(kw) 9.9 KW Process flow Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - product to run out table
Feeding & guiding device1set Main roll forming machine 1set Hydraulic cutting system 1set Controlling system 1set Run out table (auto. Stacker for option) 1set
We customize your machines! To customize machine, we would love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend the lacol popular profile for you----Just let us know your country!
About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.
1. Capacity: 12-15 sets/month
2. Delivery: in only 5-8 weeks for urgent order
3. Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
5. You can rely on our team!
We have engineers with experience more than 15 years in metal forming industry.
Please contact us start to customize your machine now!
Raw Material
Feeding & guiding device
We customize your machines! To customize machine, we would love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend the lacol popular profile for you----Just let us know your country!
About us
We are professional in making roll forming machines since 2003. Company occupies 6650, in which 5650 for workshops.
1. Capacity: 12-15 sets/month
2. Delivery: in only 5-8 weeks for urgent order
3. Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
5. You can rely on our team!
We have engineers with experience more than 15 years in metal forming industry.
Please contact us start to customize your machine now!
