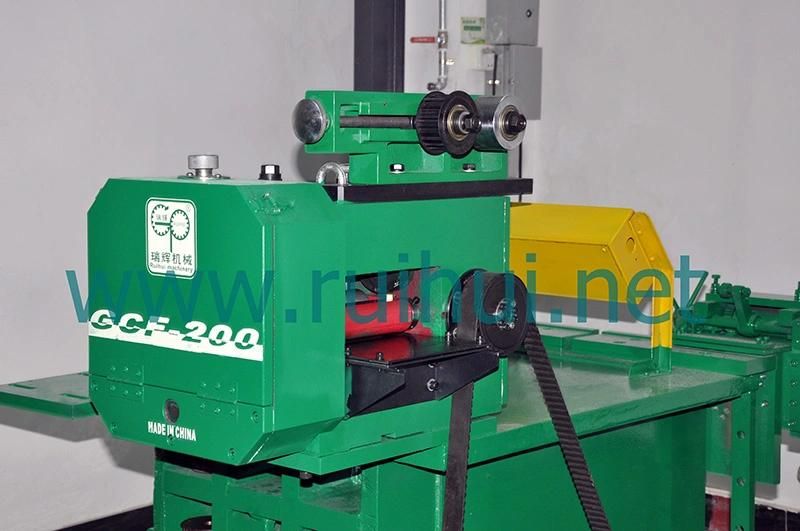

• Model NO.：GCF-200
• Warranty：12 Months
• Customized：Customized
• Condition：New
• Thickness of Material (mm)：0.35-1.6
• Width of Material (mm)：200-300
• Length of Angle (mm)：11.5-240(Other for Specific)
• Shape：S
• Transport Package：Wooden Box
• Specification：700*500*500mm
• Trademark：RUIHUI
• Origin：China, Dongguan
• HS Code：8462219000
• Production Capacity：100 Sets Per Month

ModelGCF-200GCF-300Material width (mm)200300Material thickness (mm)0.35-1.60.35-1.6Indexing - cam number43Length of angle (mm)11.5-240(Other for specific)Pilt release angle180°Feed angle135°-198°Feed directionL - R

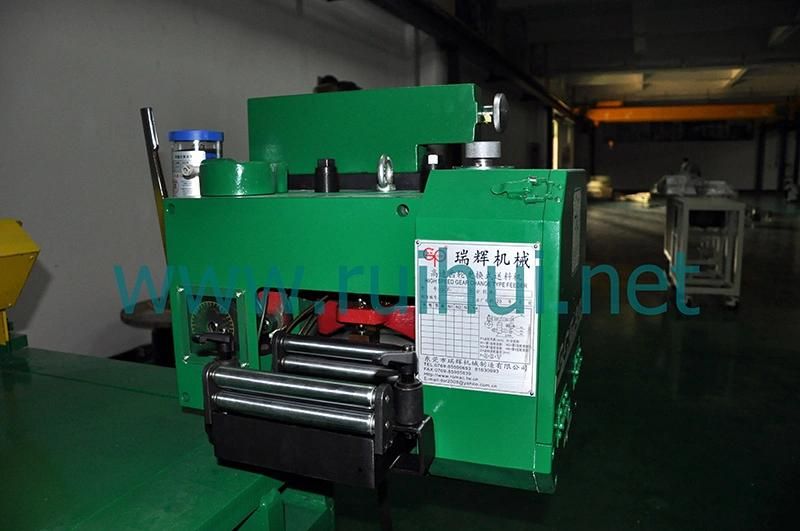

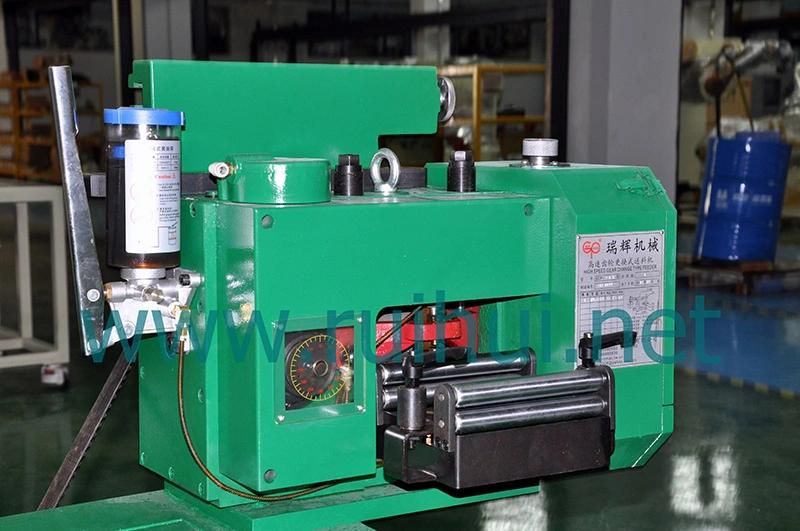

  Mainly used for motor rotor and stator stamping lamination.Intermittent feeding with rotary cam mechanism.Rely on the stability of the gear transmission mechanism to ensure the accuracy and stability of fed,the highest punching speed could reach 400 times/min.

Others can be customize
1. Gear feeding machine is Cam feeding machine, mainly use with double material rack and  S type leveling machine,applicable to the punching products which requests with high  speed processing and high precision.
2. No need to adjust the feeding step distance. The distance can be changed by 1-4 gears.
3. Intermittent feeding mode driven by precision cam
4. Bottom roller driven only and the top roller pressed by springs.
5. When material inserted ,top and bottom rollers will be released by  control the manual switch of the air valve.
6. All the rollers are coated with hard chrome plating,hardness over HRC60.
7. Releasing device is an eccentric cam,the releasing angle can be adjusted from 0°to 180°
8. Can be customize according to the different rotation direction of the shaft of the press.
9. Box type with compact structure ,not easy to cause deformation.

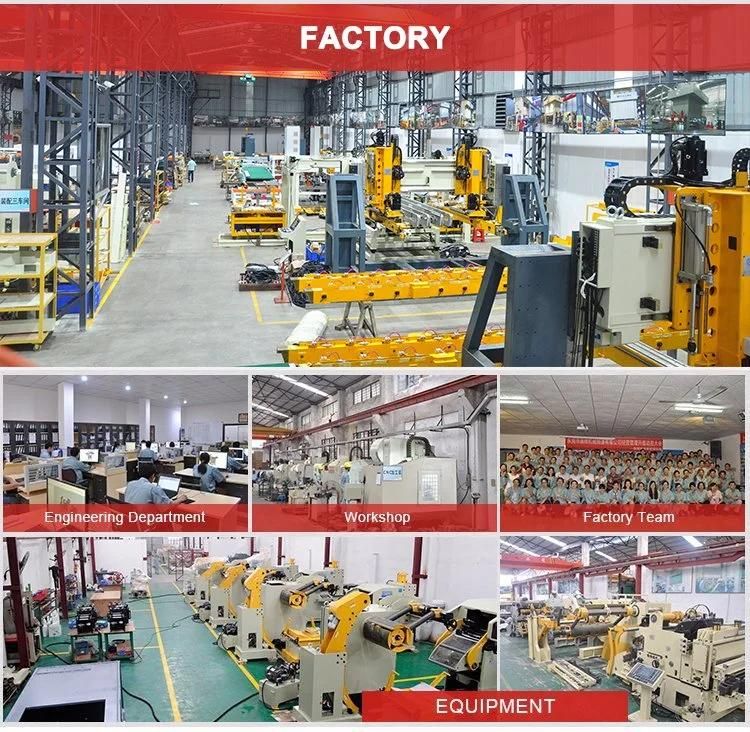

factory's photos






       RUIHUI founded in 2000, the technology of automation periphery is from Japan.Now RUIHUI is a Japanese brand and the same technique of sheet metal stamping surrounding automation equipment manufacturer. RUIHUI has been learning Japan and Germany technology, and useing high standards of principle in the parts selection, for assembly process and spare parts, adhere to the requirements in accordance with the original design standard, and into each manufacturing process. In 20 years has accumulated experience and excellent design ability of Japanese engineers guided ruihui highly responsible for Industry and reihui strong executive team, created a batch of well-known auto parts manufacturers, allowing them to reach the high level in same industy,and investment less.


Customer case
 Manufacturing industry; the United States Lear Co, Honda factory, Ford factory, GAC Group, Chongqing Changan, Wuhan Shenlong, BMW Brilliance, FAW Volkswagen, Beijing Hyundai.
And other household appliances manufacturers; such as GREE, Haier, Midea, Chigo Air conditioning.
 hardware manufacturers; such as the United States Southco, are Zhongtai industrial manufacturers success cooperation case.
RUIHUI has been established over the years, the company steady business, products are constantly upgrading, from the original simple roller feeder to NC servo feeding machine, NC 3 in 1 straightener feeder,multi station manipulator, coil handling systems, to meet the market needs of customers, improve work efficiency, reduce the burden of enterprise management personnel, maintenance of production safety and the customer staff made a significant contribution.
At present the company to further develop the market, at the end of 2013, the total investment reached 30 million yuan, plant area of more than 15 thousand square meters, in order to meet the demand on the market and lay a solid foundation after.

Why choose us?
1^st,We have a high level of technical research and development team;
2^nd,We can provide the design and planning of the whole plant to realize the turnkey project;
3^rd, our philosophy: quality is the social responsibility;
4^th,our products have been recognized by the market, in the major automotive OEM, home appliance industry, hardware industry has been applied;
5^th,We have a highly effective after-sales service team and get customer approval
