Colo Intelligent Powder Coating Cup Gun
Hangzhou Feifu Import and Export Co., Ltd.- After-sales Service：12 Moths
- Warranty：12 Moths
- Type：Coating Spray Gun
- Coating：Powder Coating
- Substrate：Steel
- Certification：CE, ISO
Base Info
- Model NO.：COLO-191S-B
- Condition：New
- Application：Any Metal Surface
- Item：Colo Intelligent Powder Coating Cup Gun
- Power Supply：220V,110V
- Product：Colo Intelligent Powder Coating Cup Gun
- Packing Size：69X56X52cm
- Name：Colo Intelligent Powder Coating Cup Gun
- Gross Weight：15kg
- Packaging：Wooden Case,Carton
- Delivery：1-3 Working Days
- Payment：100% in Advance
- Transport Package：Carton
- Specification：123cmx80cmx49cm
- Trademark：COLO
- Origin：China
- HS Code：8424899990
- Production Capacity：800sets,Year
Description

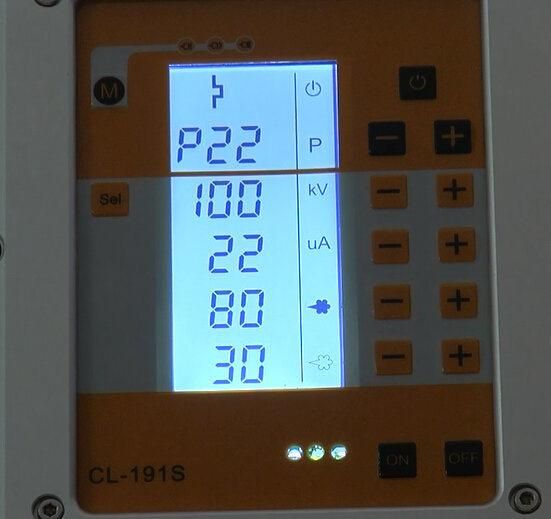

Intelligent Controller
1. Adjusting powder feed and air supply
2. Gun cleaning
3. fluidization of the powder hopper
4. Preset functions: flat coating, corner coating, re-coating.
5. Save 20 different data of coating programs.

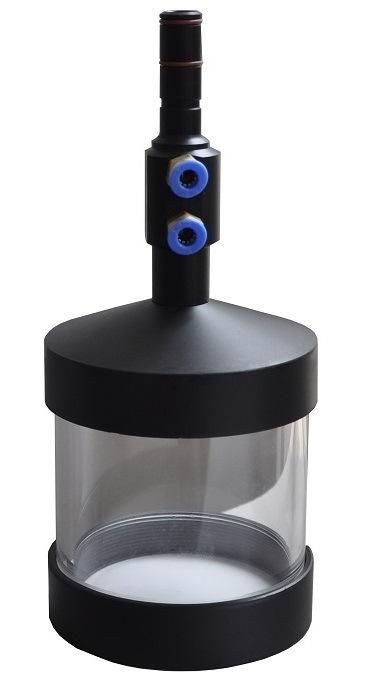

Size: Dia10xHeight10cm,
Capaity: can hold 1 pounds powders

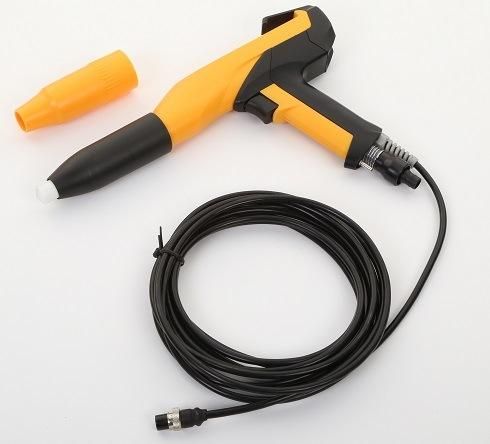

Technical Specifications of Electrostatic Powder Coating Gun
Electrical Data
| MODEL | COLO-191S-B |
| Gun Weight | 500G |
| Rated output voltage | 24VDC |
| Input voltage | -200KV |
| Maximum output current | 180Ua(max) |
| Maximum output voltage | 0-100K(adjustable) |
| Maximum powder injection | 600g/min |
| Polarity | negative |
| Maximum input-air pressure | 10kg/cm |
| Optimum input-air pressure | 6kg/cm |
| Optimum input-air pressure | 4kg/cm |
| Maximum water vapor content or compressed air | 1.4g/N m3 |
| Maximum oil vapor content of compressed air | 0.1ppm |
| Maximum compressed-air consumption | 13.2 m3/h |
| Temperature range in use | -10 ºC+50 ºC |
Advantages of Powder Coating compared with traditional wet painting
1.Tough and durable finish2. Environmental protection, not cause pollution3. High usage of coating material4. Corrosion resistence, aging resistance.5.High efficiency and perfect coating effect.
More details, contact with us:
