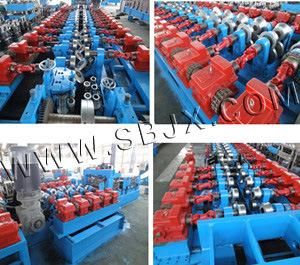

C&Z Purlin Interchangeable Forming Machine by Gearbox and Shaft for Each Station
Zhangjiagang City Saibo Science & Technology Co., Ltd.- Type：Rolling Machine
- Forging Forming Method：Mold Forging
- Power Source：Hydraulic Pressure
- Feature：High Efficiency
- Certification：ISO9001, CE
- Warranty：12 Months
Base Info
- Customized：Customized
- Advantage：Use Widely
- Condition：New
- Color：Blue and Yellow
- Drive Way：by Gear Box
- Transport Package：Sea Packing
- Specification：CE SGS
- Trademark：SAIBO
- Origin：China
- HS Code：84552210
- Production Capacity：300set,Year
Description
Basic Info.
Customized Customized Advantage Use Widely Condition New Color Blue and Yellow Drive Way by Gear Box Transport Package Sea Packing Specification CE SGS Trademark SAIBO Origin China HS Code 84552210 Production Capacity 300set/YearProduct Description
1) Production Characteristic and use:This kind of machine can produce C, Z two profiles, through the exchange side of the roller up and down position to achieve C, Z purlin conversion, just need about half an hour to achieve saving time; This machine also can automatically adjust roller horizontal distance to achieve C or Z purlins of the width with high precision, but also save time to increase production
2) Main Technical Specification:
Thickness: 1.5mm-3.0mm
Speed: 15m/min
Roll station: 18 stations (7 station for straighten)
Main power: 19KW
Hydraulic power: 5.5KW
Control system: PLC Panasonic
Drive: By gearbox and shaft for each station
Automaticity: Semi-automatic / automatic
