• Model NO.：LT-GJ-SK-180-32
• Woking Pressure：254 Kn
• Transport Package：Carton, Wooden Case
• Specification：CE, ISO
• Trademark：Longteng
• Origin：Wuxi, China (Mainland)
• HS Code：8515900000
• Production Capacity：50000 PCS,Year

Basic Info.

Model NO. LT-GJ-SK-180-32 Woking Pressure 254 Kn Transport Package Carton, Wooden Case Specification CE, ISO Trademark Longteng Origin Wuxi, China (Mainland) HS Code 8515900000 Production Capacity 50000 PCS/Year

Product Description

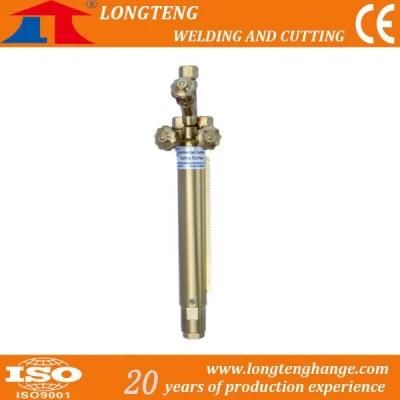

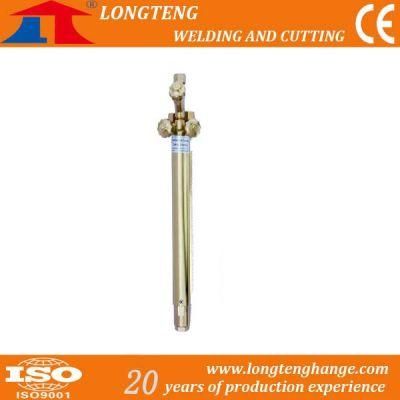

Price cutting torch, fuel gas cutting torch for cnc cutting machine

1)Quick Detail:
1.30mm machine use flame cutting torch
2. For CNC flame cutting machine
3. Balanced pressure structure design cutter to cut the steel plate

2)Description:
1>Structural Features
1. Oxy fuel cutting torch is made of high quality forging brass.
2. Balanced pressure structure design.
3. Flame cutting torch adopts silver solder, which can effectively avoid leakage.

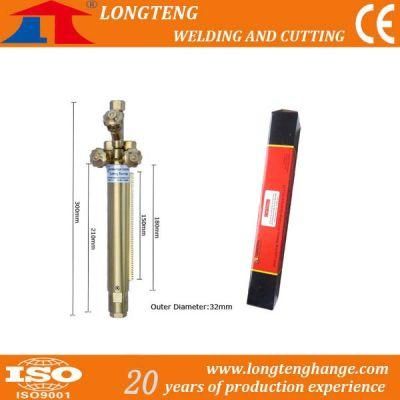

4. O. D. Of the tube: 30 mm and 32mm.
5. The length of the tube: 180mm, 250mm, 300mm, 370mm, 450mm.
6. The gear rack can be installed at 4 different positions with 90 degrees between two positions.
7. Proapne cutting torch is suitable for balanced pressure cutting nozzle/tip with cone of 30 degrees.

3)Applications:
Digital Control Cutting Torch is suitable for use in digital control flame cutting machines, and is used to connect the cutting nozzles/tips, cutting steel and other metal materials. Cutting Torch is the main tool of gas cutting machine, also known as the torch. The fuel gas and oxygen mixture in the cutting torch, in the form of heat and has a preheating flame shape, in center of the preheating flame, the high pressure oxygen flow is injected for flame cutting work.

During the cutting process, an oxy-fuel cutting torch is used to heat metal to its kindling temperature, and each cutting torch has three valves to control the gas, two blue valves for oxygen, one red valve for fuel gas. From Left to Right for each is the preheating oxygen, the cutting oxygen, the fuel gas.

The torch needs to match with the cutting tip for cutting, and the different type of cutting tip uses for cutting different thickness of the steel plate. According to different height of the CNC flame cutting machine, the clients will choose the different length oxy-fuel cutting torch.

4)Competitive Advantage:
1. Professional manufacturer for CNC cutting machine accessories
2. More than 16 years experience
3. Factory direct price and on time delivery
4. Secure ordering and worldwide delivery
5. Sample available
6. Small quantity acceptable
7. OEM workable

Model NO.	Thimble Length(mm)	Cutting Thickness(mm)	Rack Length/Modulus	Acetylene Cutting Tips	Propane Cutting Tips	Inlet connection
GJ	180	300	/	G02#0-#5	G03#0-#5	M16*1.5
GJ	250	300	150/1	G02#0-#5	G03#0-#5	M16*1.5
GJ	300	300	210/1	G02#0-#5	G03#0-#5	M16*1.5
GJ	370	300	210/1	G02#0-#5	G03#0-#5	M16*1.5
GJ	450	300	310/1	G02#0-#5	G03#0-#5	M16*1.5
